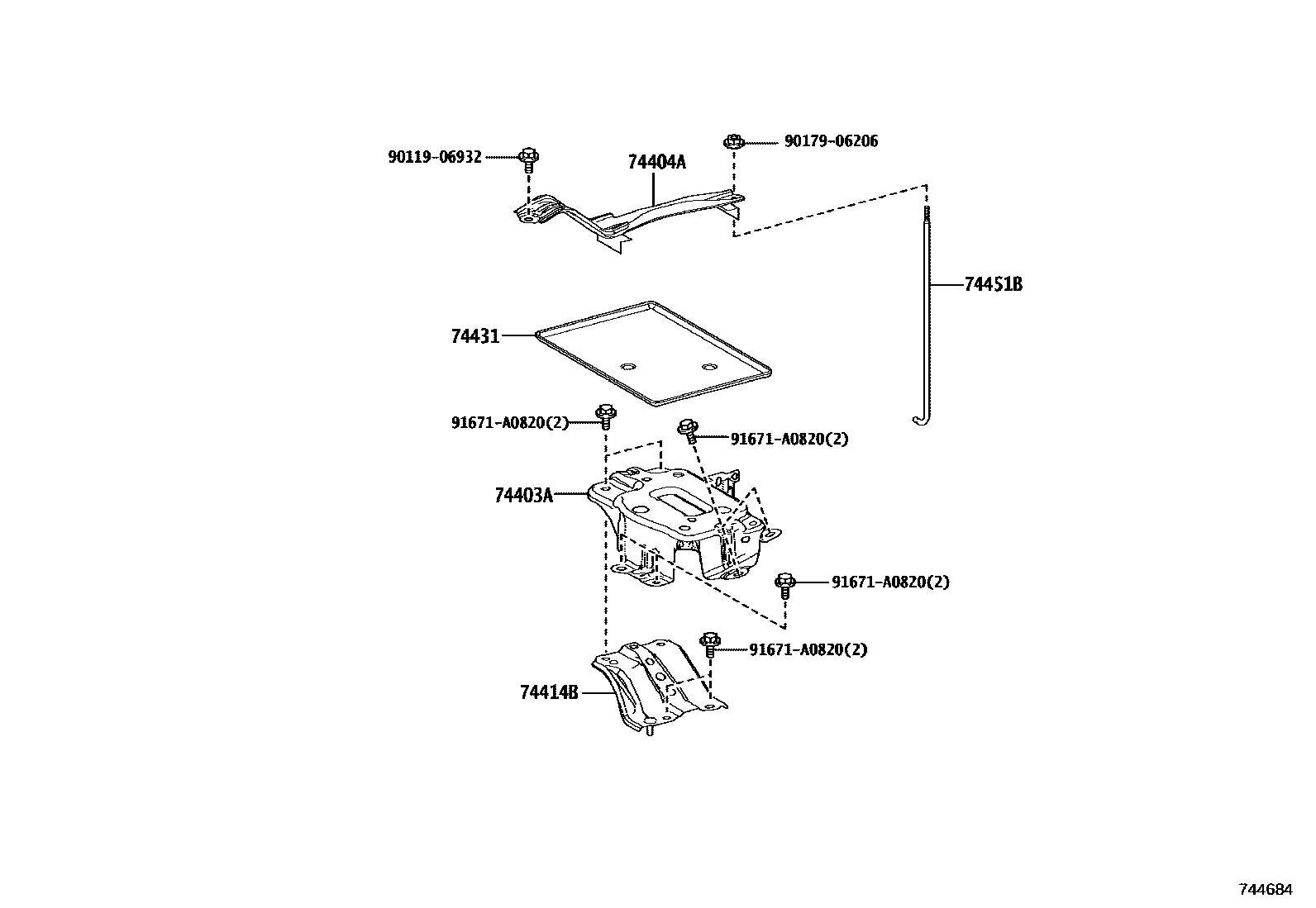

Toyota LEXUS RX450HL/350L — BATTERY CARRIER

0001 1 0002 1

74403ACARRIER SUB-ASSY, BATTERY

main74403-48080iGGL26201712-201908

main74403-48090iGYL26201803-201908

74404ACLAMP SUB-ASSY, BATTERY

main74404-48150iGGL26201712-201908

main74404-48190iGYL26201803-201908

74414BREINFORCEMENT, BATTERY BRACKET

main74414-48020iGGL26,GYL26201712-201908

74431TRAY, BATTERY

main74431-52040iGGL26201712-201908

74451BBOLT, BATTERY CLAMP

main74452-48010iGGL26201712-201908

9011906932

main90119-06932

9017906206

main90179-06206

91671A0820

main91671-A0820

8 parts on this diagram · 2 diagrams in section
