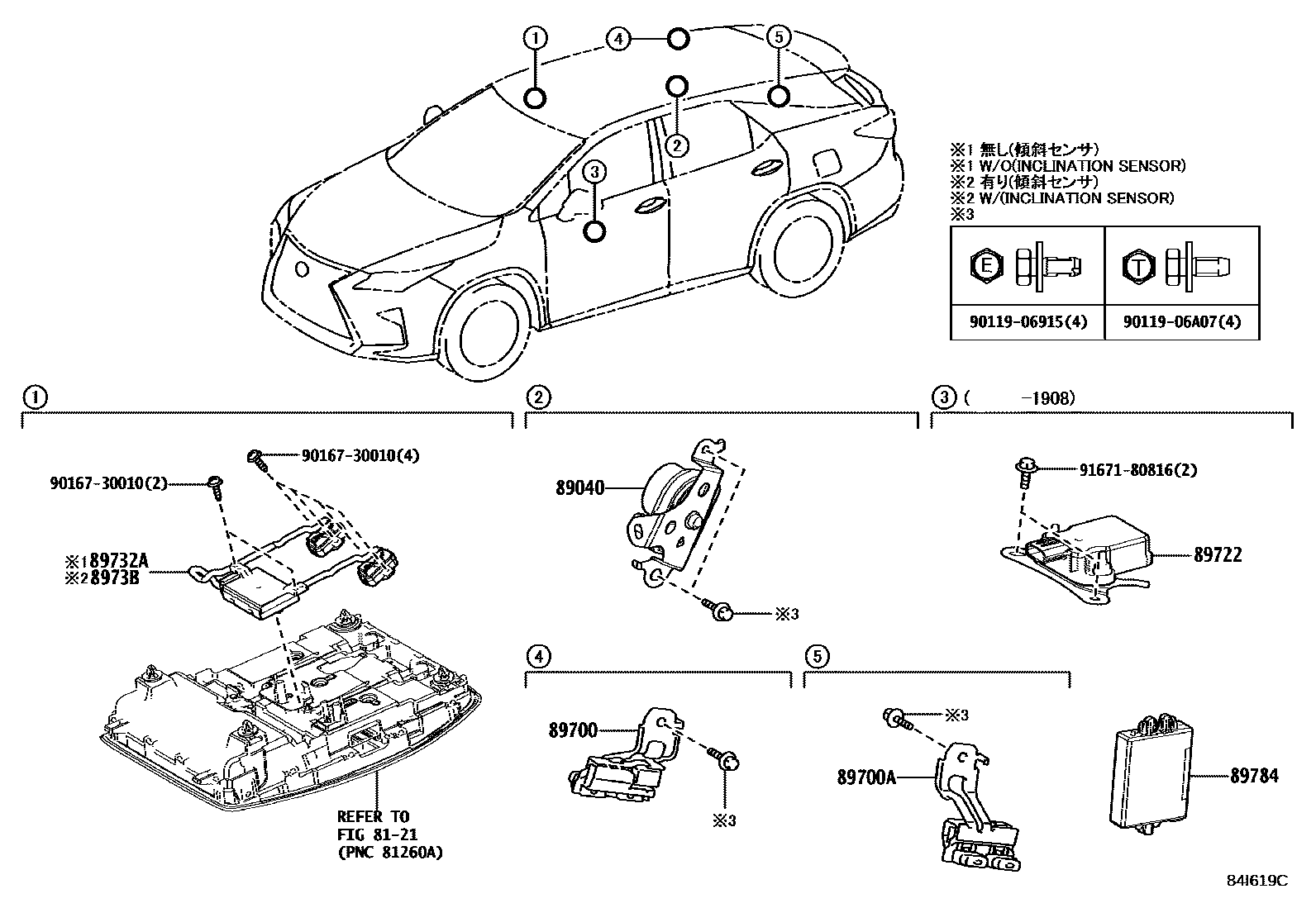

Toyota LEXUS RX450HL/350L — ANTI-THEFT DEVICE

8121

89040SIREN ASSY, THEFT WARNING

main89040-48070iGGL26,GYL26201712-201908

89700SENSOR ASSY, GLASS BREAKAGE, RH

main89700-48010iGYL26..RHD201803-201908

89700ASENSOR ASSY, GLASS BREAKAGE, LH

main89700-48020iGYL26..RHD201803-201908

89722SENSOR, THEFT WARNING TILT

main897D0-48010iGGL26201712-201908

89732ASENSOR, THEFT WARNING ULTRASONIC

main89732-78020iGGL26,GYL26201712-201908

8973BSENSOR, THEFT WARNING ULTRASONIC & TILT

main8973B-78020iGGL26,GYL26201908

89784COMPUTER, IMMOBILIZER CODE

main89784-33020iGGL26,GYL26201908

main89784-47030iGGL26,GYL26201712-201908

9011906915

main90119-06915

9011906A07

main90119-06A07

9016730010

main90167-30010

9167180816

main91671-80816

12 parts on this diagram · 1 diagram in section
