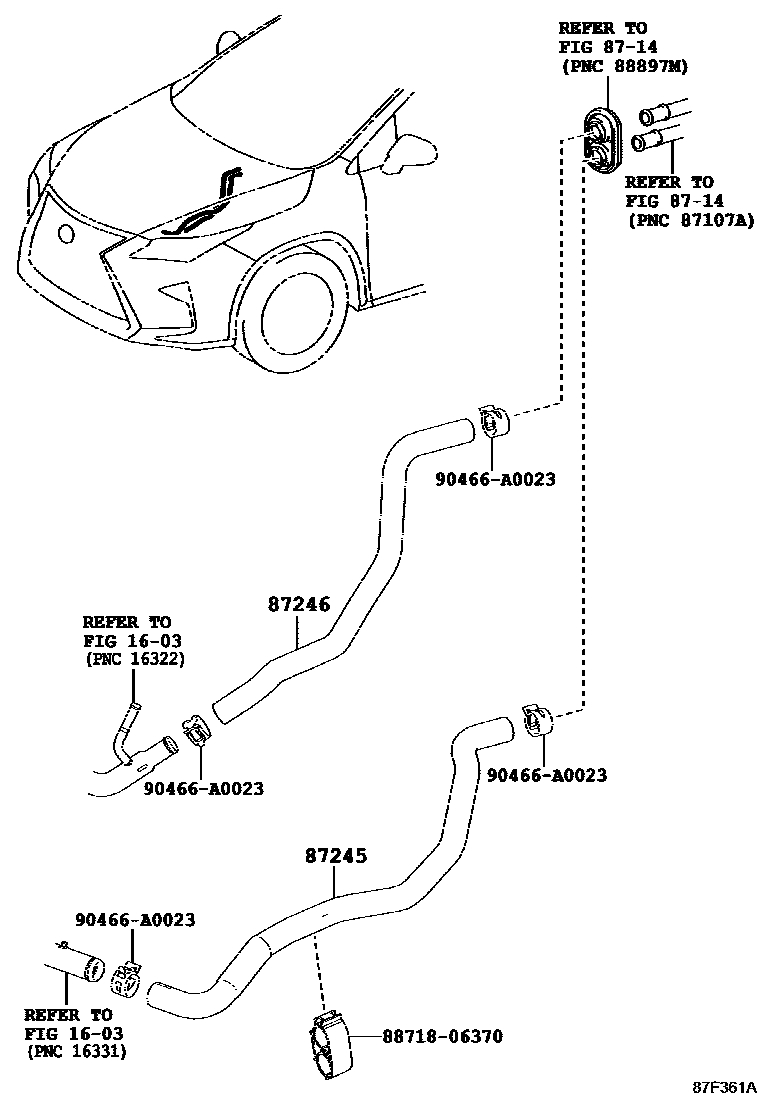

Toyota LEXUS RX450H/350(NAP — HEATING & AIR CONDITIONING - WATER PIPING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-0E340i201510-201909

87246HOSE, HEATER WATER, OUTLET

main87245-0E350i201510-201909

main87245-0E360i201510-201608

8871806370PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06370

90466A0023

main90466-A0023

6 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - WATER PIPING for Toyota LEXUS RX450H/350(NAP

This section contains 12 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota LEXUS RX450H/350(NAP. Key components include: RADIATOR & WATER OUTLET, HEATING & AIR CONDITIONING - COOLER UNIT, ACCESSORY ASSY, HEATER, HOSE, HEATER WATER, INLET, HOSE, HEATER WATER, INLET A.
