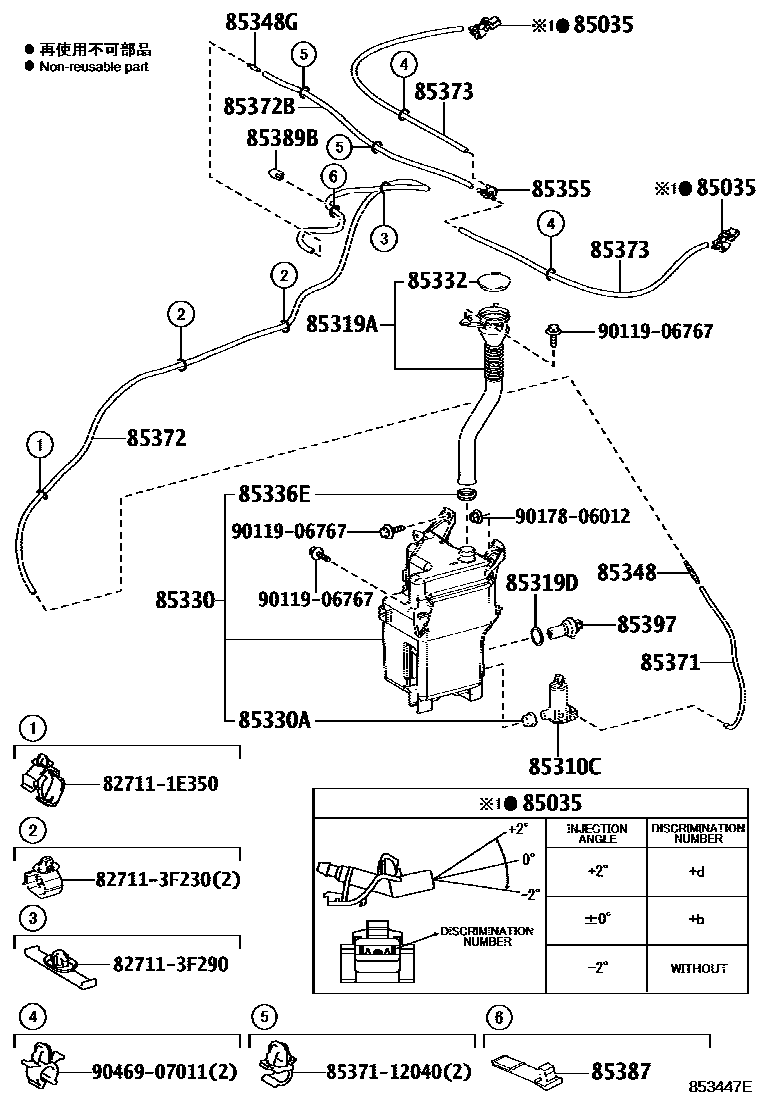

Toyota LEXUS RX450H/350(JPP — WINDSHIELD WASHER

0001 1W/O(HEADLAMP CLEANER) 0002 1W/O(HEADLAMP CLEANER) 0003 1W(HEADLAMP CLEANER) 0004 1W(HEADLAMP CLEANER)

85035NOZZLE SUB-ASSY, WASHER

main85381-30220iGGL25,GYL25201509-201908

ANGLE 0

sub85381-0K070

main85381-30230iGGL25,GYL25201509-201908

ANGLE -2

sub85381-0K080

main85381-30240iGGL25,GYL25201509-201908

ANGLE +2

85310CMOTOR & PUMP ASSY, WASHER

main85330-0E030iGGL25,GYL25201509-201706

sub85330-47100

main85330-47100iGGL25,GYL25201706-201908

85319AHOSE, INLET

main85316-48260iGGL25,GYL25201908

main85316-48270iGGL25,GYL25201509-201908

85319DPACKING, FRONT WASHER

main85319-33230iGGL25,GYL25201509-201908

85330JAR ASSY, WINDSHIELD WASHER

main85315-48260iGGL25,GYL25201908

main85315-48280iGGL25,GYL25201509-201908

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iGGL25,GYL25201509-201908

85332CAP, WINDSHIELD WASHER JAR

main85316-48280iGGL25,GYL25201509-201908

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320iGGL25,GYL25201509-201908

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85385-48320iGGL25,GYL25201509-201908

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260iGGL25,GYL25201509-201908

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iGGL25,GYL25201509-201908

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iGGL25,GYL25..A201908

L=1450(*H,L=330),COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main90099-33080iGGL25,GYL25..A201908

L=1450(*H,L=330),HEADLAMP-LED TRIPLE BEAM TYPE

main90099-33080iGGL25,GYL25..A201908

L=1450(*H,L=330),HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)

main90099-33080iGGL25,GYL25..A201908

L=1450(*H,L=330)

main90099-33080iGGL25,GYL25..A201908

L=1450(*H,L=330),COLD AREA SPEC

main90099-33080iGGL25,GYL25..A201908

L=1450(*H,L=330),COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE

main90099-33080iGGL25,GYL25201509-201908

L=1450(*H,L=320)

main90099-33080iGGL25,GYL25201509-201908

L=1450(*H,L=320),COLD AREA SPEC

main90099-33080iGGL25,GYL25201509-201908

L=1450(*H,L=320),COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE

main90099-33080iGGL25,GYL25201509-201908

L=1450(*H,L=320),HEADLAMP-LED TRIPLE BEAM TYPE

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803iGGL25,GYL25201509-201908

L=1920

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iGGL25,GYL25201509-201908

L=1450(*H,L=540)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iGGL25,GYL25201509-201908

L=1450(*H,L=330)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-48470iGGL25,GYL25201509-201908

85389BPROTECTOR, WINDSHIELD WASHER

main85389-78020iGGL25,GYL25201509-201908

85397SWITCH ASSY,LEVEL WARNING

main85397-52100iGGL25,GYL25201509-201908

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F230

827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F290

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9011906767

main90119-06767

9017806012

main90178-06012

9046907011

main90469-07011

25 parts on this diagram · 4 diagrams in section
