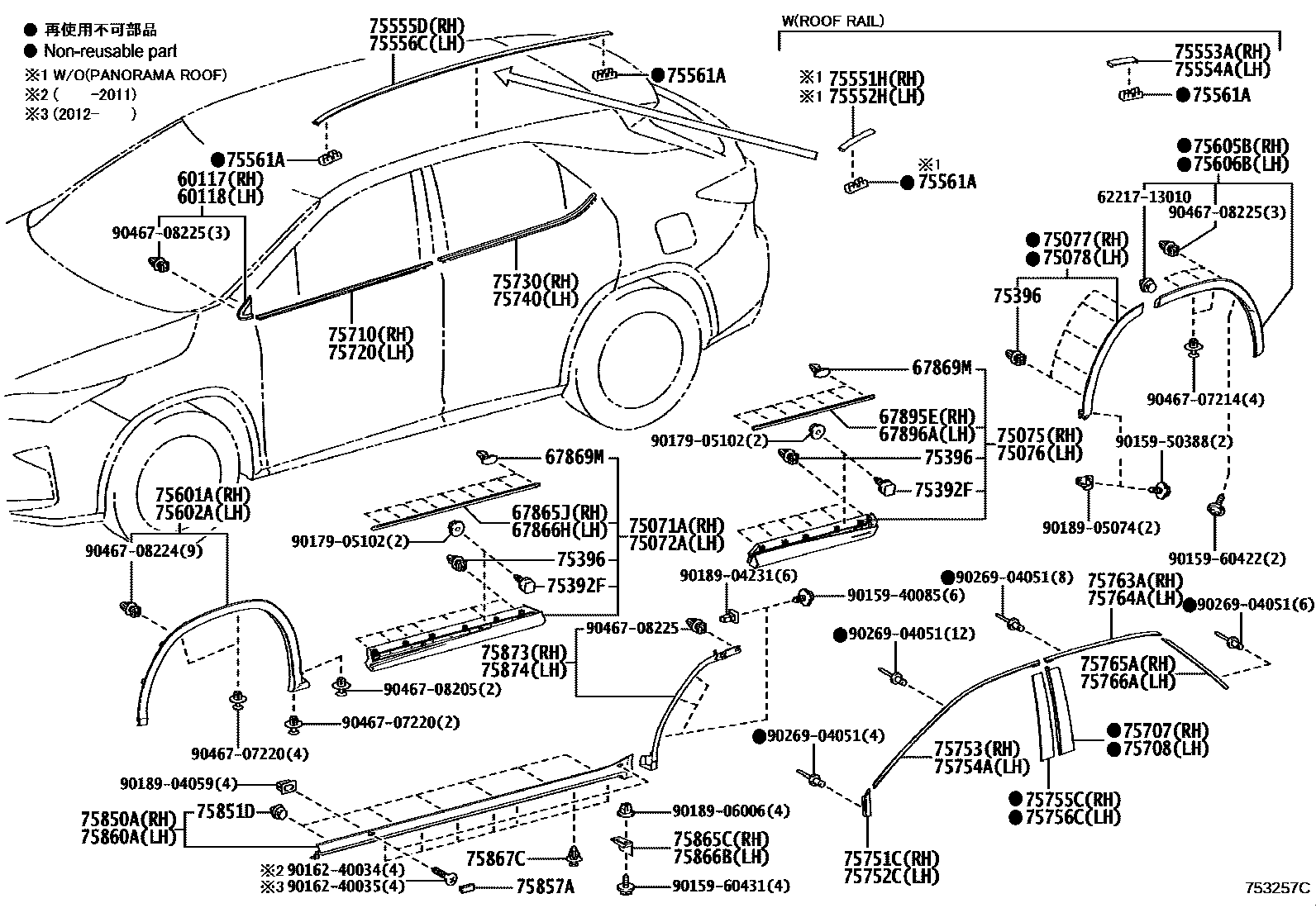

Toyota LEXUS RX450H/350(JPP — SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
67865JWEATHERSTRIP, FRONT DOOR, NO.3 RH
67866HWEATHERSTRIP, FRONT DOOR, NO.3 LH
67869MCLIP, DOOR WEATHERSTRIP
67895EWEATHERSTRIP, REAR DOOR, NO.3 RH
67896AWEATHERSTRIP, REAR DOOR, NO.3 LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75077MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH
NO PAINT REQ.
75078MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH
NO PAINT REQ.
75392FRETAINER, OUTSIDE MOULDING
75396CLIP, OUTSIDE MOULDING, NO.2
75551HMOULDING, ROOF DRIP SIDE, RH
ROOF RAIL-WITH,SONIC QUARTZ,085
SONIC QUARTZ,085
ROOF RAIL-WITH,MERCURY GRAY MC.,1H9
MERCURY GRAY MC.,1H9
ROOF RAIL-WITH,SONIC TITANIUM,1J7
SONIC TITANIUM,1J7
PLATINUM SILVER ME.,1J4
ROOF RAIL-WITH,PLATINUM SILVER ME.,1J4
SONIC CHROME,1L1
ROOF RAIL-WITH,SONIC CHROME,1L1
SONIC IRIDIUM,1L2
ROOF RAIL-WITH,SONIC IRIDIUM,1L2
BLACK,212
ROOF RAIL-WITH,BLACK,212
GRAPHITE BLACK GF.,223
ROOF RAIL-WITH,GRAPHITE BLACK GF.,223
ROOF RAIL-WITH,RED MC.CS.,3R1
RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
ROOF RAIL-WITH,SLEEK ECRU ME.,4U7
AMBER CS.,4X2
ROOF RAIL-WITH,AMBER CS.,4X2
ROOF RAIL-WITH,ICE ECRU M.M.,4X8
ICE ECRU M.M.,4X8
TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH,TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH,DEEP BLUE MC.,8X5
DEEP BLUE MC.,8X5
75552HMOULDING, ROOF DRIP SIDE, LH
SONIC QUARTZ,085
ROOF RAIL-WITH,SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
ROOF RAIL-WITH,MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
ROOF RAIL-WITH,SONIC TITANIUM,1J7
PLATINUM SILVER ME.,1J4
ROOF RAIL-WITH,PLATINUM SILVER ME.,1J4
SONIC CHROME,1L1
ROOF RAIL-WITH,SONIC CHROME,1L1
SONIC IRIDIUM,1L2
ROOF RAIL-WITH,SONIC IRIDIUM,1L2
ROOF RAIL-WITH,BLACK,212
BLACK,212
ROOF RAIL-WITH,GRAPHITE BLACK GF.,223
GRAPHITE BLACK GF.,223
ROOF RAIL-WITH,RED MC.CS.,3R1
RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
ROOF RAIL-WITH,SLEEK ECRU ME.,4U7
AMBER CS.,4X2
ROOF RAIL-WITH,AMBER CS.,4X2
ICE ECRU M.M.,4X8
ROOF RAIL-WITH,ICE ECRU M.M.,4X8
TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH,TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH,DEEP BLUE MC.,8X5
DEEP BLUE MC.,8X5
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
ROOF RAIL-WITH,SONIC QUARTZ,085
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),SONIC QUARTZ,085
SONIC QUARTZ,085
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),MERCURY GRAY MC.,1H9
ROOF RAIL-WITH,MERCURY GRAY MC.,1H9
MERCURY GRAY MC.,1H9
ROOF RAIL-WITH,SONIC TITANIUM,1J7
SONIC TITANIUM,1J7
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),SONIC TITANIUM,1J7
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),PLATINUM SILVER ME.,1J4
PLATINUM SILVER ME.,1J4
ROOF RAIL-WITH,PLATINUM SILVER ME.,1J4
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),SONIC CHROME,1L1
ROOF RAIL-WITH,SONIC CHROME,1L1
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
ROOF RAIL-WITH,SONIC IRIDIUM,1L2
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),SONIC IRIDIUM,1L2
BLACK,212
ROOF RAIL-WITH,BLACK,212
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),BLACK,212
ROOF RAIL-WITH,GRAPHITE BLACK GF.,223
GRAPHITE BLACK GF.,223
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
ROOF RAIL-WITH,RED MC.CS.,3R1
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
ROOF RAIL-WITH,SLEEK ECRU ME.,4U7
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),SLEEK ECRU ME.,4U7
ROOF RAIL-WITH,AMBER CS.,4X2
AMBER CS.,4X2
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),AMBER CS.,4X2
ICE ECRU M.M.,4X8
ROOF RAIL-WITH,ICE ECRU M.M.,4X8
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),ICE ECRU M.M.,4X8
TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH,TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),DEEP BLUE MC.,8X5
ROOF RAIL-WITH,DEEP BLUE MC.,8X5
DEEP BLUE MC.,8X5
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
ROOF RAIL-WITH,SONIC QUARTZ,085
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),SONIC QUARTZ,085
SONIC QUARTZ,085
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),MERCURY GRAY MC.,1H9
ROOF RAIL-WITH,MERCURY GRAY MC.,1H9
MERCURY GRAY MC.,1H9
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),SONIC TITANIUM,1J7
ROOF RAIL-WITH,SONIC TITANIUM,1J7
SONIC TITANIUM,1J7
PLATINUM SILVER ME.,1J4
ROOF RAIL-WITH,PLATINUM SILVER ME.,1J4
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),PLATINUM SILVER ME.,1J4
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),SONIC CHROME,1L1
ROOF RAIL-WITH,SONIC CHROME,1L1
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
ROOF RAIL-WITH,SONIC IRIDIUM,1L2
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),SONIC IRIDIUM,1L2
BLACK,212
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),BLACK,212
ROOF RAIL-WITH,BLACK,212
GRAPHITE BLACK GF.,223
ROOF RAIL-WITH,GRAPHITE BLACK GF.,223
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),GRAPHITE BLACK GF.,223
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),RED MC.CS.,3R1
ROOF RAIL-WITH,RED MC.CS.,3R1
RED MC.CS.,3R1
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),SLEEK ECRU ME.,4U7
ROOF RAIL-WITH,SLEEK ECRU ME.,4U7
SLEEK ECRU ME.,4U7
ROOF RAIL-WITH,AMBER CS.,4X2
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),AMBER CS.,4X2
AMBER CS.,4X2
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),ICE ECRU M.M.,4X8
ICE ECRU M.M.,4X8
ROOF RAIL-WITH,ICE ECRU M.M.,4X8
TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH,TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),TERRANE KHAKI M.M.,6X4
ROOF RAIL-WITH,DEEP BLUE MC.,8X5
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF),DEEP BLUE MC.,8X5
DEEP BLUE MC.,8X5
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
ROOF RAIL-WITH&MOON ROOF-WITH(PANORAMA ROOF)
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
NO PAINT REQ.
NO PAINT REQ.
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
NO PAINT REQ.
NO PAINT REQ.
75605BMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
NO PAINT REQ.
NO PAINT REQ.
75606BMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
NO PAINT REQ.
NO PAINT REQ.
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
75851DCLIP(FOR ROCKER PANEL MOULDING SET)
75857ACOVER, ROCKER PANEL MOULDING, RH
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5
75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6
75867CCLIP, ROCKER PANEL MOULDING
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
6221713010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-13010
9015940085
main90159-40085
9015950388
main90159-50388
9015960422
main90159-60422
9015960431
main90159-60431
9016240034
main90162-40034
9016240035
main90162-40035
9017905102
main90179-05102
9018904059
main90189-04059
9018904231
main90189-04231
9018905074
main90189-05074
9018906006
main90189-06006
9026904051
main90269-04051
9046707214
main90467-07214
9046707220
main90467-07220
9046708205
main90467-08205
9046708224
main90467-08224
9046708225
main90467-08225
69 parts on this diagram · 1 diagram in section
