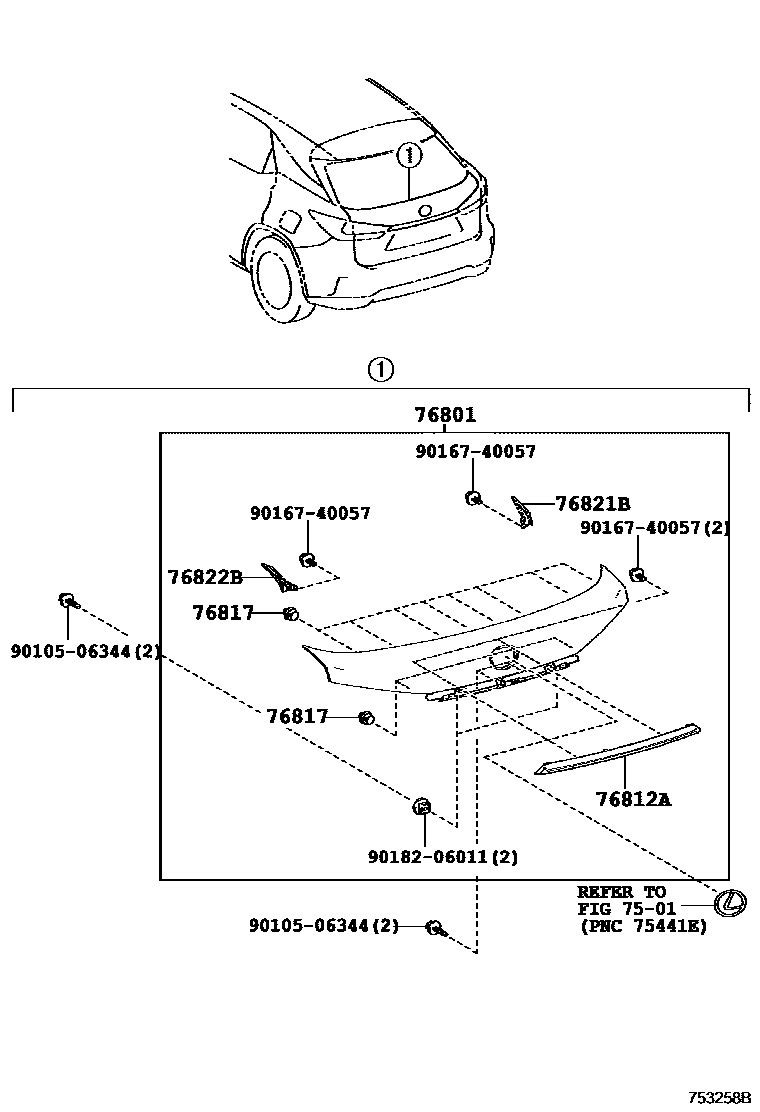

Toyota LEXUS RX450H/350(JPP — REAR MOULDING
7501
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
WHITE NOVA GF.,083
PLATED,SONIC QUARTZ,085
SONIC QUARTZ,085
PLATED,MERCURY GRAY MC.,1H9
PLATED,SONIC TITANIUM,1J7
SONIC TITANIUM,1J7
PLATINUM SILVER ME.,1J4
PLATED,SONIC CHROME,1L1
PLATED,SONIC IRIDIUM,1L2
PLATED,BLACK,212
BLACK,212
GRAPHITE BLACK GF.,223
PLATED,GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
PLATED,RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
PLATED,AMBER CS.,4X2
AMBER CS.,4X2
PLATED,ICE ECRU M.M.,4X8
PLATED,TERRANE KHAKI M.M.,6X4
PLATED,DEEP BLUE MC.,8X5
DEEP BLUE MC.,8X5
HEAT BLUE CONTRAST LAYERI,8X1
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH
76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH
9010506344
main90105-06344
9016740057
main90167-40057
9018206011
main90182-06011
9 parts on this diagram · 1 diagram in section
