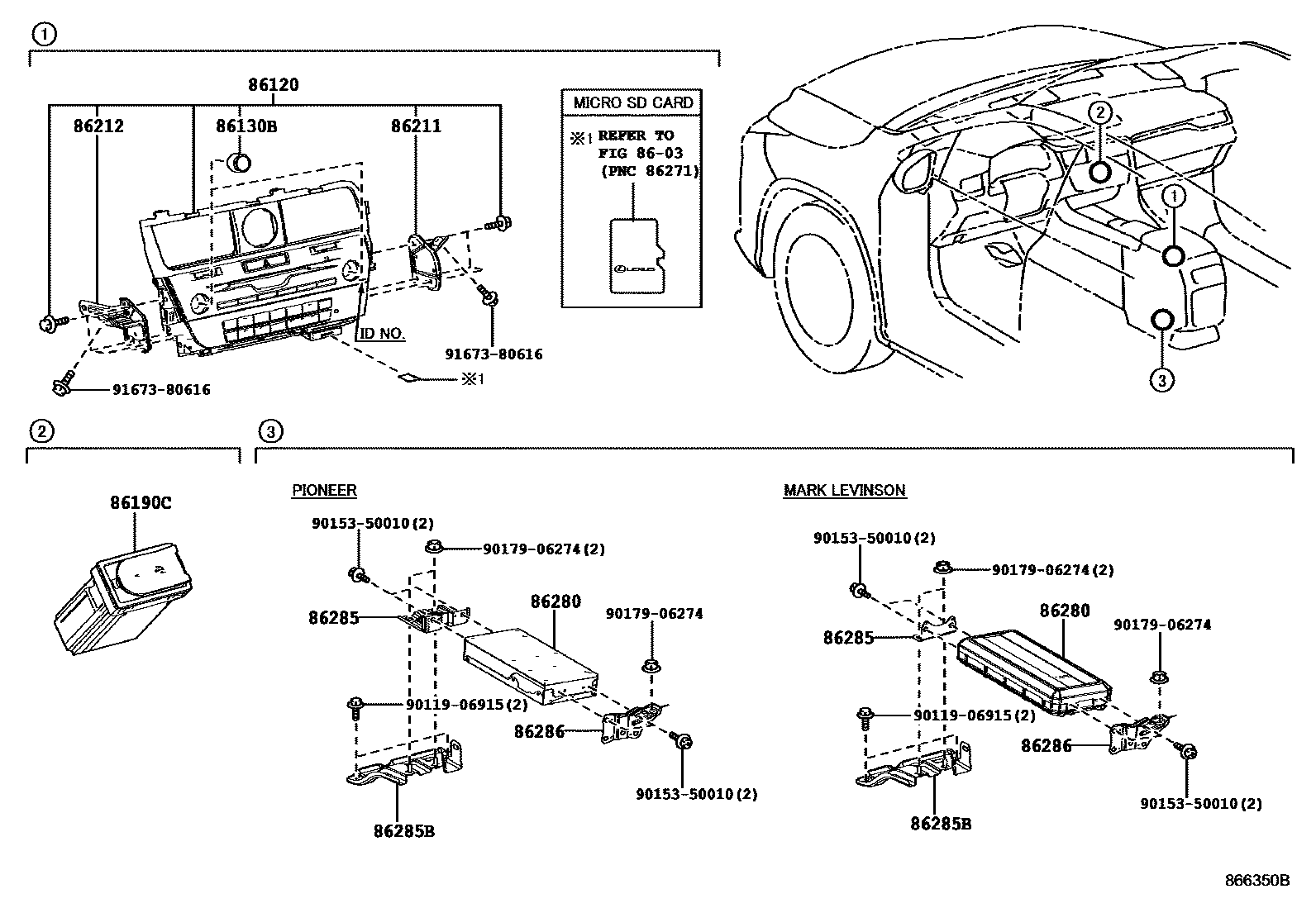

Toyota LEXUS RX450H/350(JPP — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

8603

86120RECEIVER ASSY, RADIO

main86120-48R30iGGL25,GYL25..A201908-202209

PIONEER

main86120-48W90iGGL25..B202107-202209

PANASONIC

main86130-48370iGGL25,GYL25..A201509-201608

FUJITSU TEN,ID100542

main86130-48C90iGGL25,GYL25..A201608-201712

FUJITSU TEN,ID100705

main86130-48N00iGGL25,GYL25..A201712-201908

FUJITSU TEN

main86804-48890iGGL25..B201509-201608

PIONEER,ID=P11226

main86804-48A70iGGL25..B201608-201712

PIONEER,ID=P11511

main86804-48N30iGGL25..B201712-201908

PIONEER

86130BKNOB, RECEIVER SWITCH

main90010-22112iGGL25..B201509-201908

main90010-22133iGGL25..B201908-202209

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-24030iGGL25,GYL25201908

main86190-78010iGGL25,GYL25201509-201908

86211BRACKET, RADIO, NO.1

main86211-48200iGGL25,GYL25201509-201908

main86211-48260iGGL25,GYL25201908

86212BRACKET, RADIO, NO.2

main86212-48200iGGL25,GYL25201509-201908

main86212-48250iGGL25,GYL25201908

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-48230iGGL25,GYL25201509-201710

sub86280-48231

main86280-48231iGGL25,GYL25201711-201908

main86280-48320iGGL25,GYL25201908

86285BRACKET, AMPLIFIER, NO.1

main86285-48120iGGL25,GYL25201509-201908

main86285-48180iGGL25,GYL25201908

86285BBRACKET, AMPLIFIER, NO.1

main86285-48150iGGL25,GYL25201509-201908

86286BRACKET, AMPLIFIER, NO.2

main86286-48100iGGL25,GYL25201509-201908

main86286-48110iGGL25,GYL25201908

9011906915

main90119-06915

9015350010

main90153-50010

9017906274

main90179-06274

9167380616

main91673-80616

14 parts on this diagram · 3 diagrams in section
