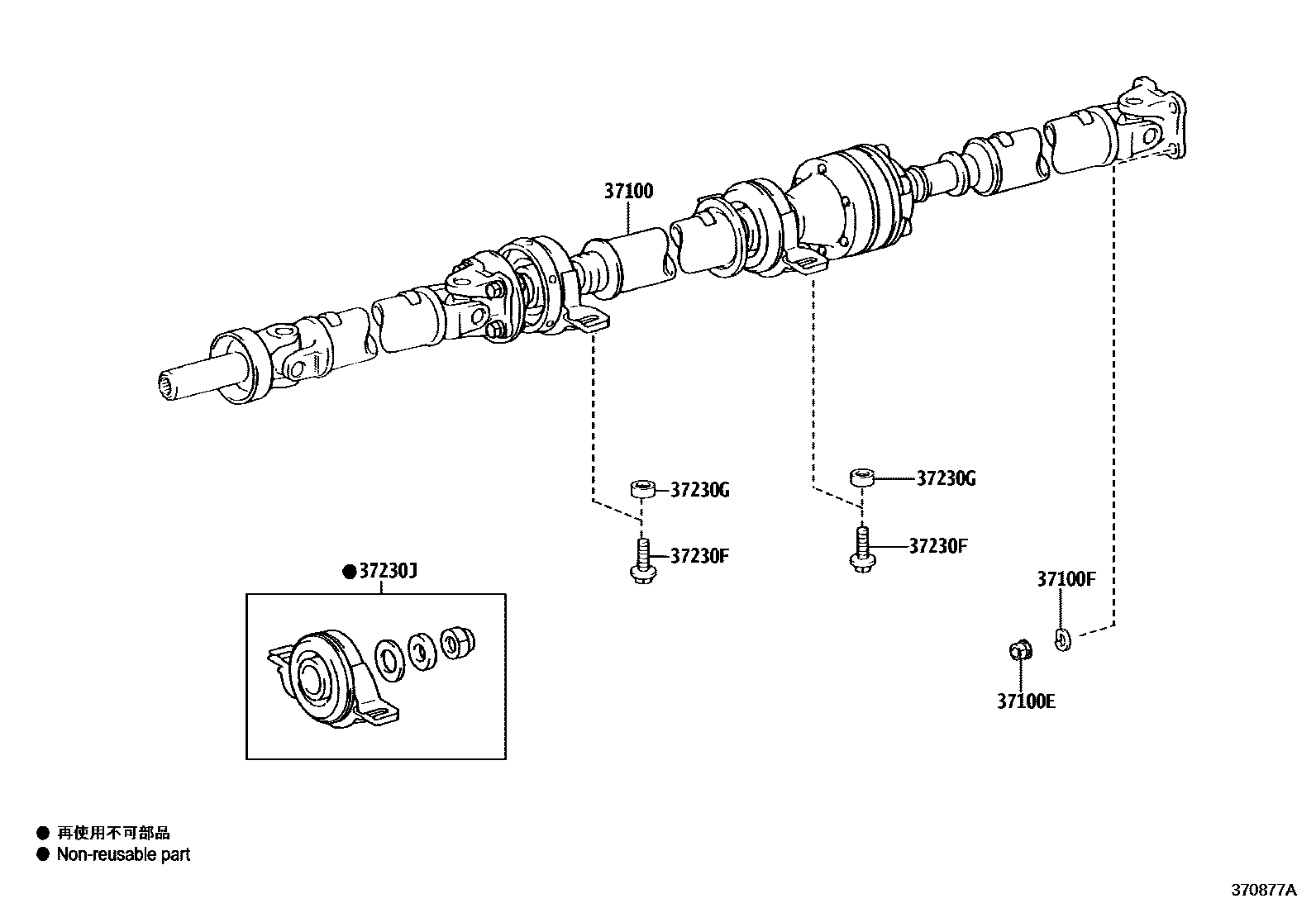

Toyota LEXUS RX450H/350(JPP — PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37100ENUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100FWASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
T=4.5
T=6.5
T=9.0
T=11.0
T=13.5
T=3.2
T=15.5
T=17.5
37230JBEARING ASSY, CENTER SUPPORT, NO.2
REAR SIDE
FRONT SIDE
6 parts on this diagram · 1 diagram in section
