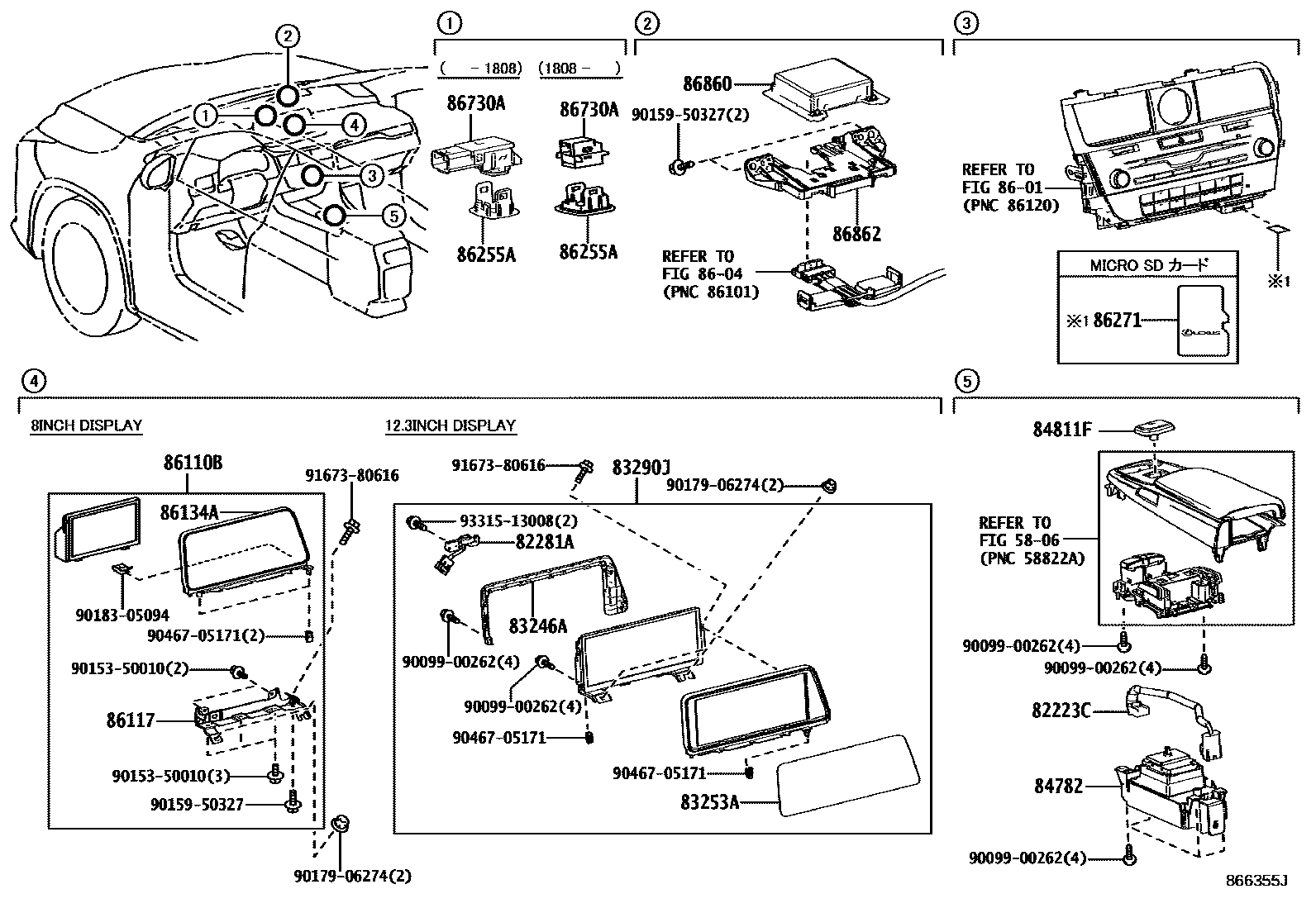

Toyota LEXUS RX450H/350(JPP — NAVIGATION & FRONT MONITOR DISPLAY
5806
82223CWIRE, SWITCH
82281AWIRE, GAUGE
EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
83246APANEL, MULTI INFORMATION DISPLAY
EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
83253AGLASS, ACCESSORY METER
EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
83290JMETER ASSY, ACCESSORY
84811FKNOB, SWITCH
8601
8604
86110BMULTI-DISPLAY ASSY
PIONEER,EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
sub86110-48561
PIONEER
PIONEER,EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
DENSO,BLACK,TRIM00,04,2#,3#,5#,6#,9#
DENSO,BLACK,TRIM02,1#,2#,5#
DENSO,NOBLE BROWN,TRIM02,4#
DENSO,NOBLE BROWN,TRIM00,04,4#
86117BRACKET, MULTI-DISPLAY CONTROLLER, A
EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
86134APARTS, MULTI-DISPLAY
EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY)
86255ACASE, MICROPHONE, NO.1
ECRU,TRIM0#,5#
ECRU,TRIM00,01,02,03,04,5#,6#
MOON STONE,TRIM2#,4#
MOON STONE,TRIM20,21,22,23,24,4#
BLACK,TRIM05,06,25,26,3#
ECRU,TRIM0#,5#
ECRU,TRIM0#,5#,6#
MOON STONE,TRIM20,23,24,29,4#
MOON STONE,TRIM2#,4#
MOON STONE,TRIM20,24,4#
MOON STONE,TRIM1#,2#,4#
BLACK,TRIM25,26,3#
BLACK,TRIM25,26,27,28,3#,9#
86860ANTENNA ASSY, NAVIGATION
86862BRACKET, NAVIGATION ANTENNA
9009900262
main90099-00262
9015350010
main90153-50010
9015950327
main90159-50327
9017906274
main90179-06274
9018305094
main90183-05094
9046705171
main90467-05171
9167380616
main91673-80616
9331513008
main93315-13008
26 parts on this diagram · 3 diagrams in section
