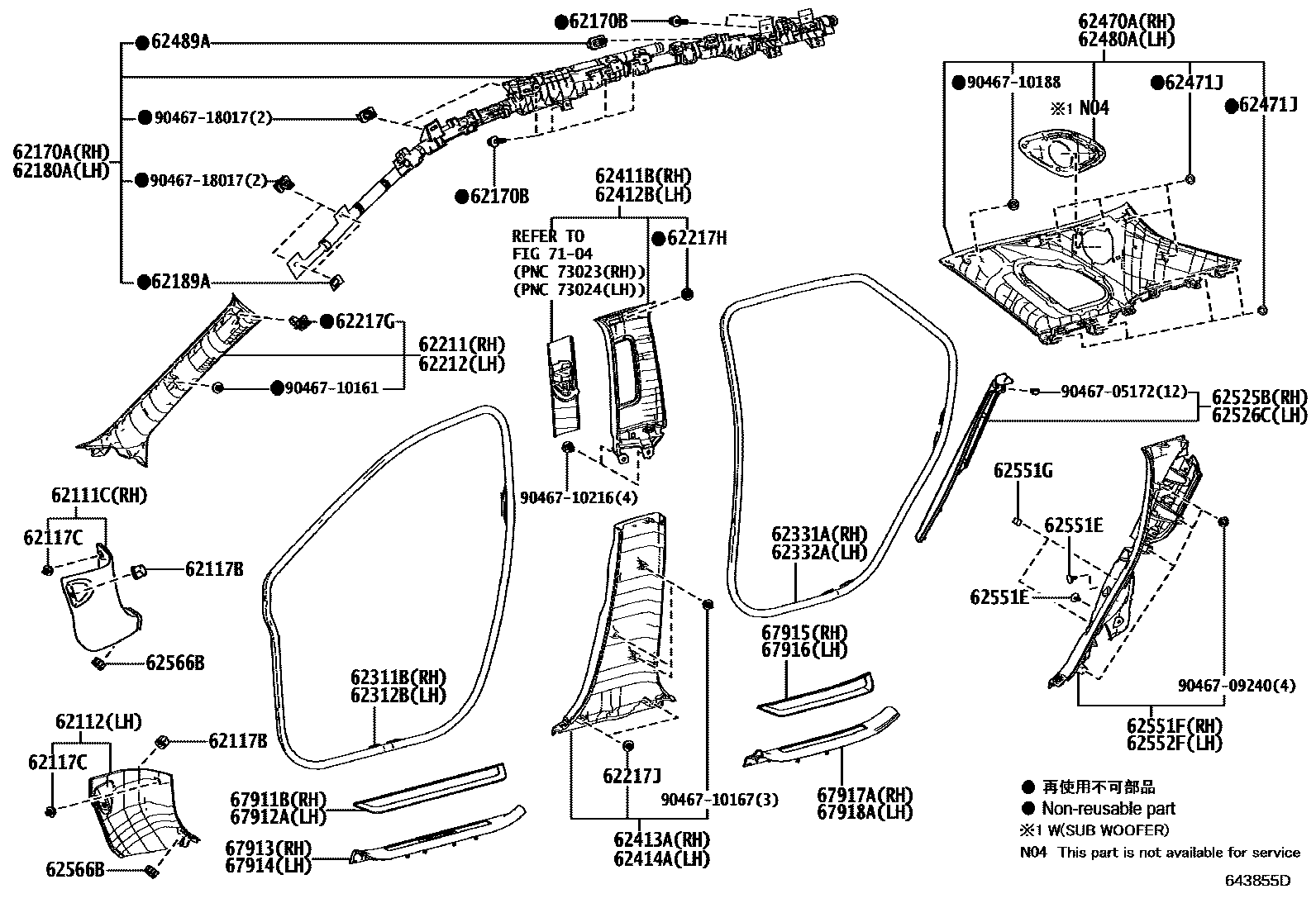

Toyota LEXUS RX450H/350(JPP — INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM0#,5#
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
NOBLE BROWN,TRIM00,04
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM02
62112BOARD, COWL SIDE TRIM, LH
BLACK,TRIM2#,4#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
BLACK,TRIM2#,3#,4#
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM2#,4#
BLACK,TRIM0#,1#,2#,4#,5#
NOBLE BROWN,TRIM02
NOBLE BROWN,TRIM00,04
NOBLE BROWN,TRIM0#,5#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
ECRU,TRIM0#,5#
ECRU,TRIM0#,5#,6#
MOON STONE,TRIM1#,2#,4#
MOON STONE,TRIM2#,4#
MOON STONE,TRIM20,24,4#
MOON STONE,TRIM20,23,24,29,4#
BLACK,TRIM25,26,3#
BLACK,TRIM25,26,27,28,3#,9#
62212GARNISH, FRONT PILLAR, LH
ECRU,TRIM0#,5#
ECRU,TRIM0#,5#,6#
MOON STONE,TRIM1#,2#,4#
MOON STONE,TRIM2#,4#
MOON STONE,TRIM20,24,4#
MOON STONE,TRIM20,23,24,29,4#
BLACK,TRIM25,26,27,28,3#,9#
BLACK,TRIM25,26,3#
62217GCLIP, FRONT PILLAR GARNISH
62217HCLIP, CENTER PILLER GARNISH
62217JCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
62412BGARNISH, CENTER PILLAR, UPPER LH
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM2#,4#,5#
BLACK,TRIM2#,3#,4#,5#,6#,9#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM0#
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM2#,4#
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM2#,4#,5#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM0#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
ECRU,TRIM0#,5#
ECRU,TRIM0#,5#,6#
MOON STONE,TRIM20,24,4#
MOON STONE,TRIM2#,4#
MOON STONE,TRIM1#,2#,4#
MOON STONE,TRIM20,23,24,29,4#
BLACK,TRIM25,26,27,28,3#,9#
BLACK,TRIM25,26,3#
62471JCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
ECRU,TRIM0#,5#
ECRU,TRIM0#,5#,6#
MOON STONE,TRIM20,23,24,29,4#
MOON STONE,TRIM2#,4#
MOON STONE,TRIM20,24,4#
MOON STONE,TRIM1#,2#,4#
BLACK,TRIM25,26,27,28,3#,9#
BLACK,TRIM25,26,3#
62489ACLIP, ROOF SIDE INNER GARNISH
62525BPAD, QUARTER TRIM, UPPER RH
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#,5#
NOBLE BROWN,TRIM00,04
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM0#
BLACK,TRIM0#,1#,2#,5#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
62526CPAD, QUARTER TRIM, UPPER LH
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#,5#
NOBLE BROWN,TRIM0#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,04
BLACK,TRIM0#,1#,2#,5#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,1#,2#,5#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
BLACK,TRIM2#,4#,5#
NOBLE BROWN,TRIM0#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,04
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
BLACK,TRIM2#,3#,4#
NOBLE BROWN,TRIM00,04
NOBLE BROWN,TRIM0#,5#
62551GCLIP
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,1#,2#,5#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
BLACK,TRIM2#,4#,5#
NOBLE BROWN,TRIM0#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,04
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
BLACK,TRIM2#,3#,4#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
NOBLE BROWN,TRIM00,04
NOBLE BROWN,TRIM0#,5#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM0#,2#,4#,5#,6#
BLACK,TRIM2#,4#
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#
NOBLE BROWN,TRIM02
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM04
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM2#,4#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,4#,5#,6#
NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM02
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM0#,5#,6#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM2#,4#
BLACK,TRIM05,06,2#,3#,4#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
NOBLE BROWN,TRIM02
NOBLE BROWN,TRIM00,04
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,1#,2#,4#,5#
NOBLE BROWN,TRIM02
NOBLE BROWN,TRIM00,04
7104
9046705172
main90467-05172
9046709240
main90467-09240
9046710161
main90467-10161
9046710167
main90467-10167
9046710188
main90467-10188
9046710216
main90467-10216
9046718017
main90467-18017
48 parts on this diagram · 2 diagrams in section
