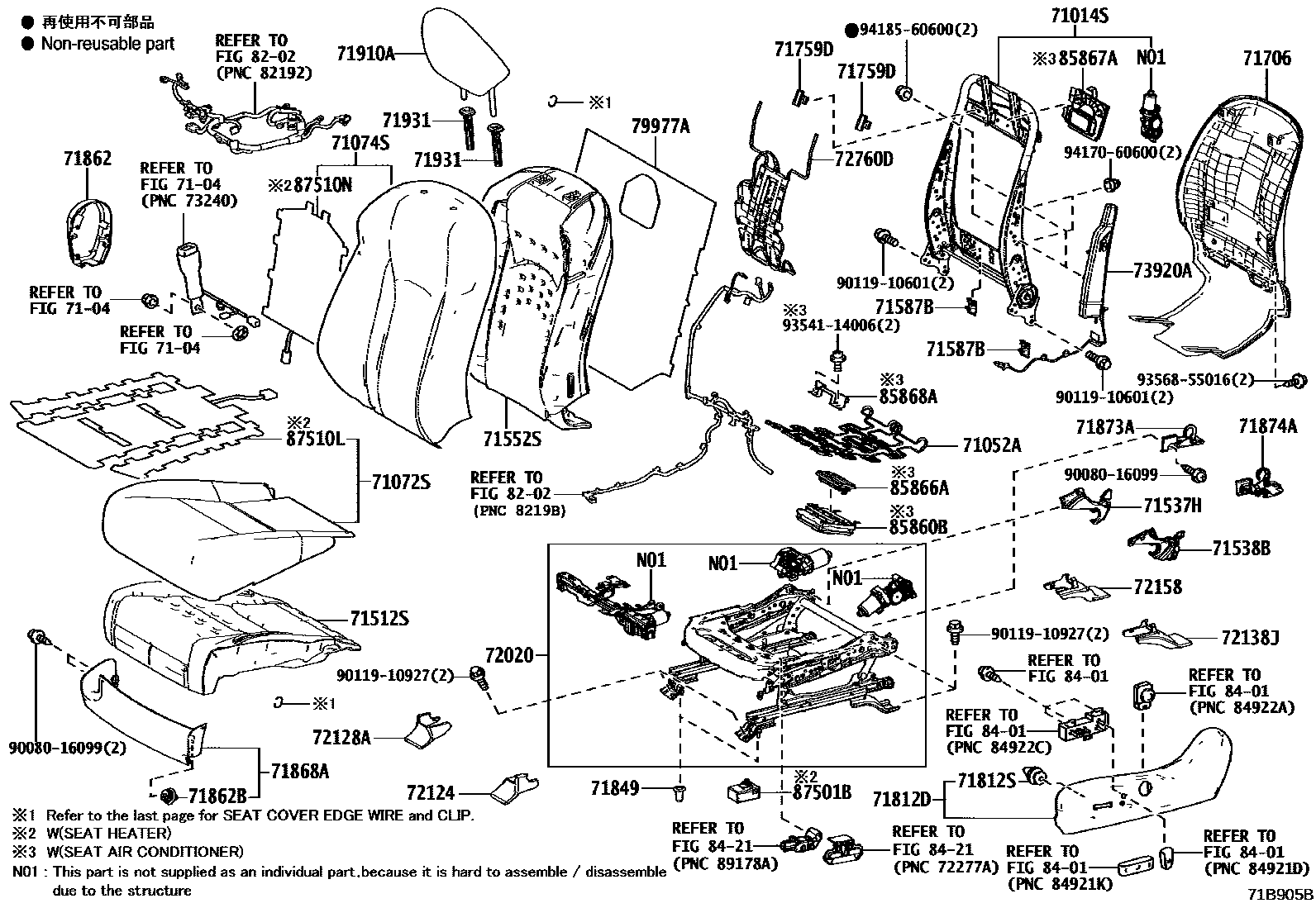

Toyota LEXUS RX450H/350(JPP — FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
IVORY,TRIM0#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
TOPAZ BROWM,TRIM5#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
OCHER,TRIM5#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
IVORY,TRIM0#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
TOPAZ BROWM,TRIM5#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
OCHER,TRIM5#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM02
NOBLE BROWN,TRIM04
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,4#,5#,6#
NOBLE BROWN,TRIM02
NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM0#,5#
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM0#,5#,6#
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71587BPROTECTOR, FRONT SEATBACK EDGE
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#,5#
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
NOBLE BROWN,TRIM00,04
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM0#
BLACK,TRIM0#,1#,2#,5#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
71759DHOOK, FRONT SEATBACK, NO.2
71812DSHIELD, FRONT SEAT CUSHION, LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,4#,5#,6#
NOBLE BROWN,TRIM02
NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM0#,5#
71812SCLIP, FRONT SEAT CUSHION SHIELD, LH
71849CAP, SEAT ADJUSTER COVER, LH
71862SHIELD, FRONT SEAT CUSHION, INNER LH
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM04,2#,4#,5#,6#
NOBLE BROWN,TRIM02
NOBLE BROWN,TRIM0#,5#
"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM04
71862BCLIP(FOR FRONT SEAT SHIELD, LH)
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,2#,4#,5#,6#
NOBLE BROWN,TRIM02
NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM0#,5#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71873ASHIELD, FRONT SEAT CUSHION, LOWER
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
71910AHEADREST ASSY, FRONT SEAT
IVORY,TRIM0#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
TOPAZ BROWN,TRIM5#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
RICH CREAM,TRIM6#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
OCHER,TRIM5#
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK),"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
sub71930-47020
W(LOCK),"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM5#,6#
sub71930-47020
W/O(LOCK),"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),IVORY,TRIM0#
sub71931-47020
W/O(LOCK),"VERSION L"*(L)&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT & REAR),NOBLE BROWN,TRIM5#,6#
sub71931-47020
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,1#,2#,4#,5#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM02
NOBLE BROWN,TRIM00,04
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM2#,4#
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM02
NOBLE BROWN,TRIM00,04
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
NOBLE BROWN,TRIM02
NOBLE BROWN,TRIM00,04
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
NOBLE BROWN,TRIM0#,5#
72158COVER, SEAT TRACK BRACKET, INNER LH
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM2#,4#
BLACK,TRIM05,06,2#,3#,4#
BLACK,TRIM02,1#,2#,4#,5#
BLACK,TRIM00,04,2#,3#,4#,5#,6#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
NOBLE BROWN,TRIM02
NOBLE BROWN,TRIM00,04
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
73920AAIRBAG ASSY, FRONT SEAT, LH
79977AFELT, SEATBACK
8202
8401
8421
85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH
85866DUCT, SEAT CUSHION CLIMATE CONTROL, RH
85866ADUCT, SEAT CUSHION CLIMATE CONTROL, LH
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
85868BRACKET, SEAT CUSHION CLIMATE CONTROL, RH
85868ABRACKET, SEAT CUSHION CLIMATE CONTROL, LH
87510NHEATER ASSY, FRONT SEATBACK, LH
9008016099
main90080-16099
9011910601
main90119-10601
9011910927
main90119-10927
9354114006
main93541-14006
9356855016
main93568-55016
9417060600
main94170-60600
9418560600
main94185-60600
53 parts on this diagram · 7 diagrams in section
