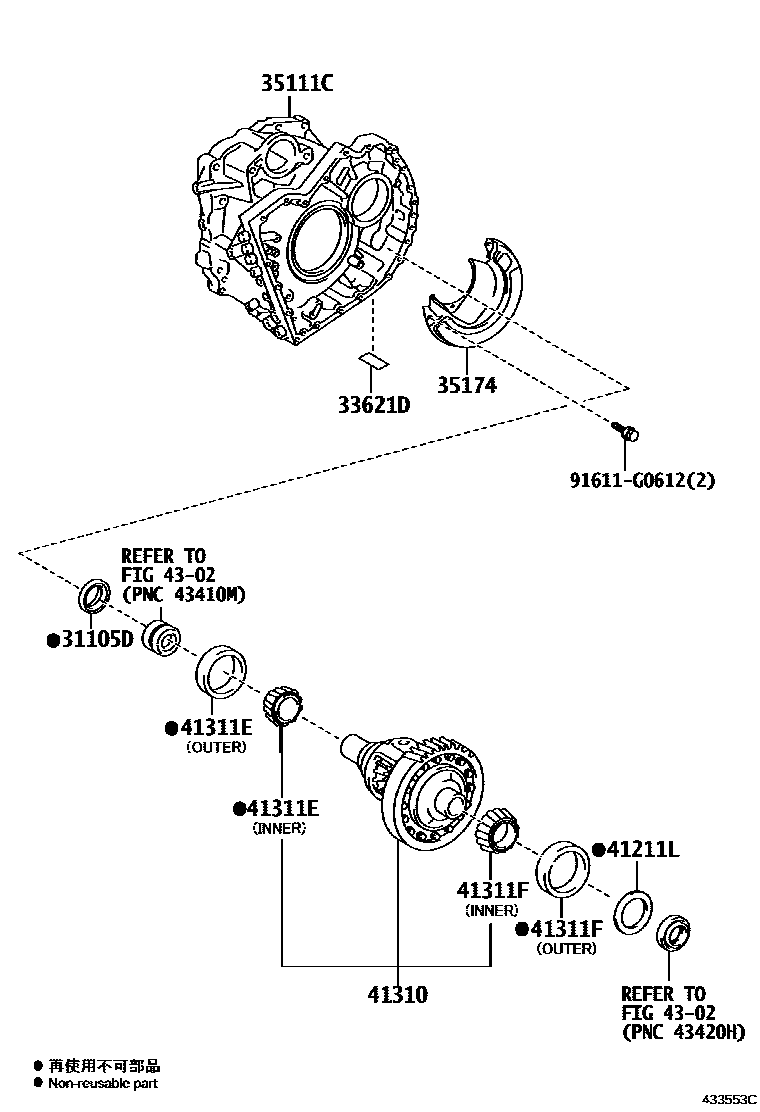

Toyota LEXUS RX450H/350(JPP — FRONT AXLE HOUSING & DIFFERENTIAL
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
33621DLABEL, TRANSAXLE OIL INFORMATION
35111CHOUSING, TRANSAXLE
35174SEPARATOR, TRANSAXLE HOUSING OIL
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
T=1.10 MARK 10
T=1.13,MARK 11
T=1.16,MARK 12
T=1.19,MARK 13
T=1.22,MARK 14
T=1.25,MARK 15
T=1.28,MARK 16
T=1.31,MARK 17
T=1.34,MARK 18
T=1.37,MARK 19
T=1.40,MARK 20
T=1.43,MARK 21
T=1.46,MARK 22
T=1.49,MARK 23
T=1.52,MARK 24
T=1.55,MARK 25
T=1.58,MARK 26
T=1.61,MARK 27
T=1.64,MARK 28
T=1.67,MARK 29
T=1.70,MARK 30
T=1.73,MARK 31
T=1.76,MARK 32
T=1.79,MARK 33
T=1.82,MARK 34
T=1.85,MARK 35
T=1.88,MARK 36
T=1.91,MARK 37
T=1.94,MARK 38
T=1.97,MARK 39
T=2.00,MARK 40
41310CASE ASSY, DIFFERENTIAL
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
OUTER
INNER
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
OUTER
INNER
4302
91611G0612
main91611-G0612
10 parts on this diagram · 1 diagram in section
