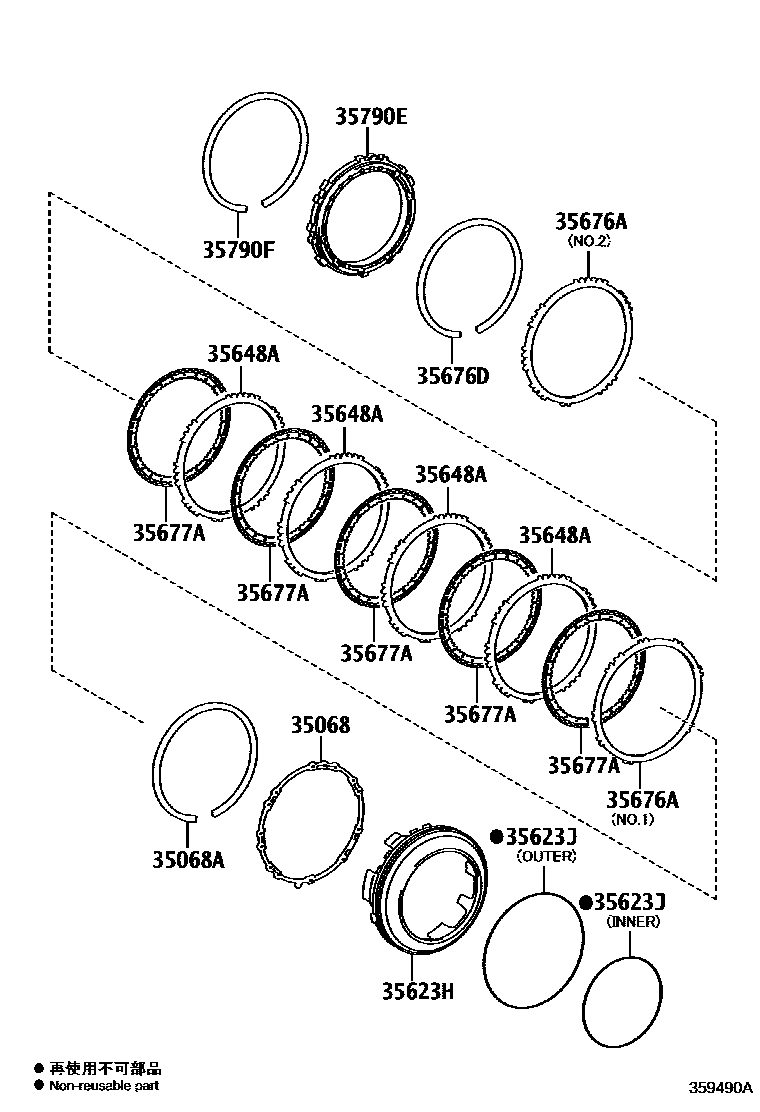

Toyota LEXUS RX450H/350(JPP — BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-48010i201509-201908

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99149i201509-201908

35623HPISTON, 1ST & REVERSE BRAKE

main35623-48020i201908

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99196i201509-201908

OUTER

main90301-99197i201509-201908

INNER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35692-48010×4i201509-201908

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-48010i201509-201908

T=4.5,NO.1

main35676-48020i201908

T=4.7,MARK 47,NO.2

main35676-48030i201509-201908

T=4.8,MARK 48,NO.2

main35676-48040i201509-201908

T=4.9,MARK 49,NO.2

main35676-48050i201908

T=5.0,MARK 50,NO.2

main35676-48060i201509-201908

T=5.1,MARK 51,NO.2

main35676-48070i201908

T=5.2,MARK 52,NO.2

main35676-48080i201509-201908

T=5.3,MARK 53,NO.2

main35676-48090i201908

T=5.4,NO.2

35676DRING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE)

main90520-99150i201509-201908

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35682-48010×5i201908

35790ECLUTCH ASSY, 1 WAY

main35790-48010i201509-201908

35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)

main90520-99149i201509-201908

10 parts on this diagram · 1 diagram in section

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) for Toyota LEXUS RX450H/350(JPP

This section contains 10 genuine Toyota parts for the BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) system of the Toyota LEXUS RX450H/350(JPP. Key components include: SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN, RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING), PISTON, 1ST & REVERSE BRAKE, RING, O (FOR 1ST & REVERSE BRAKE), PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE).
