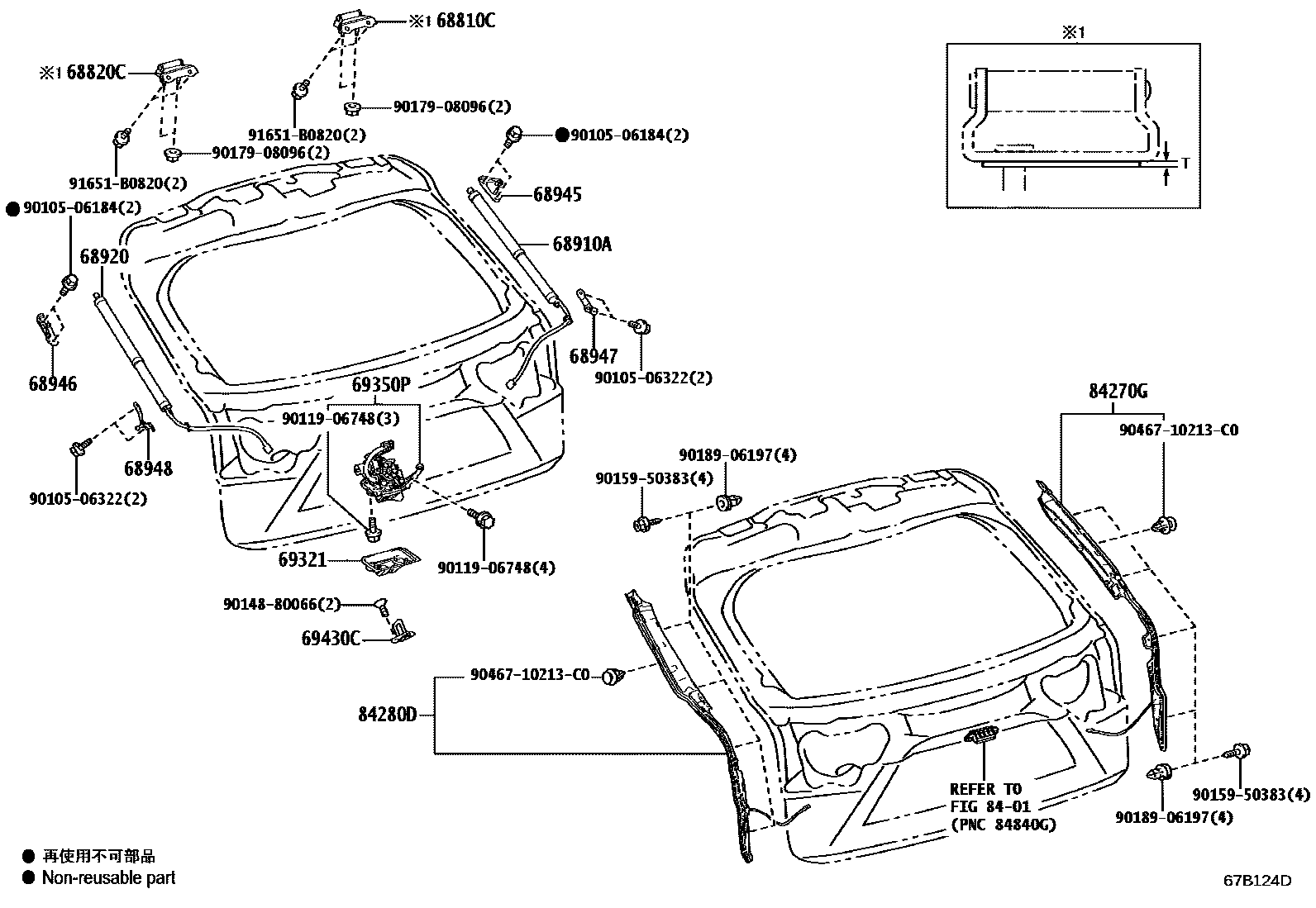

Toyota LEXUS RX450H/350(JPP — BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-48170iGGL25,GYL25201509-201512

PAD T=1.0

sub68810-48171

main68810-48171iGGL25,GYL25201601-201908

PAD T=1.0

main68810-48180iGGL25,GYL25201509-201512

PAD T=1.5

sub68810-48181

main68810-48181iGGL25,GYL25201601-201908

PAD T=1.5

main68810-48190iGGL25,GYL25201509-201512

PAD T=2.0

sub68810-48191

main68810-48191iGGL25,GYL25201601-201908

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-48170iGGL25,GYL25201509-201512

PAD T=1.0

sub68810-48171

main68810-48171iGGL25,GYL25201601-201908

PAD T=1.0

main68810-48180iGGL25,GYL25201509-201512

PAD T=1.5

sub68810-48181

main68810-48181iGGL25,GYL25201601-201908

PAD T=1.5

main68810-48190iGGL25,GYL25201509-201512

PAD T=2.0

sub68810-48191

main68810-48191iGGL25,GYL25201601-201908

PAD T=2.0

68910AUNIT ASSY SET, POWER BACK DOOR, RH

main68910-48070iGGL25,GYL25201509-201808

sub68910-48071

main68910-48071iGGL25,GYL25201809-201908

main68910-48100iGGL25,GYL25201908

68920UNIT ASSY SET, POWER BACK DOOR, LH

main68920-48030iGGL25,GYL25201509-201808

sub68920-48031

main68920-48031iGGL25,GYL25201809-201908

main68920-48080iGGL25,GYL25201908

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-48100iGGL25,GYL25201509-201908

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-48030iGGL25,GYL25201509-201908

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-48020iGGL25,GYL25201509-201908

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-48020iGGL25,GYL25201509-201908

69321COVER, BACK DOOR LOCK

main69321-0E070iGGL25,GYL25201509-201908

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-48110iGGL25,GYL25201509-201512

sub69350-48111

main69350-48111iGGL25,GYL25201601-201908

main69350-48120iGGL25,GYL25..A201908

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iGGL25,GYL25201509-201908

8401

84270GSENSOR ASSY, POWER BACK DOOR, RH

main84270-48040iGGL25,GYL25201509-201603

sub84270-48041

main84270-48041iGGL25,GYL25201604-201908

84280DSENSOR ASSY, POWER BACK DOOR, LH

main84280-48040iGGL25,GYL25201509-201603

sub84280-48041

main84280-48041iGGL25,GYL25201604-201908

9010506184

main90105-06184

9010506322

main90105-06322

9011906748

main90119-06748

9014880066

main90148-80066

9015950383

main90159-50383

9017908096

main90179-08096

9018906197

main90189-06197

9046710213C0

main90467-10213C0

91651B0820

main91651-B0820

23 parts on this diagram · 1 diagram in section
