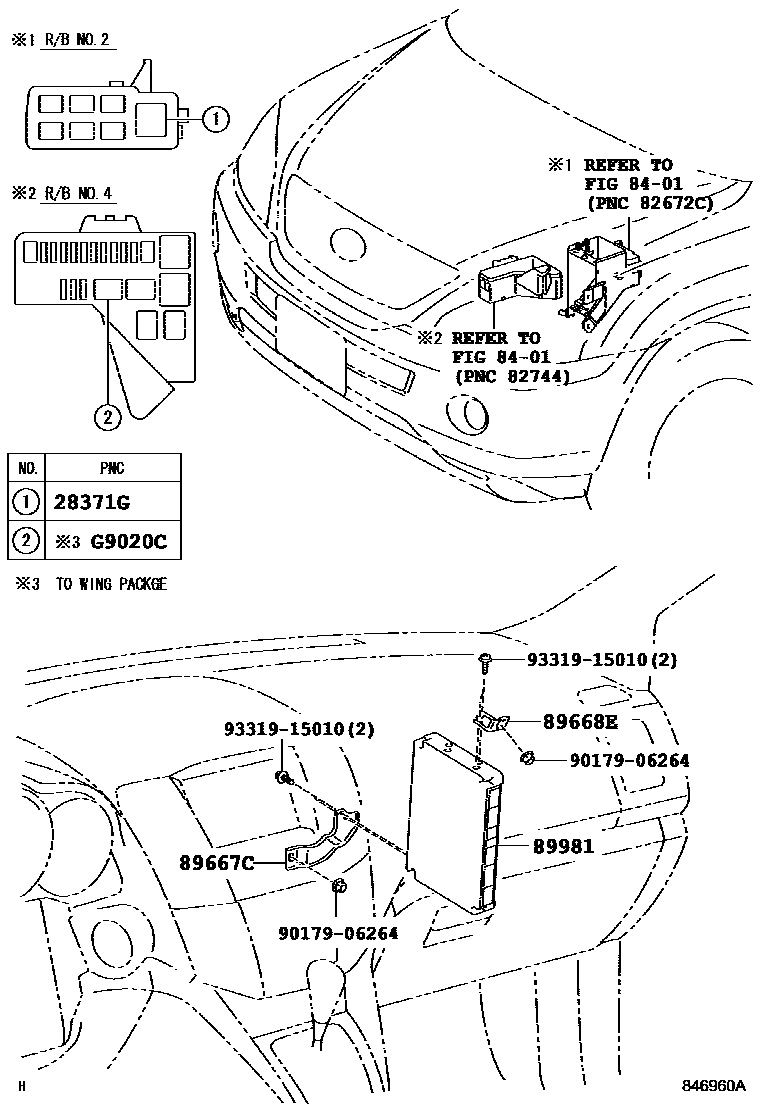

Toyota LEXUS RX400H — HEV CONTROL COMPUTER

28371GRELAY, IGNITION CONTACT

main90987-02025i200503-200812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89667CBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-48060i200503-200812

89668EBRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48060i200503-200812

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-48010supersedes 89981-48461i200503-200509

TOWING PACKAGE-3500LBS

main89981-48011supersedes 89981-48461i200510-200602

TOWING PACKAGE-3500LBS

main89981-48012supersedes 89981-48022i200603-200608

TOWING PACKAGE-3500LBS

main89981-48030supersedes 89981-48481i200503-200509

TOWING PACKAGE-3500LBS

main89981-48031supersedes 89981-48481i200510-200602

TOWING PACKAGE-3500LBS

main89981-48032supersedes 89981-48042i200603-200608

TOWING PACKAGE-3500LBS

main89981-48160supersedes 89981-48180i200608-200609

TOWING PACKAGE-3500LBS

main89981-48161supersedes 89981-48461i200610-200611

TOWING PACKAGE-3500LBS

main89981-48162supersedes 89981-48182i200612-200708

TOWING PACKAGE-3500LBS

main89981-48190supersedes 89981-48200i200608-200609

TOWING PACKAGE-3500LBS

main89981-48191supersedes 89981-48481i200610-200611

TOWING PACKAGE-3500LBS

main89981-48192supersedes 89981-48202i200612-200708

TOWING PACKAGE-3500LBS

main89981-48230i200608-200708

KOREA SPEC&TOWING PACKAGE-3500LBS

main89981-48450supersedes 89981-48460i200708-200804

TOWING PACKAGE-3500LBS

main89981-48451supersedes 89981-48461i200805-200812

TOWING PACKAGE-3500LBS

main89981-48470supersedes 89981-48480i200708-200804

TOWING PACKAGE-3500LBS

main89981-48471supersedes 89981-48481i200805-200812

TOWING PACKAGE-3500LBS

main89981-48510supersedes 89981-48480i200708-200812

KOREA SPEC; KOREA SPEC&TOWING PACKAGE-3500LBS

G9020CRELAY, OIL PUMP

main90987-02027i200503-200812

TOWING PACKAGE-3500LBS

9017906264

main90179-06264

9331915010

main93319-15010

8 parts on this diagram · 1 diagram in section

HEV CONTROL COMPUTER for Toyota LEXUS RX400H

This section contains 8 genuine Toyota parts for the HEV CONTROL COMPUTER system of the Toyota LEXUS RX400H. Key components include: RELAY, IGNITION CONTACT, SWITCH & RELAY & COMPUTER, BRACKET, ENGINE CONTROL COMPUTER, NO.1, BRACKET, ENGINE CONTROL COMPUTER, NO.2, COMPUTER, HYBRID VEHICLE CONTROL.
