Toyota LEXUS RX330/350(NAP) — STEERING COLUMN & SHAFT

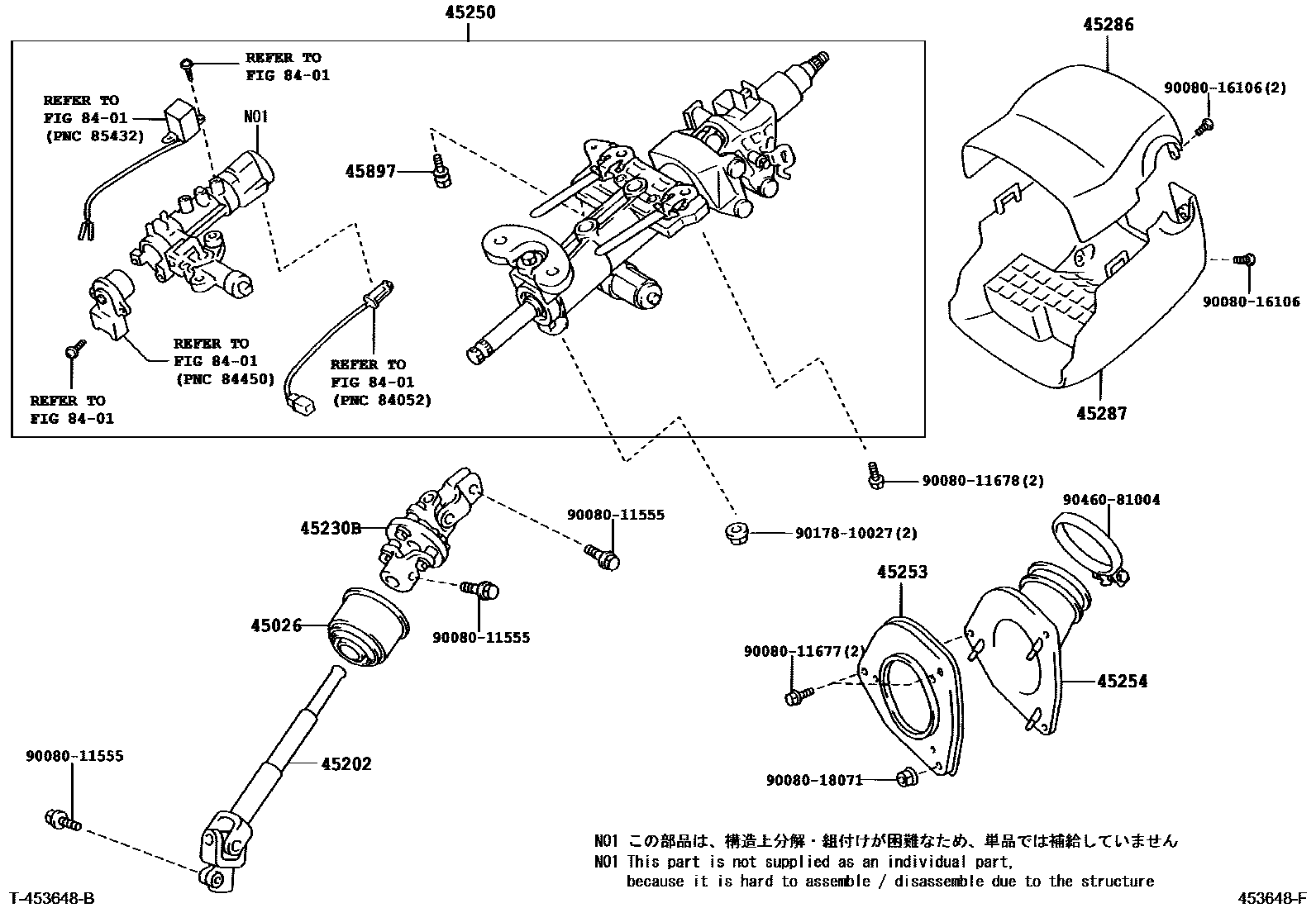

Parts diagram

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-0E020i200309-200602

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-0E010i200309-200602

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45230-0E010i200309-200602

45250COLUMN ASSY, STEERING

main45250-0E010i200309-200602

main45250-0E011i200602-200901

45253COVER, STEERING COLUMN HOLE

main45253-0E010i200309-200602

45254SHIELD, STEERING COLUMN HOLE

main45254-0E010i200309-200602

45286COVER, STEERING COLUMN

main45286-0E010-C0i200602

BLACK,TRIM1#,2#

main45286-0E010-E0i200309-200602

SANDAL WOOD,TRIM0#

45287COVER, STEERING COLUMN, LWR

main45287-0E010-C0i200602

BLACK,TRIM1#,2#

main45287-0E010-E0i200309-200602

SANDAL WOOD,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020×2i200309-200602

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011555

main90080-11555

9008011677

main90080-11677

9008011678

main90080-11678

9008016106

main90080-16106

9008018071

main90080-18071

9017810027

main90178-10027

9046081004

main90460-81004

17 parts on this diagram · 1 diagram in section

STEERING COLUMN & SHAFT for Toyota LEXUS RX330/350(NAP)

This section contains 17 genuine Toyota parts for the STEERING COLUMN & SHAFT system of the Toyota LEXUS RX330/350(NAP). Key components include: COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2, SHAFT SUB-ASSY, STEERING INTERMEDIATE, JOINT ASSY, STEERING SHAFT UNIVERSAL, COLUMN ASSY, STEERING, COVER, STEERING COLUMN HOLE.
