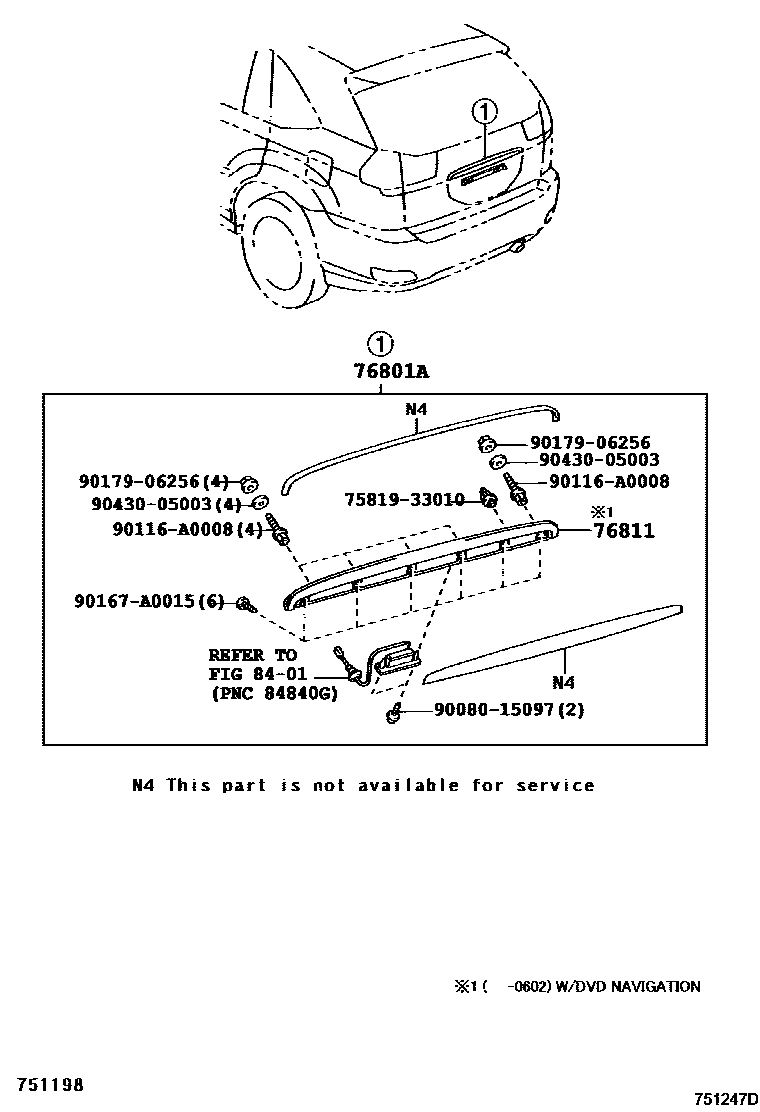

Toyota LEXUS RX330/350(NAP) — REAR MOULDING

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-0E020-A0supersedes 76801-0E010-A0i200309-200409

W/DVD NAVIGATION,WHITE PEARL CS.,062

main76801-0E020-B0supersedes 76801-0E010-B0i200309-200409

W/DVD NAVIGATION,SILVER ME.,1C0

main76801-0E020-B1i200409-200602

W/DVD NAVIGATION,DK.GRAY MC.,1E0

main76801-0E020-C0supersedes 76801-0E010-C0i200309-200409

W/DVD NAVIGATION,BLACK,202

main76801-0E020-E0supersedes 76801-0E010-E0i200309-200409

W/DVD NAVIGATION,BEIGE ME.,4R4

main76801-0E020-G0i200409-200602

W/DVD NAVIGATION,LT.OLIVE M.M.,6T1

main76801-0E020-G1supersedes 76801-0E010-G1i200309-200409

W/DVD NAVIGATION,DK.GREEN MC.,6T3

main76801-0E020-J0supersedes 76801-0E010-J0i200309-200409

W/DVD NAVIGATION,LT.BLUE ME.,8R6

main76801-0E020-J1supersedes 76801-0E010-J1i200309-200409

W/DVD NAVIGATION,DK.BLUE M.M.,8R7

main76801-0E030-A0supersedes 76801-0E010-A0i200602

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),WHITE PEARL CS.,062

main76801-0E030-B0supersedes 76801-0E010-B0i200602-200801

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),SILVER ME.,1C0

main76801-0E030-B1supersedes 76801-0E010-B1i200602-200801

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),DK.GRAY MC.,1E0

main76801-0E030-B2supersedes 76801-0E010-B2i200801

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),SILVER ME.,1F7

main76801-0E030-B3supersedes 76801-0E010-B3i200801

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),DK.GRAY MC.,1G0

main76801-0E030-C0supersedes 76801-0E010-C0i200602-200801

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),BLACK,202

main76801-0E030-C1supersedes 76801-0E010-C1i200801

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),BLACK,212

main76801-0E030-D0supersedes 76801-0E010-D0i200801

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),RED MC.CS.,3R1

main76801-0E030-E0supersedes 76801-0E010-E0i200602-200801

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),BEIGE ME.,4R4

main76801-0E030-E2supersedes 76801-0E010-E2i200801

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),BEIGE ME.,4T1

main76801-0E030-E3supersedes 76801-0E010-E3i200801

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),SABLE M.M.,4T5

main76801-0E030-G0supersedes 76801-0E010-G0i200602

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),LT.OLIVE M.M.,6T1

main76801-0E030-G1supersedes 76801-0E010-G1i200602-200701

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),DK.GREEN MC.,6T3

main76801-0E030-G2supersedes 76801-0E010-G2i200701-200801

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),MD.GREEN M.M.,6U3

main76801-0E030-J0supersedes 76801-0E010-J0i200602

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),LT.BLUE ME.,8R6

main76801-0E030-J1supersedes 76801-0E010-J1i200602-200701

EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),DK.BLUE M.M.,8R7

76811GARNISH, BACK DOOR, OUTSIDE

main76811-0E020-A0i200409-200602

W/DVD NAVIGATION,WHITE PEARL CS.,062

main76811-0E020-B0i200309-200409

W/DVD NAVIGATION,SILVER ME.,1C0

main76811-0E020-B1i200409-200602

W/DVD NAVIGATION,DK.GRAY MC.,1E0

main76811-0E020-C0i200309-200409

W/DVD NAVIGATION,BLACK,202

main76811-0E020-E0i200309-200409

W/DVD NAVIGATION,BEIGE ME.,4R4

main76811-0E020-G0i200309-200409

W/DVD NAVIGATION,LT.OLIVE M.M.,6T1

main76811-0E020-G1i200309-200409

W/DVD NAVIGATION,DK.GREEN MC.,6T3

main76811-0E020-J0i200309-200409

W/DVD NAVIGATION,LT.BLUE ME.,8R6

main76811-0E020-J1i200409-200602

W/DVD NAVIGATION,DK.BLUE M.M.,8R7

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7581933010CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010

9008015097

main90080-15097

90116A0008

main90116-A0008

90167A0015

main90167-A0015

9017906256

main90179-06256

9043005003

main90430-05003

9 parts on this diagram · 1 diagram in section

REAR MOULDING for Toyota LEXUS RX330/350(NAP)

This section contains 9 genuine Toyota parts for the REAR MOULDING system of the Toyota LEXUS RX330/350(NAP). Key components include: GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE, GARNISH, BACK DOOR, OUTSIDE, SWITCH & RELAY & COMPUTER, CLIP, LUGGAGE COMPARTMENT DOOR MOULDING.
