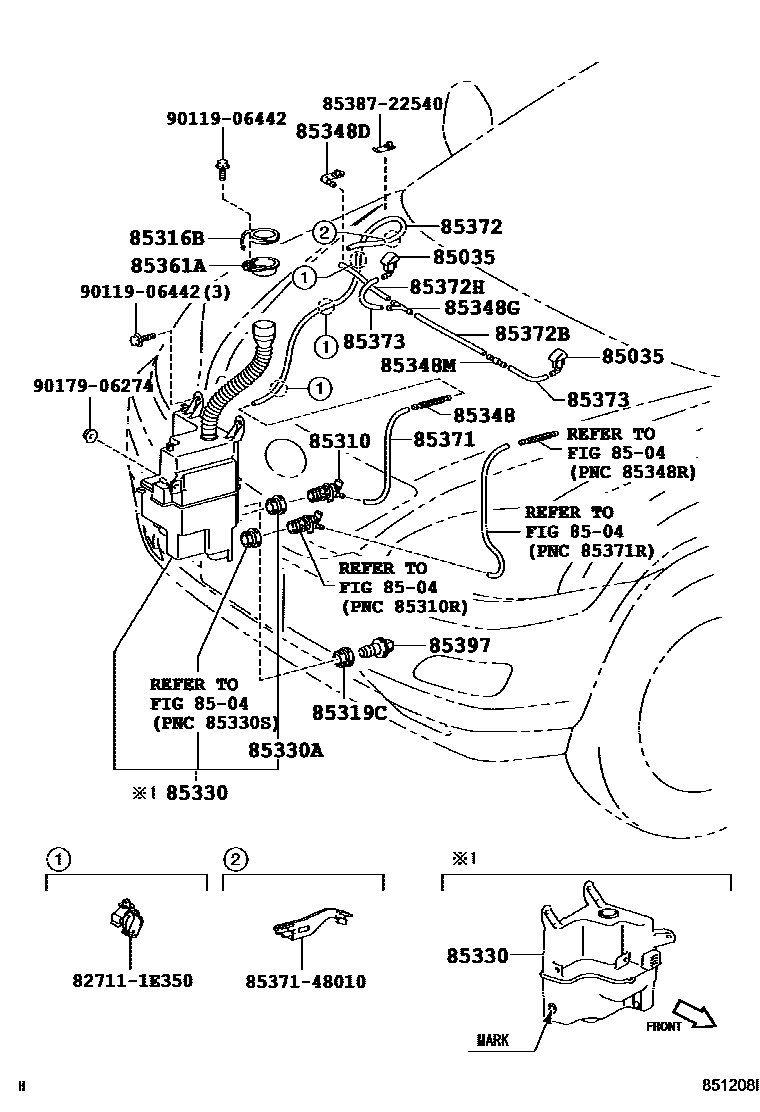

Toyota LEXUS RX330/350(JPP) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0E010iMCU3#..JPP200306-200311

main85381-0E020iGSU3#..JPP200311-200812

main85381-48030iMCU3#..JPP200302-200306

sub85381-0E020

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190iGSU3#..JPP200302-200812

85316BCAP, WASHER, INLET

main85316-48050iGSU3#..JPP200302-200812

85319CHOSE, WASHER

main85319-33230iGSU3#..JPP200302-200812

85330JAR ASSY, WINDSHIELD WASHER

main85315-48060iMCU38..JPP200302-200601

TAIWAN SPEC&W/SEAT HEATER

main85315-48060iMCU38..JPP200302-200601

KOREA SPEC&W/SEAT HEATER

main85315-48060iGSU3#..JPP200601-200812

KOREA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER)

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iGSU3#..JPP200302-200812

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-32150iMCU3#..JPP200302-200812

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-16160iMCU3#..JPP200302-200812

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250iMCU3#..JPP200302-200812

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iGSU3#..JPP200302-200812

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-48060iMCU3#..JPP200302-200812

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iMCU38..JPP200302-200601

L=1450(*H,L=290),TAIWAN SPEC&W/SEAT HEATER

main90099-33080iMCU38..JPP200302-200812

L=1450(*H,L=290)

main90099-33080iMCU38..JPP200302-200812

L=1450(*H,L=290),CANADA SPEC

main90099-33080iMCU38..JPP200302-200601

L=1450(*H,L=290),CANADA SPEC&W/SEAT HEATER

main90099-33080iMCU38..JPP200302-200601

L=1450(*H,L=290),W/SEAT HEATER

main90099-33080iMCU38..JPP200302-200601

L=1450(*H,L=290),KOREA SPEC&W/SEAT HEATER

main90099-33080iGSU3#..JPP200601-200812

L=1450(*H,L=290),KOREA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER)

main90099-33080iGSU3#..JPP200601-200812

L=1450(*H,L=290),CANADA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER)

main90099-33080iGSU3#..JPP200601-200812

L=1450(*H,L=290),SEAT HEATER-WITH(DRIVER & PASSENGER)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iMCU3#..JPP200306-200812

L=1450(*H,L=1350)

main90446-07001iMCU3#..JPP200302-200306

L=1800(*H,L=1350)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iMCU3#..JPP200306-200812

L=1450(*H,L=440)

main90446-07001iMCU3#..JPP200302-200306

L=1800(*H,L=440)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iGSU3#..JPP200601-200812

L=1450(*H,L=310)

main90099-33082iMCU3#..JPP200306-200601

L=1450(*H,L=310)

sub90099-33080

main90446-07001iMCU3#..JPP200302-200306

L=1800(*H,L=310)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33037iMCU3#..JPP200306-200812

L=200

85397SWITCH ASSY,LEVEL WARNING

main85397-33230iMCU3#..JPP200302-200812

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

8537148010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-48010

8538722540CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22540

9011906442

main90119-06442

9017906274

main90179-06274

23 parts on this diagram · 1 diagram in section
