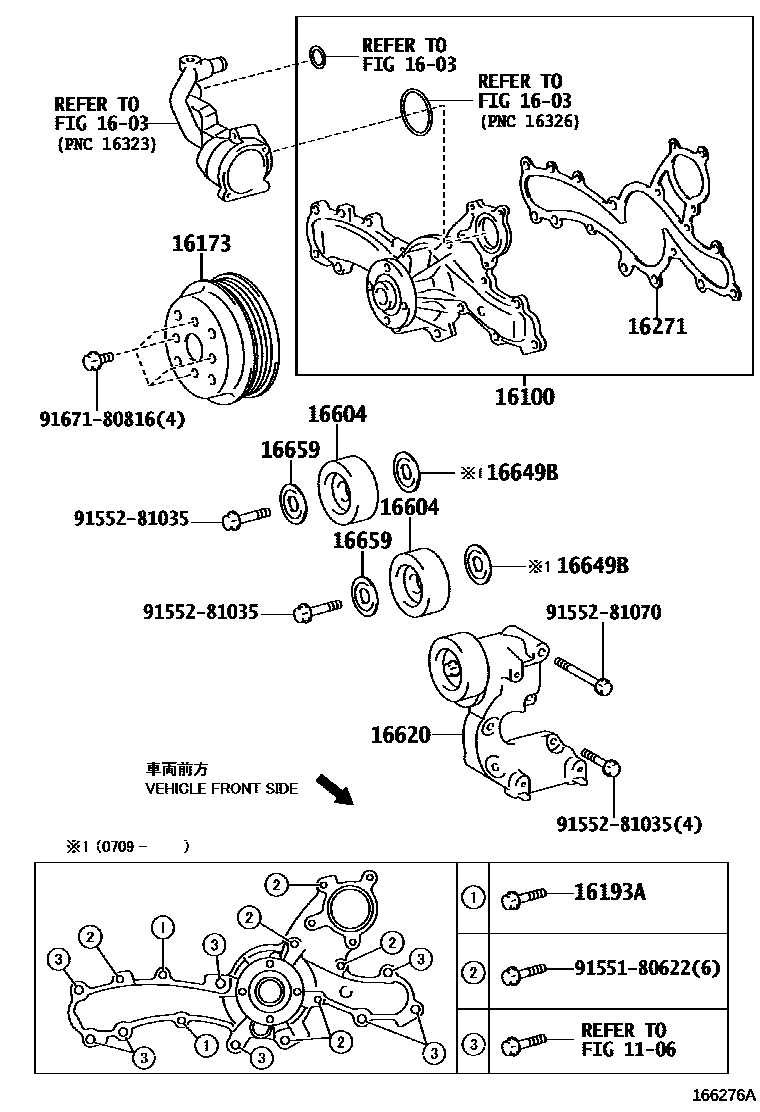

Toyota LEXUS RX330/350(JPP) — WATER PUMP

0001 1 0002 1

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-09070i3MZFE..MCU3#..JPP200302-200312

(L)

main16100-29085i3MZFE..MCU3#..JPP200302

(J)

main16100-39455i2GRFE..GSU3#..JPP200601-200812

sub16100-39456

16173PULLEY, WATER PUMP

main16173-31010i2GRFE..GSU3#..JPP200601-200812

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i2GRFE..GSU3#..JPP200601-200812

16271GASKET, WATER PUMP

main16271-20020i3MZFE..MCU3#..JPP200302

main16271-31030i2GRFE..GSU3#..JPP200601-200812

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31010i2GRFE..GSU3#..JPP200601-200709

main16604-31020i2GRFE..GSU3#..JPP200709-200812

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31040i2GRFE..GSU3#..JPP200601-200812

16649BPLATE, IDLER PULLEY COVER

main16649-31020i2GRFE..GSU3#..JPP200709-200812

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i2GRFE..GSU3#..JPP200601-200812

9155180622

main91551-80622

9155281035

main91552-81035

9155281070

main91552-81070

9167180816

main91671-80816

14 parts on this diagram · 2 diagrams in section
