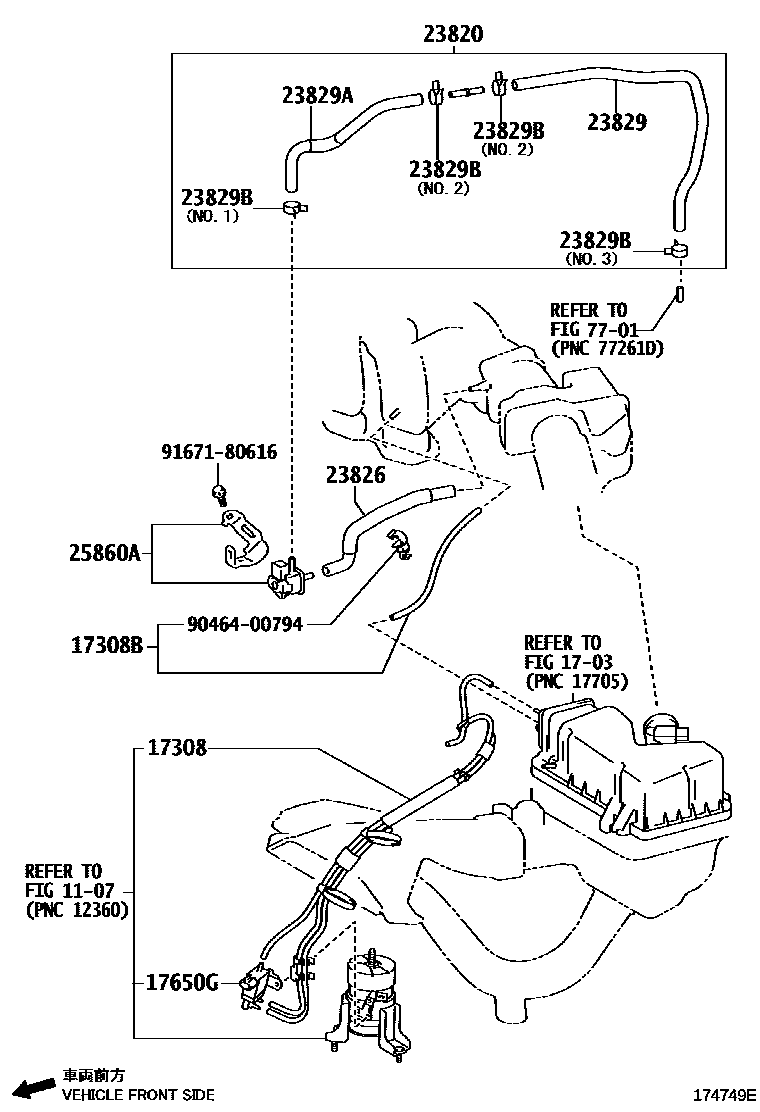

Toyota LEXUS RX330/350(JPP) — VACUUM PIPING
1107
1703
17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308BHOSE SUB-ASSY, VACUUM
NO.1
NO.2
17650GVALVE, DUTY VACUUM SWITCHING
NO.2
NO.1 90910-12259
23820HOSE ASSY, FUEL VAPOR FEED
23826HOSE, FUEL VAPOR FEED, NO.1
23829HOSE, FUEL VAPOR FEED, NO.3
23829AHOSE, FUEL VAPOR FEED
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
NO.1
NO.3
NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
25860AVALVE, VACUUM SWITCHING, NO.1
7701
9046400794
main90464-00794
9167180616
main91671-80616
15 parts on this diagram · 2 diagrams in section
