Toyota LEXUS RX330/350(JPP) — TRANSFER ASSEMBLY & GASKET KIT

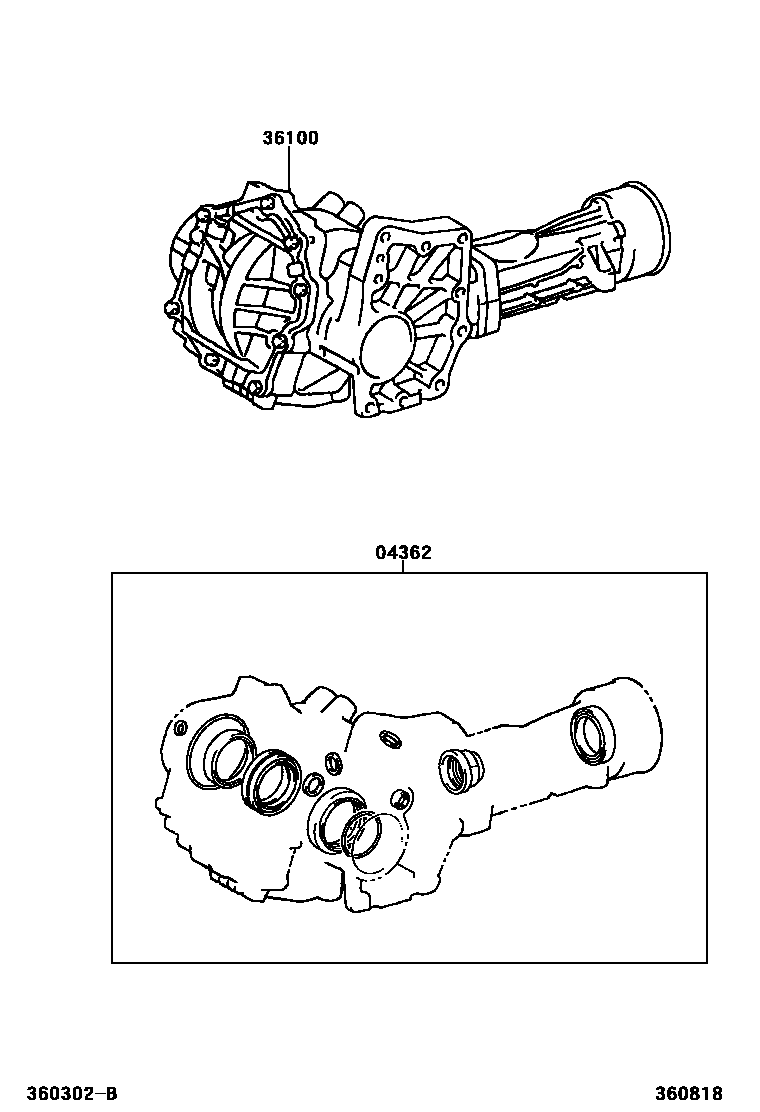

Parts diagram
04362GASKET KIT, TRANSFER OVERHAUL
main04362-21030i200302-200409
sub04362-48010
main04362-48010i200409-200812
36100TRANSFER ASSY
main36100-45010i200302-200401
sub36100-45011
main36100-45011i200401-200511
sub36100-45012
main36100-45012i200511-200601
main36100-48021i200601-200812

2 parts on this diagram · 1 diagram in section
