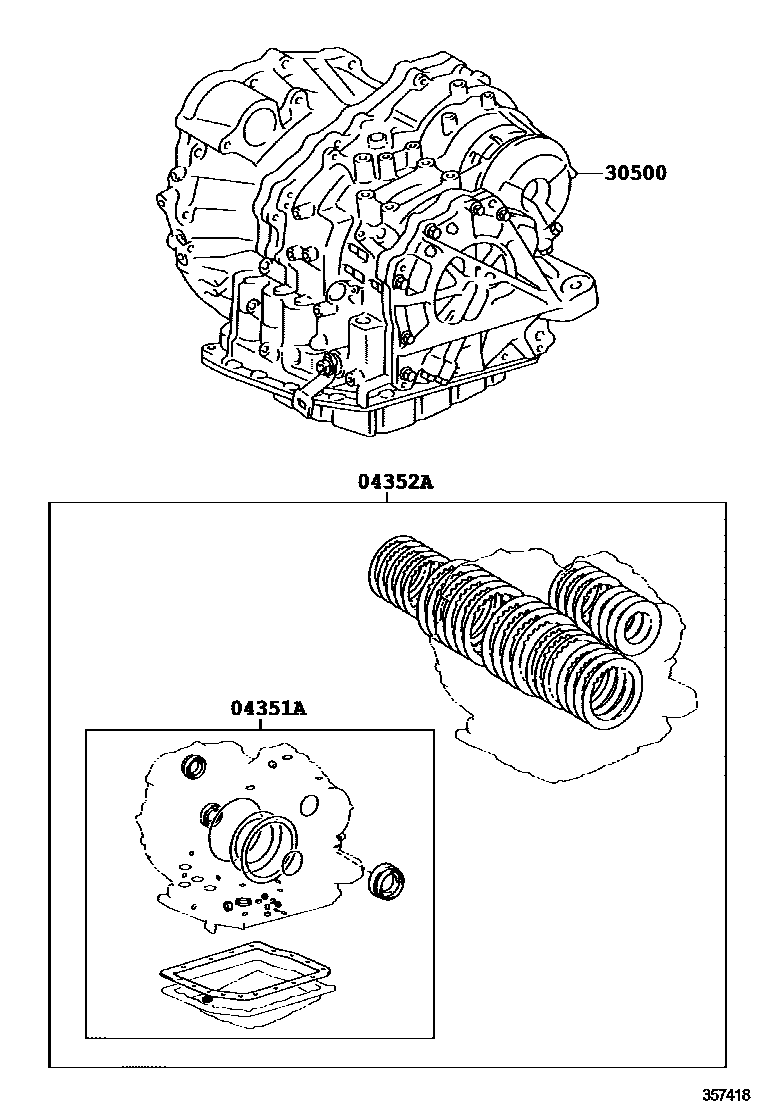

Toyota LEXUS RX330/350(JPP) — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-33070iMCU33..JPP200302-200307

sub04351-33140

main04351-33110iMCU33..JPP200307-200407

main04351-48010iMCU38..JPP200302-200307

main04351-48020iMCU38..JPP200307-200407

main04351-48040iMCU33..JPP200407-200511

sub04351-48041

main04351-48041iMCU33..JPP200511-200601

main04351-48050iMCU38..JPP200407-200511

sub04351-48051

main04351-48051iMCU38..JPP200511-200601

main04351-48090iGSU30..JPP200601-200812

sub04351-48091

main04351-48100iGSU35..JPP200601-200812

sub04351-48101

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-33070iMCU33..JPP200302-200307

sub04352-33130

main04352-33110iMCU33..JPP200307-200407

main04352-48050iMCU38..JPP200302-200307

main04352-48060iMCU38..JPP200307-200407

main04352-48090iMCU33..JPP200407-200511

sub04352-48091

main04352-48091iMCU33..JPP200511-200601

main04352-48100iMCU38..JPP200407-200511

sub04352-48101

main04352-48101iMCU38..JPP200511-200601

main04352-48160iGSU30..JPP200601-200812

sub04352-48161

main04352-48170iGSU35..JPP200601-200812

sub04351-48101

sub34261-28030

sub34262-33010

sub34627-33010

sub35633-33090

sub35667-33020

sub35681-33010

sub35682-28010

30500TRANSAXLE ASSY, AUTOMATIC

main30500-48130iMCU33..JPP200302-200601

U151E

sub30500-48131

main30500-48150iMCU38..JPP200302-200601

U151F

sub30500-48151

main30500-48230iGSU30..JPP200601-200704

U151E

sub30500-48231

main30500-48231iGSU30..JPP200704-200812

U151E

main30500-48240iGSU35..JPP200601-200704

U151F

sub30500-48241

main30500-48241iGSU35..JPP200704-200812

U151F

3 parts on this diagram · 1 diagram in section
