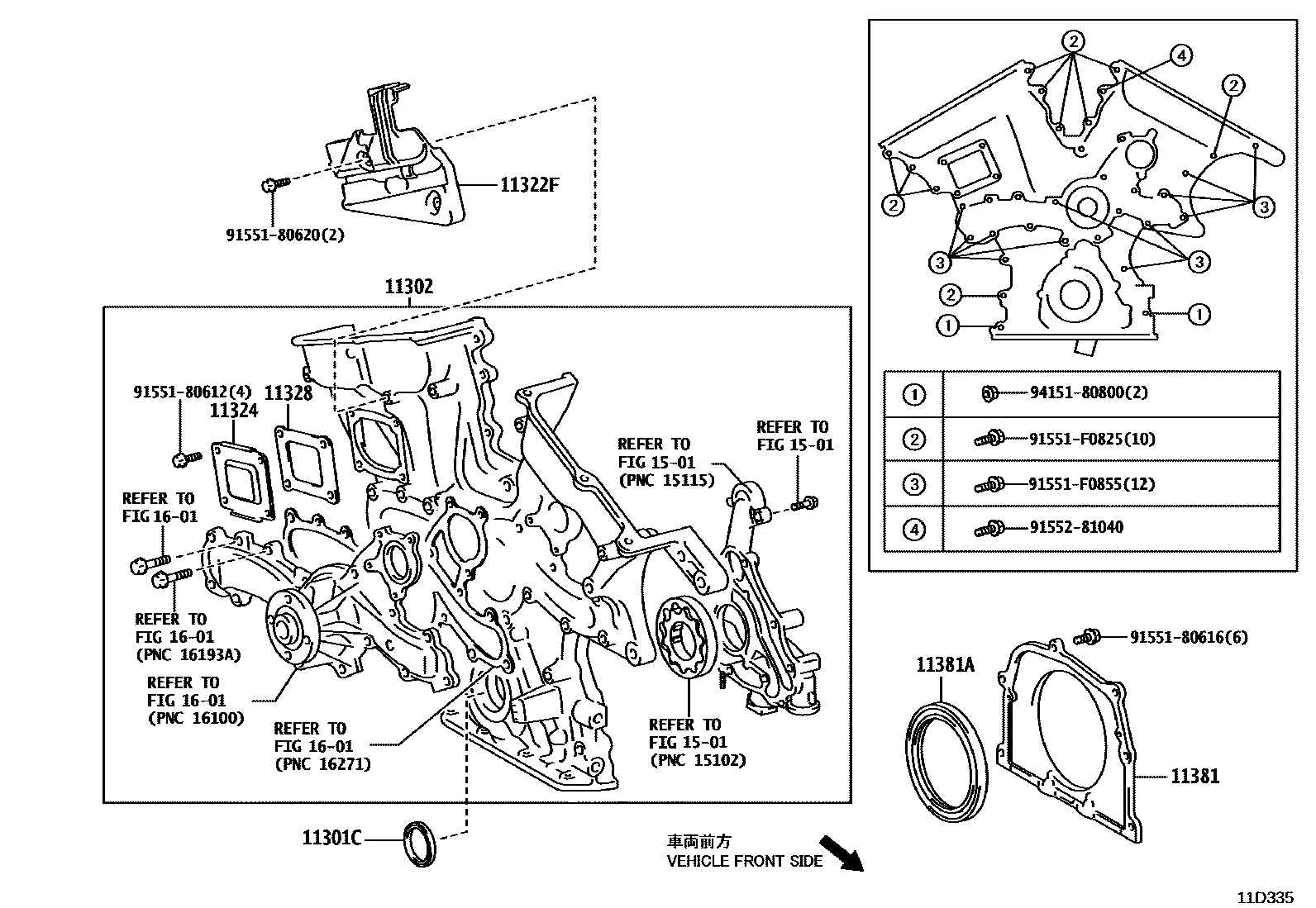

Toyota LEXUS RX330/350(JPP) — TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42037i2GRFE..GSU3#..JPP200601-200812

sub90311-42045

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-31020i2GRFE..GSU3#..JPP200601-200812

11322FCOVER, TIMING GEAR, NO.2

main11322-31021i2GRFE..GSU3#..JPP200601-200812

11324PLATE, TIMING CHAIN COVER

main11324-31020i2GRFE..GSU3#..JPP200601-200812

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i2GRFE..GSU3#..JPP200601-200812

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0A010i3MZFE..MCU3#..JPP200302

(L)

main11381-20010i3MZFE..MCU3#..JPP200302

(J)

main11381-31021i2GRFE..GSU3#..JPP200601-200812

11381ASEAL, ENGINE REAR OIL

main90080-31053i3MZFE..MCU3#..JPP200312

(L)

sub90311-A0027

main90311-92006i2GRFE..GSU3#..JPP200601-200804

sub90311-92009

main90311-92008i3MZFE..MCU3#..JPP200302-200312

main90311-92008i3MZFE..MCU3#..JPP200312

(J)

main90311-92009i2GRFE..GSU3#..JPP200804-200812

sub90311-92010

1501

1601

9155180612

main91551-80612

9155180616

main91551-80616

9155180620

main91551-80620

91551F0825

main91551-F0825

91551F0855

main91551-F0855

9155281040

main91552-81040

9415180800

main94151-80800

16 parts on this diagram · 2 diagrams in section
