Toyota LEXUS RX330/350(JPP) — TELEPHONE & MAYDAY
8603
86250DMICROPHONE ASSY, AMPLIFIER
86282BBRACKET, MICROPHONE
86290CAMPLIFIER ASSY, MICROPHONE
86705CORD SUB-ASSY, TELEPHONE ANTENNA
main86705-48010
86710COMPUTER ASSY, TELEPHONE
main86710-0E010
86713WIRE, TELEPHONE COMPUTER
main86713-48010
86729ABRACKET, MOBILEPHONE, NO.1
86729BBRACKET, MOBILEPHONE, NO.2
86740TRANSCEIVER ASSY, TELEPHONE
main86740-0W100
86750SWITCH ASSY, TELEPHONE
main86750-48020
86765CODE, TELEPHONE ANTENNA
main86705-48020
86777BATTERY, MAYDAY
main86777-0W030
89112COMPUTER, BUS BUFFER
main89112-48010
9011906915
main90119-06915
9016750046
main90167-50046
9017906159
main90179-06159
9356855016
main93568-55016

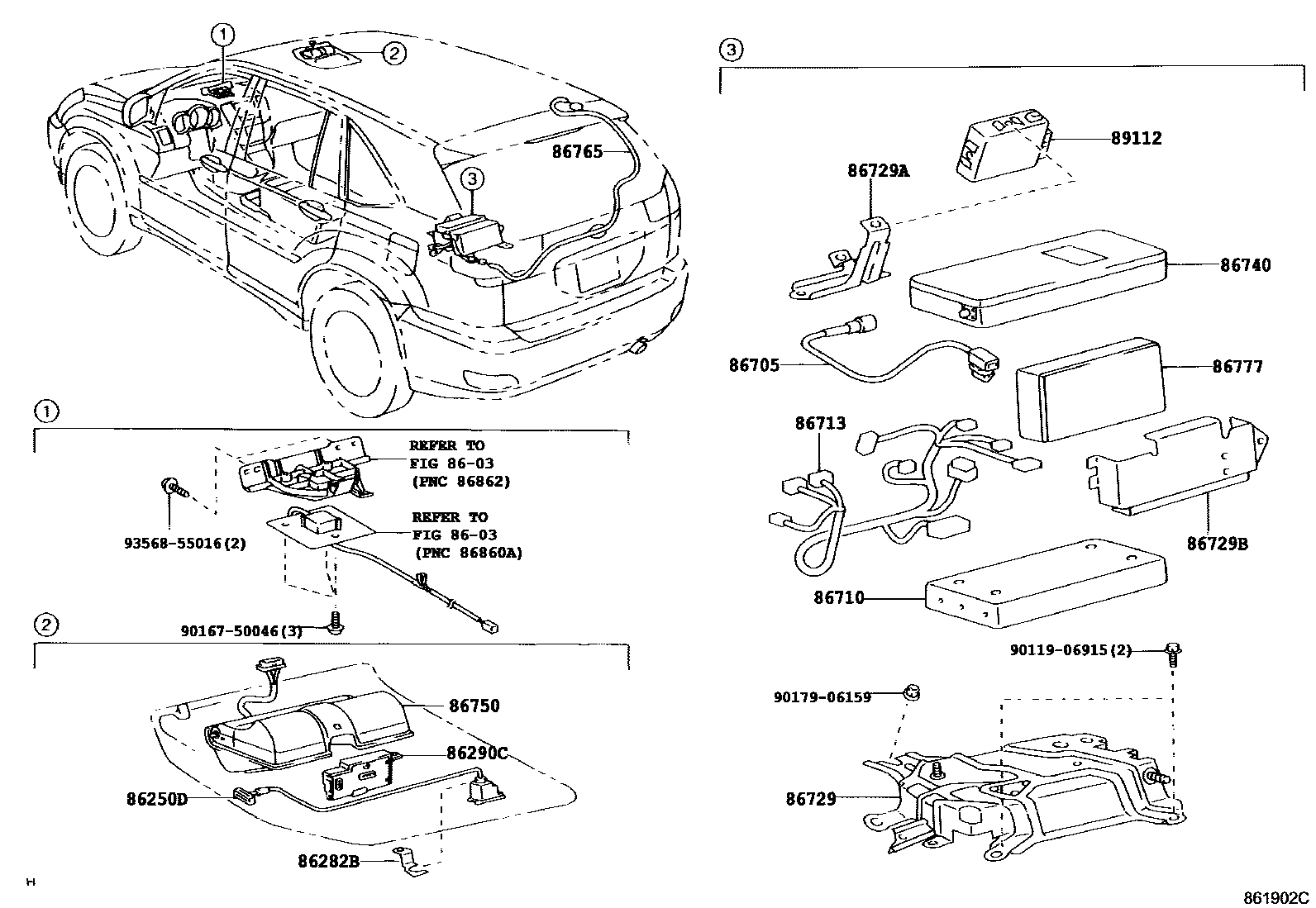

19 parts on this diagram · 1 diagram in section
