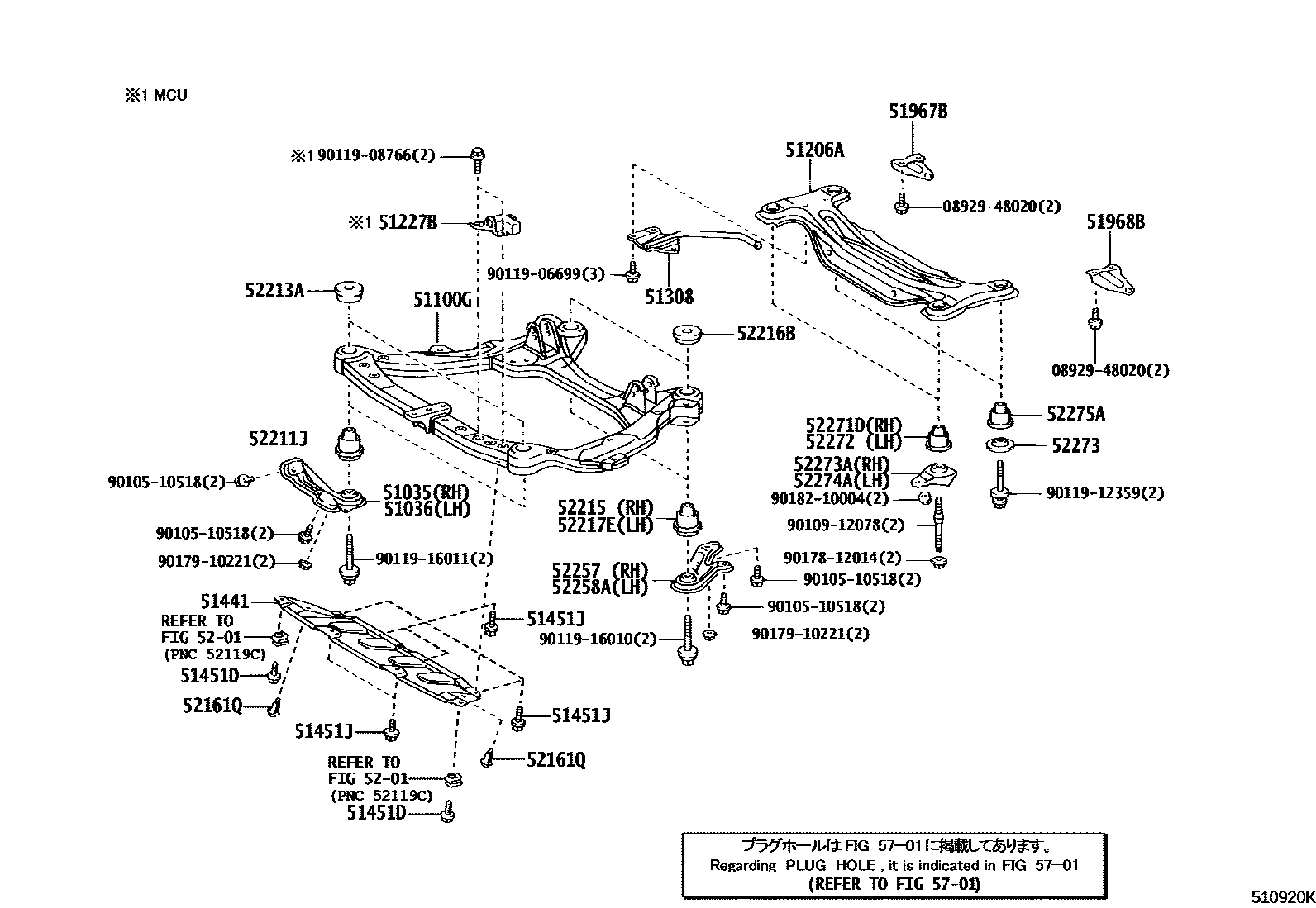

Toyota LEXUS RX330/350(JPP) — SUSPENSION CROSSMEMBER & UNDER COVER
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
sub51035-48021
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
sub51036-48021
51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51441COVER, ENGINE UNDER, NO.1
51451DSCREW, NO.1
51451JBOLT, NO.1
SPORT PACKAGE
PREMIUM PACKAGE
51967BHOOK, TRANSPORT, REAR RH
51968BHOOK, TRANSPORT, REAR LH
5201
52161QPIECE, FRONT BUMPER
sub52161-0K040
52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH
52257BRACE, FRONT SUSPENSION MEMBER, REAR RH
52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH
52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52272STOPPER, REAR SUSPENSION MEMBER, UPPER
52273STOPPER, REAR SUSPENSION MEMBER, LOWER
52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH
52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
5701
0892948020
main08929-48020
9010510518
main90105-10518
9010912078
main90109-12078
9011906699
main90119-06699
9011908766
main90119-08766
9011912359
main90119-12359
9011916010
main90119-16010
9011916011
main90119-16011
9017812014
main90178-12014
9017910221
main90179-10221
9018210004
main90182-10004
38 parts on this diagram · 6 diagrams in section
