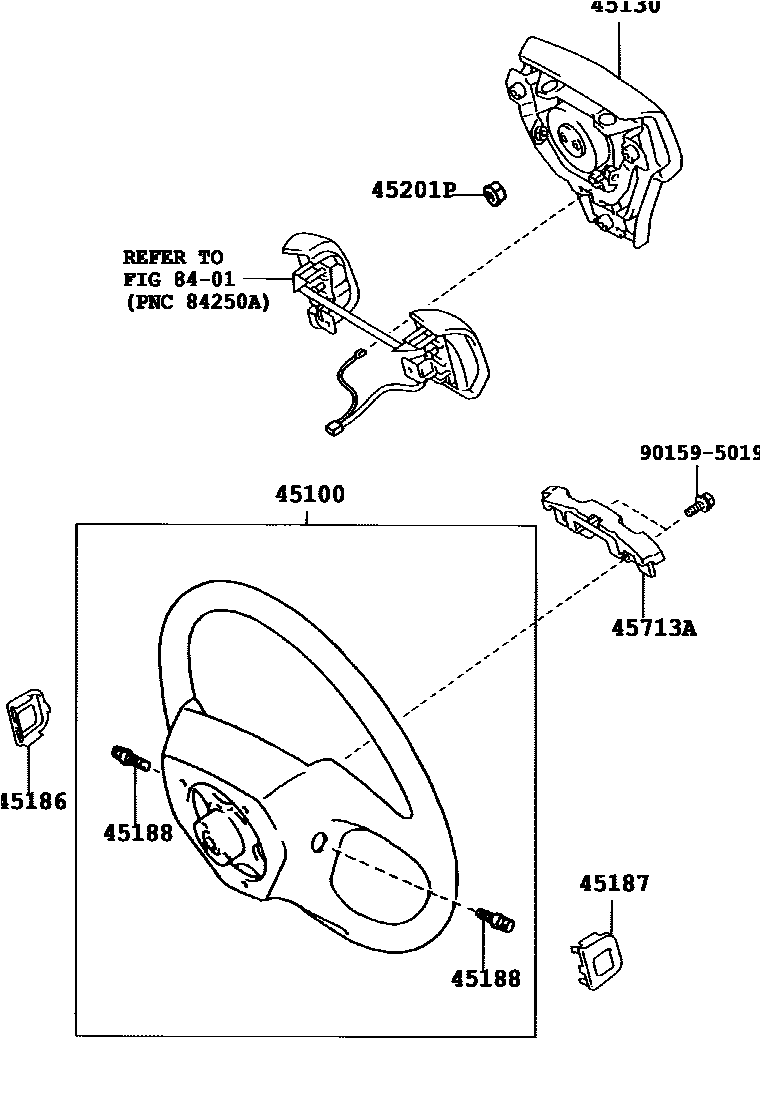

Toyota LEXUS RX330/350(JPP) — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-48270-C0iMCU3#..JPP200302-200307

3-SPOKE,LEATHER,BLACK,TRIM1#,2#

sub45100-48380

main45100-48270-E0iMCU3#..JPP200302-200307

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

sub45100-48380

main45100-48291-C0iMCU3#..JPP200408-200812

3-SPOKE,WOOD(BROWN),BLACK,TRIM1#,2#

sub45100-48291

main45100-48291-E0iMCU3#..JPP200408-200812

3-SPOKE,WOOD(BROWN),SANDAL WOOD,TRIM0#

sub45100-48291

main45100-48380-C0iMCU3#..JPP200307-200408

3-SPOKE,LEATHER,BLACK,TRIM1#,2#

main45100-48380-E0iMCU3#..JPP200307-200408

3-SPOKE,LEATHER,SANDAL WOOD,TRIM0#

main45100-48400-C0iGSU3#..JPP200701-200812

3-SPOKE,WOOD(BLACK),BLACK,TRIM1#

45130BUTTON ASSY, HORN

main45130-48100-C0iMCU3#..JPP200302-200812

BLACK,TRIM1#,2#

main45130-48100-E0iGSU3#..JPP200302-200812

SANDAL WOOD,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-48020-C0iMCU3#..JPP200302-200812

BLACK,TRIM1#,2#

sub45187-48020

main45187-48020-E0iMCU3#..JPP200302-200812

SANDAL WOOD,TRIM0#

sub45187-48020

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010iMCU3#..JPP200302-200812

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iMCU3#..JPP200302-200812

45713ADAMPER, STEERING SHAKE

main45713-48060iMCU3#..JPP200302-200812

8401

9015950199

main90159-50199

8 parts on this diagram · 1 diagram in section
