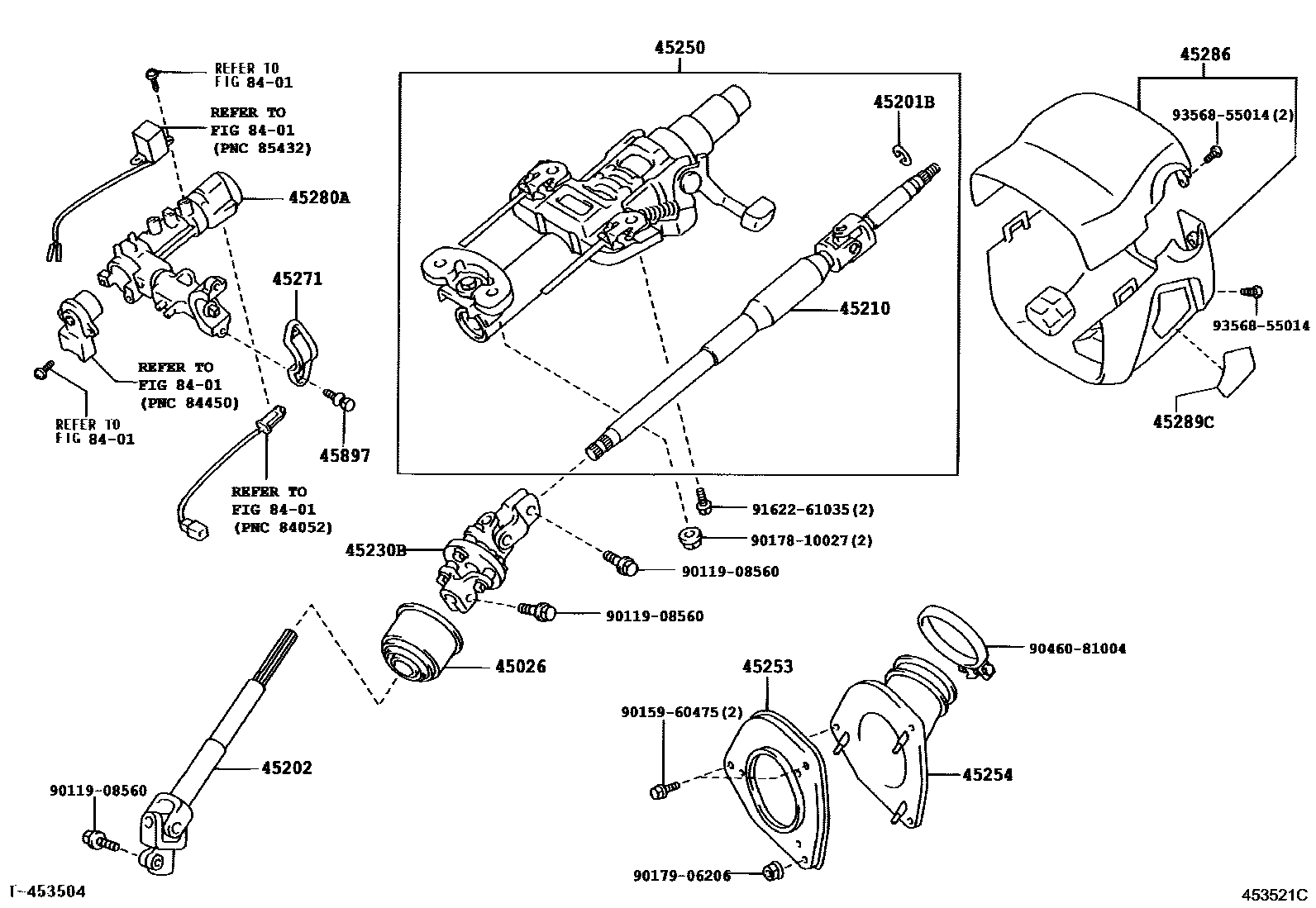

Toyota LEXUS RX330/350(JPP) — STEERING COLUMN & SHAFT

0001 1W/O(TELESCOPIC STEERING) 0002 1W(TELESCOPIC STEERING)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-48011iMCU3#..JPP200302-200601

main45026-48050iGSU3#..JPP200601-200812

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17004iMCU3#..JPP200302-200812

T=1.20

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-48060iMCU3#..JPP200302-200812

45210SHAFT ASSY, STEERING MAIN

main45210-48020iMCU3#..JPP200302-200812

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45230-48050iMCU3#..JPP200302-200812

45250COLUMN ASSY, STEERING

main45250-48060iMCU3#..JPP200302-200812

45253COVER, STEERING COLUMN HOLE

main45253-48040iMCU3#..JPP200302-200812

45254SHIELD, STEERING COLUMN HOLE

main45254-48040iMCU3#..JPP200302-200812

45271CLAMP, STEERING COLUMN, UPPER

main45271-12060iMCU3#..JPP200302-200812

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-48030iMCU3#..JPP200302-200812

45286COVER, STEERING COLUMN

main45286-48900-E0iMCU3#..JPP200302-200812

SANDAL WOOD,TRIM0#

sub45286-48900

45289CCOVER, STEERING COLUMN, LWR NO.2

main45289-48010-E0iMCU3#..JPP200302-200812

SANDAL WOOD,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020iMCU3#..JPP200302-200812

8401

9011908560

main90119-08560

9015960475

main90159-60475

9017810027

main90178-10027

9017906206

main90179-06206

9046081004

main90460-81004

9162261035

main91622-61035

9356855014

main93568-55014

21 parts on this diagram · 2 diagrams in section
