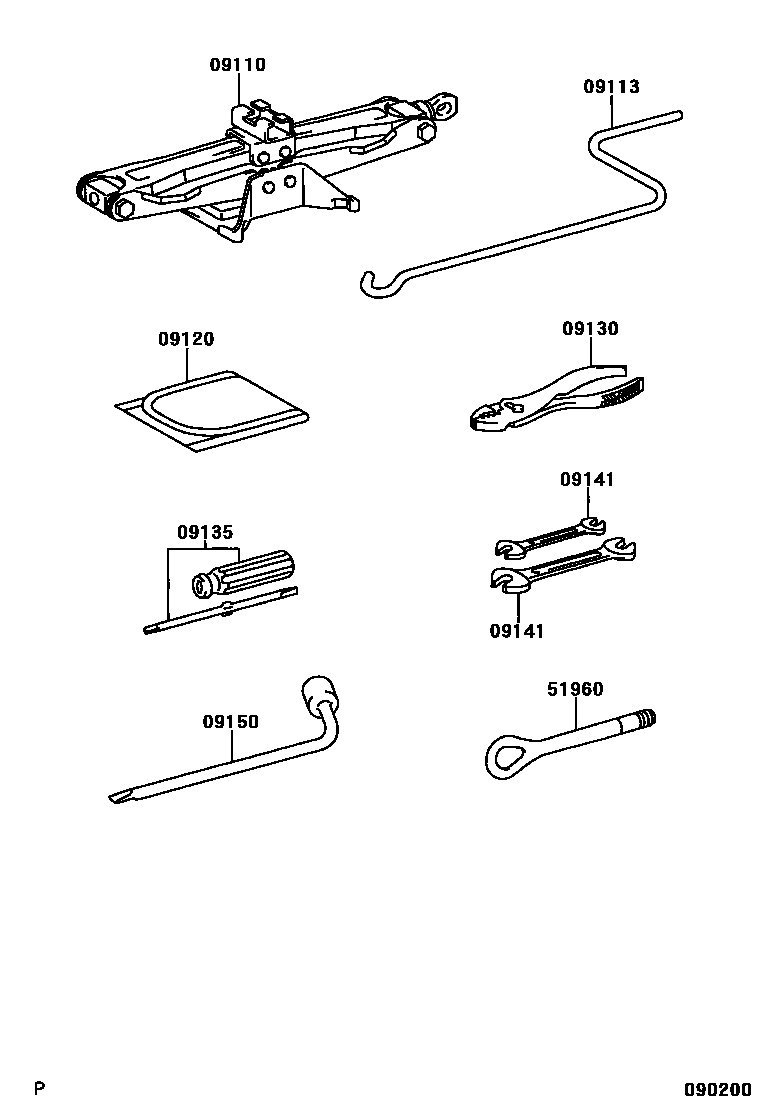

Toyota LEXUS RX330/350(JPP) — STANDARD TOOL

09110JACK ASSY

main09111-0W090iMCU3#..JPP200302-200703

sub09111-0W091

main09111-0W091iGSU3#..JPP200704-200812

sub09111-0W092

09113HANDLE, JACK

main09113-06020iMCU3#..JPP200302-200812

09120BAG, TOOL

main09120-48010iMCU3#..JPP200302-200812

09130PLIERS

main09130-50030iMCU3#..JPP200302-200812

09135DRIVER, SCREW

main09135-50050iGSU3#..JPP200612-200812

main99915-10700iGSU3#..JPP200302-200612

09141SPANNER

main09141-50050iMCU3#..JPP200302-200812

8 X 10

main09141-50060iMCU3#..JPP200302-200812

12 X 14

09150WRENCH, HUB NUT BOX

main09150-48010iMCU3#..JPP200302-200812

51960HOOK ASSY, FRONT

main51961-48030iMCU3#..JPP200302-200812

sub51961-44010

8 parts on this diagram · 1 diagram in section
