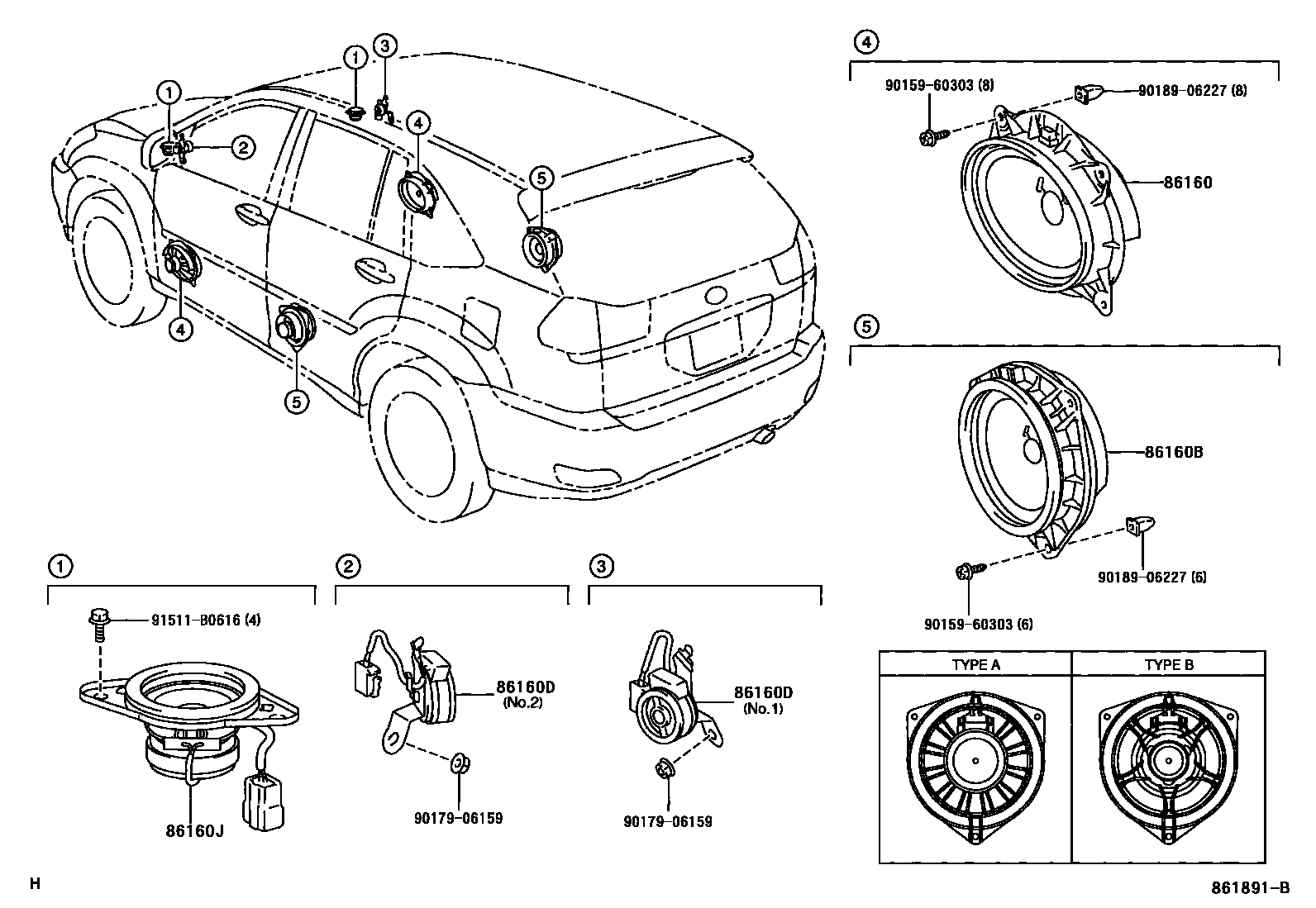

Toyota LEXUS RX330/350(JPP) — SPEAKER

0001 1W(8 SPEAKER) 0002 1W(11 SPEAKER)

86160SPEAKER ASSY, FRONT NO.1

main86160-0E070iGSU3#..JPP200302-200812

86160BSPEAKER ASSY, REAR

main86160-0E080iMCU3#..JPP200302-200601

TYPE A:REFER ILLUST.

main86160-0E080iGSU3#..JPP200601-200812

86160DSPEAKER ASSY, STEREO COMPONENT, FRONT

main86160-0E040iGSU3#..JPP200302-200812

NO.1

main86160-0E050iMCU3#..JPP200302-200812

NO.2

86160JSPEAKER ASSY, FRONT NO.3

main86160-0E060iMCU3#..JPP200302-200812

9015960303

main90159-60303

9017906159

main90179-06159

9018906227

main90189-06227

91511B0616

main91511-B0616

8 parts on this diagram · 2 diagrams in section
