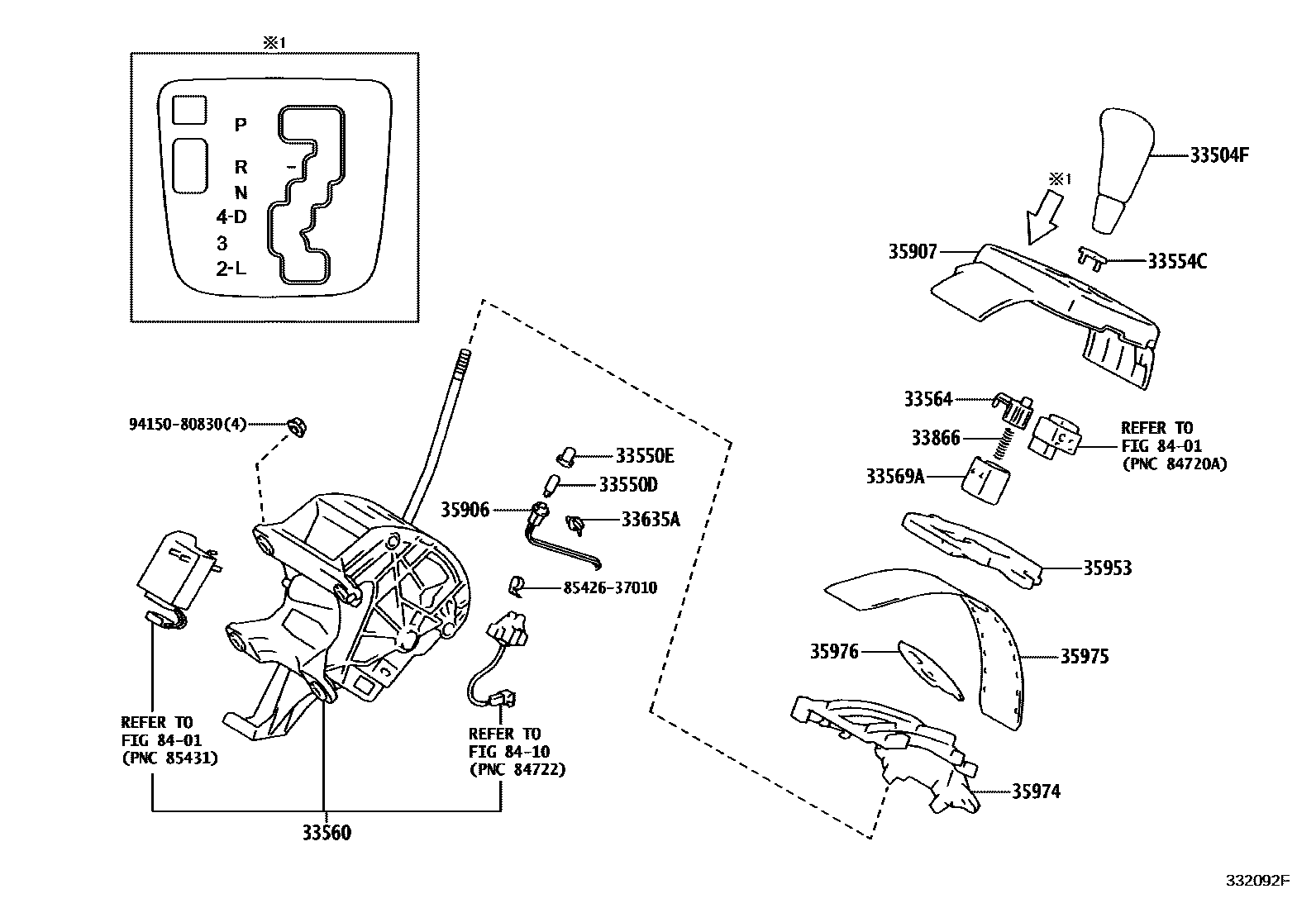

Toyota LEXUS RX330/350(JPP) — SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-48010-C0iMCU3#..JPP200302-200408

BLACK,TRIM1#,2#

main33504-48010-E0iMCU3#..JPP200302-200408

SANDAL WOOD,TRIM0#

main33504-48020-E0iGSU3#..JPP200408-200701

MD.BROWN,TRIM1#,2#

sub33504-48020

main33504-48020-E0iGSU3#..JPP200701-200812

MD.BROWN,TRIM1#,2#,MARK = A

sub33504-48020

main33504-48020-E1iGSU3#..JPP200408-200701

LIGHTBROWN,TRIM0#

sub33504-48020

main33504-48020-E1iGSU3#..JPP200701-200812

LIGHTBROWN,TRIM0#,MARK = A

sub33504-48020

main33504-48050-B0iGSU3#..JPP200701-200812

DK.GRAY,TRIM1#,MARK = J

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iGSU3#..JPP200302-200812

14V 1.4W

33550ECAP, POSITION INDICATOR LAMP

main90339-04055iMCU3#..JPP200302-200812

sub35956-75010

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-48030iMCU3#..JPP200302-200812

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-48130iMCU3#..JPP200302-200812

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-48020iMCU3#..JPP200302-200812

33569AGUIDE, SHIFT LOCK RELEASE BUTTON

main33569-48020iMCU3#..JPP200302-200812

33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)

main33635-48030iMCU3#..JPP200302-200812

33866SPRING, SHIFT LOCK RELEASE

main33866-48010iMCU3#..JPP200302-200812

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-48030iMCU3#..JPP200302-200812

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-48050iMCU3#..JPP200302-200812

35953GUIDE, POSITION INDICATOR LIGHT

main35953-48030iMCU3#..JPP200302-200812

35974HOUSING, POSITION INDICATOR, LOWER

main35974-48050iMCU3#..JPP200302-200812

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-48040iMCU3#..JPP200302-200812

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-48020iMCU3#..JPP200302-200812

8401

8410

8542637010CLAMP, OVER DRIVE SOLENOID

main85426-37010

9415080830

main94150-80830

19 parts on this diagram · 2 diagrams in section
