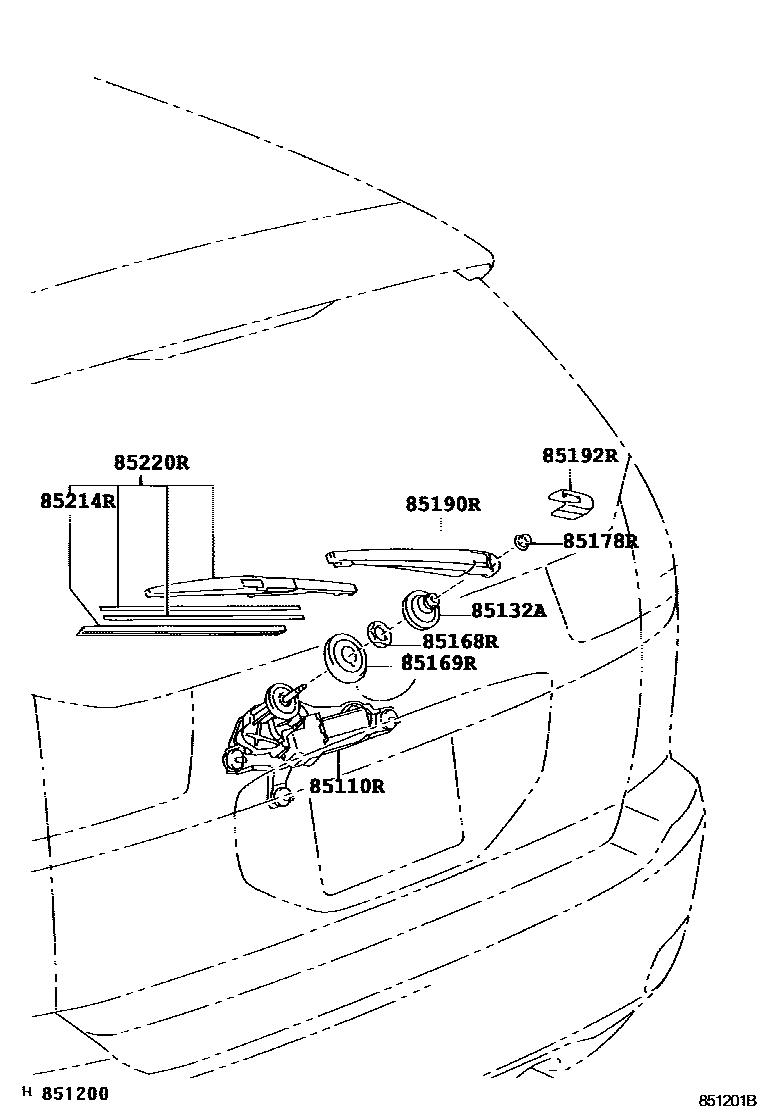

Toyota LEXUS RX330/350(JPP) — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-48030iGSU3#..JPP200302-200812

85132ACOVER, REAR WIPER SHAFT

main85132-53010iMCU3#..JPP200302-200812

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iMCU3#..JPP200302-200812

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-53010iMCU3#..JPP200302-200812

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iGSU3#..JPP200302-200812

85190RARM ASSY, REAR WIPER

main85241-48050iMCU3#..JPP200302-200812

85192RCOVER, REAR WIPER ARM

main85292-35010iMCU3#..JPP200302-200812

85214RRUBBER, REAR WIPER

main85214-30280iMCU3#..JPP200302-200812

85220RBLADE ASSY, REAR WIPER

main85242-48030iMCU3#..JPP200405-200812

main85242-63010iMCU3#..JPP200302-200405

9 parts on this diagram · 1 diagram in section
