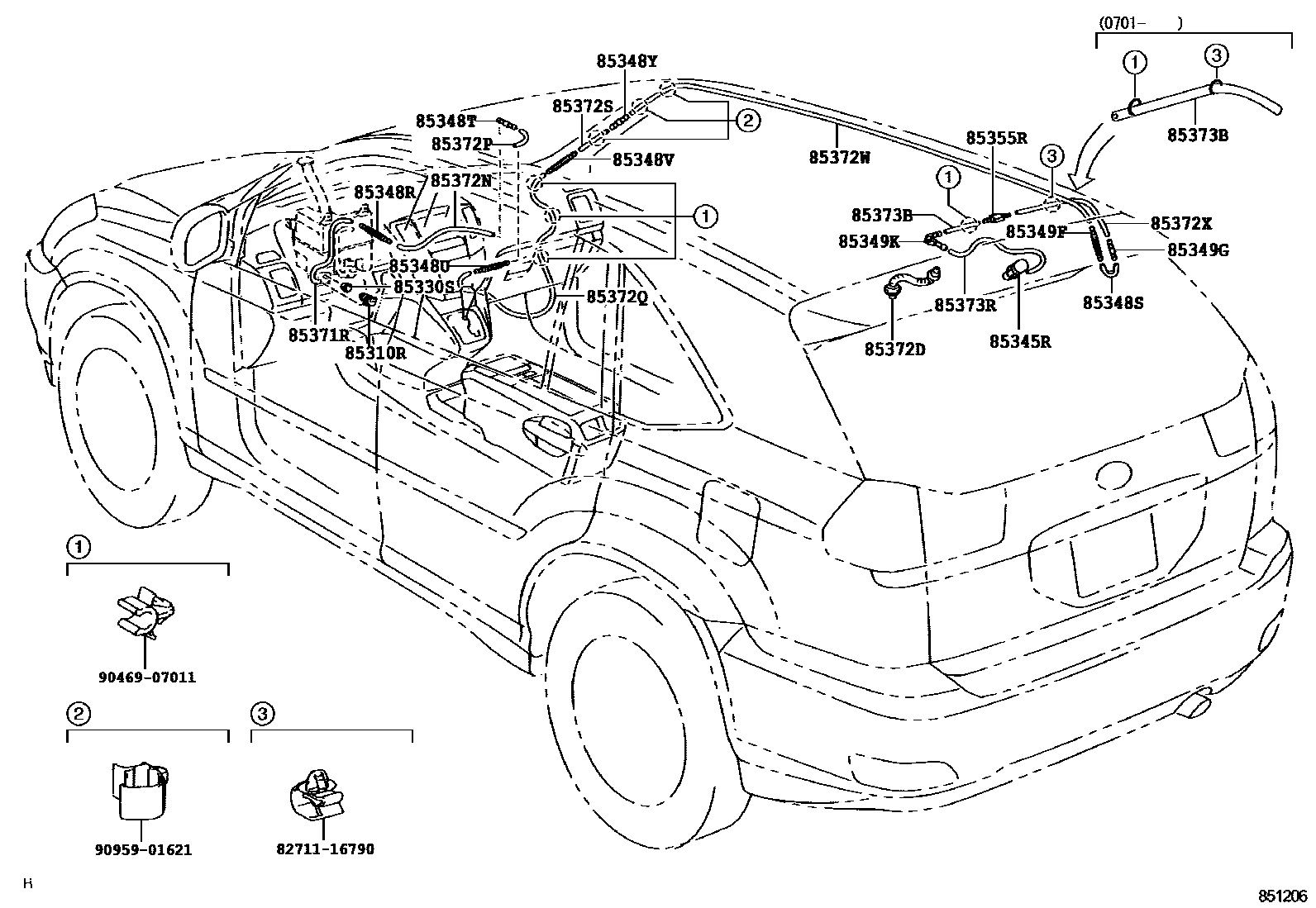

Toyota LEXUS RX330/350(JPP) — REAR WASHER
85310RMOTOR ASSY, REAR WASHER
KOREA SPEC&W/SEAT HEATER
TAIWAN SPEC&W/SEAT HEATER
85330SBUSH, REAR WASHER JAR
TAIWAN SPEC&W/SEAT HEATER
KOREA SPEC&W/SEAT HEATER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349KJOINT, REAR WASHER ELBOW, NO.2
85355RVALVE, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1000(*H,L=370),KOREA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER)
L=1000(*H,L=370),CANADA SPEC
L=1000(*H,L=370),CANADA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER)
L=1000(*H,L=370),SEAT HEATER-WITH(DRIVER & PASSENGER)
L=1000(*H,L=370)
L=1000(*H,L=370),TAIWAN SPEC&W/SEAT HEATER
L=1000(*H,L=370),CANADA SPEC&W/SEAT HEATER
L=1000(*H,L=370),W/SEAT HEATER
L=1000(*H,L=370),KOREA SPEC&W/SEAT HEATER
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1800(*H,L=890)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=50)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1800(*H,L=1080)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=50)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=3300(*H,L=2550)
L=3300(*H,L=2550)
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=1800(*H,L=530)
L=1800(*H,L=530)
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
L=1800(*H,L=50)
L=1800(*H,L=50)
L=1800(*H,L=600)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=380)
L=1450(*H,L=380)
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
9046907011
main90469-07011
9095901621
main90959-01621
26 parts on this diagram · 1 diagram in section
