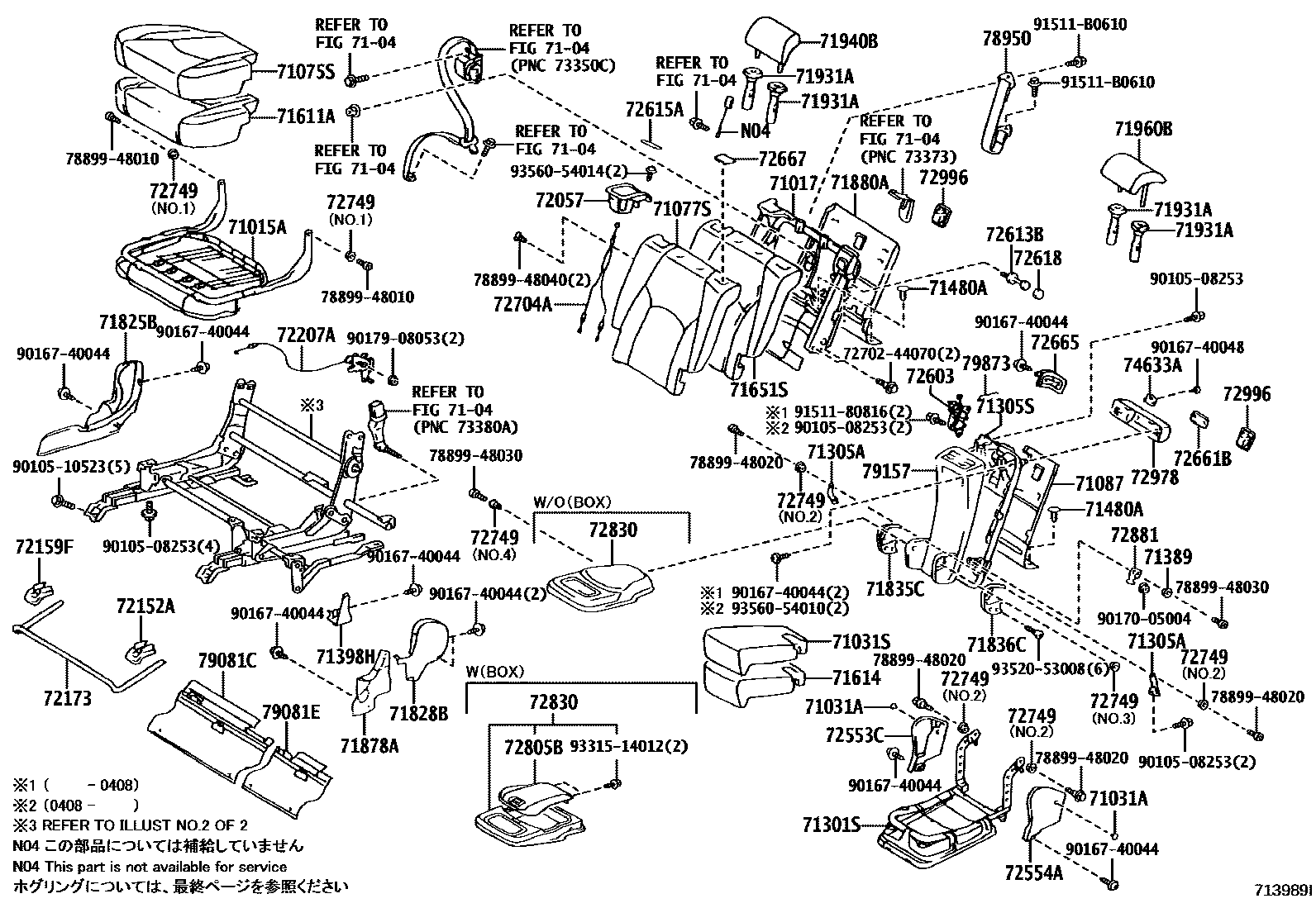

Toyota LEXUS RX330/350(JPP) — REAR SEAT & SEAT TRACK

Parts diagram
71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH
main71650-48010i200302-200812
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-48100i200302-200812
71031ACLIP, CENTER SEAT CUSHION
main90467-05159-A0i200307-200812
IVORY,TRIM0#
sub90467-05159
main90467-05159-B1i200307-200812
LT.GRAY,TRIM1#
sub90467-05159
main90467-05159-C0i200307-200812
BLACK,TRIM2#
sub90467-05159
71031SCOVER SUB-ASSY, CENTER SEAT CUSHION
main71097-48010-A0i200302-200812
IVORY,TRIM0#
sub71097-48011
7104
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
main71075-48180-A0i200302-200812
IVORY,TRIM0#
sub71075-48181
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-48210-A0i200302-200408
IVORY,TRIM0#
sub71077-48211
main71077-48211-A0i200408-200608
IVORY,TRIM0#
sub71077-48211
sub71077-48212
main71077-48211-A1i200608-200812
IVORY,TRIM0#
sub71077-48211
sub71077-48212
71087BOARD SUB-ASSY, REAR SEATBACK
main71087-48010-A0i200302-200812
IVORY,TRIM0#
sub71087-48011
main71087-48010-B1i200302-200812
LT.GRAY,TRIM1#
sub71087-48011
main71087-48010-C1i200302-200812
BLACK,TRIM2#
sub71087-48011
71301SFRAME SUB-ASSY, CENTER SEAT CUSHION
main71031-48010i200302-200812
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
main71343-48010i200302-200812
RH
main71343-48020i200302-200812
LH
71305SFRAME SUB-ASSY, CENTER SEATBACK
main71305-48010i200302-200812
71389SPACER, CENTER SEAT HINGE
main72749-48030i200302-200812
71398HCOVER, CENTER SEAT HINGE, UPPER LH
main71398-48010-A0i200302-200812
IVORY,TRIM0#
sub71398-48030
main71398-48010-B0i200302-200812
LT.GRAY,TRIM1#
sub71398-48030
main71398-48010-C0i200302-200812
BLACK,TRIM2#
sub71398-48030
71480ACLIP (FOR REAR SEATBACK)
main90467-07049-C0i200302-200408
BLACK,TRIM0#,1#,2#
sub90467-07049
main90467-07049-C0i200408-200812
BLACK
sub90467-07049
71611APAD, REAR SEAT CUSHION, RH
main71611-48050i200302-200812
71614PAD, REAR SEAT CUSHION, CENTER
main71614-48010i200302-200812
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-48070i200302-200812
71825BMOULDING, REAR SEAT CUSHION, RH
main71825-48030-A0i200302-200812
IVORY,TRIM0#
main71825-48030-B0i200302-200812
LT.GRAY,TRIM1#
main71825-48030-C0i200302-200812
BLACK,TRIM2#
71828BMOULDING, REAR SEAT CUSHION, REAR RH
main71828-48030-A0i200302-200812
IVORY,TRIM0#
sub71828-48030
main71828-48030-B0i200302-200812
LT.GRAY,TRIM1#
sub71828-48030
main71828-48030-C0i200302-200812
BLACK,TRIM2#
sub71828-48030
71835CMOULDING, REAR SEATBACK, RH
main71835-48010-A0i200302-200812
IVORY,TRIM0#
sub71835-48010
main71835-48010-B0i200302-200812
LT.GRAY,TRIM1#
sub71835-48010
main71835-48010-C0i200302-200812
BLACK,TRIM2#
sub71835-48010
71836CMOULDING, REAR SEATBACK, LH
main71836-48010-A0i200302-200812
IVORY,TRIM0#
sub71836-48010
main71836-48010-B0i200302-200812
LT.GRAY,TRIM1#
sub71836-48010
main71836-48010-C0i200302-200812
BLACK,TRIM2#
sub71836-48010
71878ACOVER, REAR SEAT RECLINING, INNER RH
main71878-48020-A0i200302-200812
IVORY,TRIM0#
sub71878-48020
main71878-48020-B0i200302-200812
LT.GRAY,TRIM1#
sub71878-48020
main71878-48020-C0i200302-200812
BLACK,TRIM2#
sub71878-48020
71880ACARPET ASSY, REAR SEATBACK BOARD, RH
main71880-48100-A0i200302-200812
IVORY,TRIM0#
sub71880-48101
main71880-48100-B1i200302-200812
LT.GRAY,TRIM1#
sub71880-48101
main71880-48100-C1i200302-200812
BLACK,TRIM2#
sub71880-48101
71931ASUPPORT, REAR SEAT HEADREST
main71930-42020-A0i200302-200812
W(LOCK)&W(BUTTON),IVORY,TRIM0#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-B2i200302-200812
W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-C0i200302-200812
W(LOCK)&W(BUTTON),BLACK,TRIM2#
sub71930-52030
sub71930-42020
sub71930-44020
main71931-42020-A0i200302-200812
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
sub71931-42020
main71931-42020-B2i200302-200812
W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1#
sub71931-42020
main71931-42020-C0i200302-200812
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
sub71931-42020
main71955-48010-A0i200302-200812
W(LOCK),IVORY,TRIM0#,CENTER
sub71955-48020
main71955-48010-B0i200302-200812
W(LOCK),LT.GRAY,TRIM1#,CENTER
sub71955-48020
main71955-48010-C0i200302-200812
W(LOCK),BLACK,TRIM2#,CENTER
sub71955-48020
main71956-48010-A0i200302-200812
W/O(LOCK),IVORY,TRIM0#,CENTER
sub71956-48010
main71956-48010-B0i200302-200812
W/O(LOCK),LT.GRAY,TRIM1#,CENTER
sub71956-48010
main71956-48010-C0i200302-200812
W/O(LOCK),BLACK,TRIM2#,CENTER
sub71956-48010
71940BHEADREST ASSY, REAR SEAT, RH
main71940-48190-A0i200302-200812
IVORY,TRIM0#
sub71940-48191
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-48210-A0i200302-200812
IVORY,TRIM0#
sub71960-48211
72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
main72057-48030-A0i200302-200408
IVORY,TRIM0#
sub72057-48030
main72057-48030-B0i200302-200408
LT.GRAY,TRIM1#
sub72057-48030
main72057-48030-C0i200302-200408
BLACK,TRIM2#
sub72057-48030
main72058-48010-A0i200408-200812
IVORY,TRIM0#
sub72058-48010
main72058-48010-B0i200408-200812
LT.GRAY,TRIM1#
sub72058-48010
main72058-48010-C0i200408-200812
BLACK,TRIM2#
sub72058-48010
72152ACOVER, REAR SEAT TRACK BRACKET, INNER
main72159-48020-A0i200302-200812
IVORY,TRIM0#
main72159-48020-B0i200302-200812
LT.GRAY,TRIM1#
main72159-48020-C0i200302-200812
BLACK,TRIM2#
72159FCOVER, REAR SEAT TRACK BRACKET, RH
main72152-48010-A0i200302-200812
IVORY,TRIM0#
main72152-48010-B0i200302-200812
LT.GRAY,TRIM1#
main72152-48010-C0i200302-200812
BLACK,TRIM2#
72173HANDLE, REAR SEAT TRACK ADJUSTING
main72173-48010i200302-200408
sub72173-48030
main72173-48030i200409-200812
72207APLATE, SEAT TRACK STOP RH
main72207-48010i200302-200812
72553CPROTECTOR, RECLINING COVER, RH
main72553-48060-A0i200302-200812
IVORY,TRIM0#
sub72553-48060
main72553-48060-B0i200302-200812
LT.GRAY,TRIM1#
sub72553-48060
main72553-48060-C0i200302-200812
BLACK,TRIM2#
sub72553-48060
72554APROTECTOR, RECLINING COVER, LH
main72554-48060-A0i200302-200812
IVORY,TRIM0#
sub72554-48060
main72554-48060-B0i200302-200812
LT.GRAY,TRIM1#
sub72554-48060
main72554-48060-C0i200302-200812
BLACK,TRIM2#
sub72554-48060
72603LOCK SUB-ASSY, REAR SEATBACK, RH
main72630-48010i200302-200812
72613BSTRIKER, REAR SEAT LOCK
main72613-48010i200302-200812
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
main72615-48020-A0i200302-200812
IVORY,TRIM0#
sub72615-48020
main72615-48020-B0i200302-200812
LT.GRAY,TRIM1#
sub72615-48020
main72615-48020-C0i200302-200812
BLACK,TRIM2#
sub72615-48020
72618PROTECTOR, REAR SEATBACK LOCK STRIKER
main72618-48010i200302-200812
72661BLEVER, REAR SEATBACK ROD CONTROL, OUTER
main72661-48010-A0i200302-200812
IVORY,TRIM0#
sub72661-48010
main72661-48010-B0i200302-200812
LT.GRAY,TRIM1#
sub72661-48010
main72661-48010-C0i200302-200812
BLACK,TRIM2#
sub72661-48010
72665COVER, REAR SEATBACK LOCK, RH
main72665-48010-A0i200302-200812
IVORY,TRIM0#
main72665-48010-B0i200302-200812
LT.GRAY,TRIM1#
main72665-48010-C0i200302-200812
BLACK,TRIM2#
72667BEZEL, REAR SEATBACK LOCK, UPPER
main72667-48010-A0i200302-200812
IVORY,TRIM0#
main72667-48010-B0i200302-200601
LT.GRAY,TRIM1#
main72667-48010-C0i200302-200601
BLACK,TRIM2#
72704ACABLE, REAR SEAT RECLINING CONTROL
main72704-48010i200302-200812
72749SPACER, REAR SEAT RECLINING
main72749-48010i200302-200812
NO.1
main72749-48020i200302-200812
NO.2
main72749-48040i200302-200812
NO.3
main72749-48050i200302-200812
NO.4
72805BDOOR SUB-ASSY, REAR SEAT CENTER ARMREST
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-48150-A0i200302-200608
IVORY,TRIM0#
sub72830-48151
sub72830-48150
main72830-48150-A3i200608-200812
IVORY,TRIM0#
sub72830-48151
sub72830-48150
72881SUPPORT, REAR SEAT CENTER ARMREST, RH
main72881-48010i200302-200812
72978COVER, NO.2 CENTER SEATBACK
main72978-48010-A0i200302-200812
IVORY,TRIM0#
sub72978-48010
main72978-48010-B0i200302-200812
LT.GRAY,TRIM1#
sub72978-48010
main72978-48010-C0i200302-200812
BLACK,TRIM2#
sub72978-48010
72996COVER, REAR SEATBACK, RH
main72996-48030-A0i200302-200812
IVORY,TRIM0#
sub72996-48030
main72996-48030-B0i200302-200812
LT.GRAY,TRIM1#
sub72996-48030
main72996-48030-C0i200302-200812
BLACK,TRIM2#
sub72996-48030
74633ACAP, COAT HOOK
main74633-48010-A0i200302-200812
IVORY,TRIM0#
main74633-48010-B0i200302-200812
LT.GRAY,TRIM1#
main74633-48010-C0i200302-200812
BLACK,TRIM2#
78950BAND ASSY, FOLD SEAT STOPPER, NO.1
main78950-48030i200302-200812
79081CCOVER, REAR SEAT, NO.1
main79081-48010i200302-200812
79081ECOVER, REAR SEAT, NO.3
main79081-48030i200302-200812
sub79081-48170
79157COVER, NO.1 SEATBACK
main79157-48010-A0i200302-200707
IVORY,TRIM0#
sub79157-48010
main79157-48010-B0i200302-200707
LT.GRAY,TRIM1#
sub79157-48010
main79157-48010-C0i200302-200707
BLACK,TRIM2#
sub79157-48010
main79157-48050-A0i200708-200812
IVORY,TRIM0#
main79157-48050-B0i200708-200812
LT.GRAY,TRIM1#
main79157-48050-C0i200708-200812
BLACK,TRIM2#
79873WIRE, FOLD SEATBACK
main79873-48010i200302-200604
sub79873-48011
main79873-48011i200605-200812
7270244070BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-44070
7889948010BOLT, FRONT SEAT
main78899-48010
7889948020BOLT, FRONT SEAT
main78899-48020
7889948030BOLT, FRONT SEAT
main78899-48030
7889948040BOLT, FRONT SEAT
main78899-48040
9010508253
main90105-08253
9010510523
main90105-10523
9016740044
main90167-40044
9016740048
main90167-40048
9017005004
main90170-05004
9017908053
main90179-08053
9151180816
main91511-80816
91511B0610
main91511-B0610
9331514012
main93315-14012
9352053008
main93520-53008
9356054010
main93560-54010
9356054014
main93560-54014

70 parts on this diagram · 3 diagrams in section
