Toyota LEXUS RX330/350(JPP) — REAR MOULDING

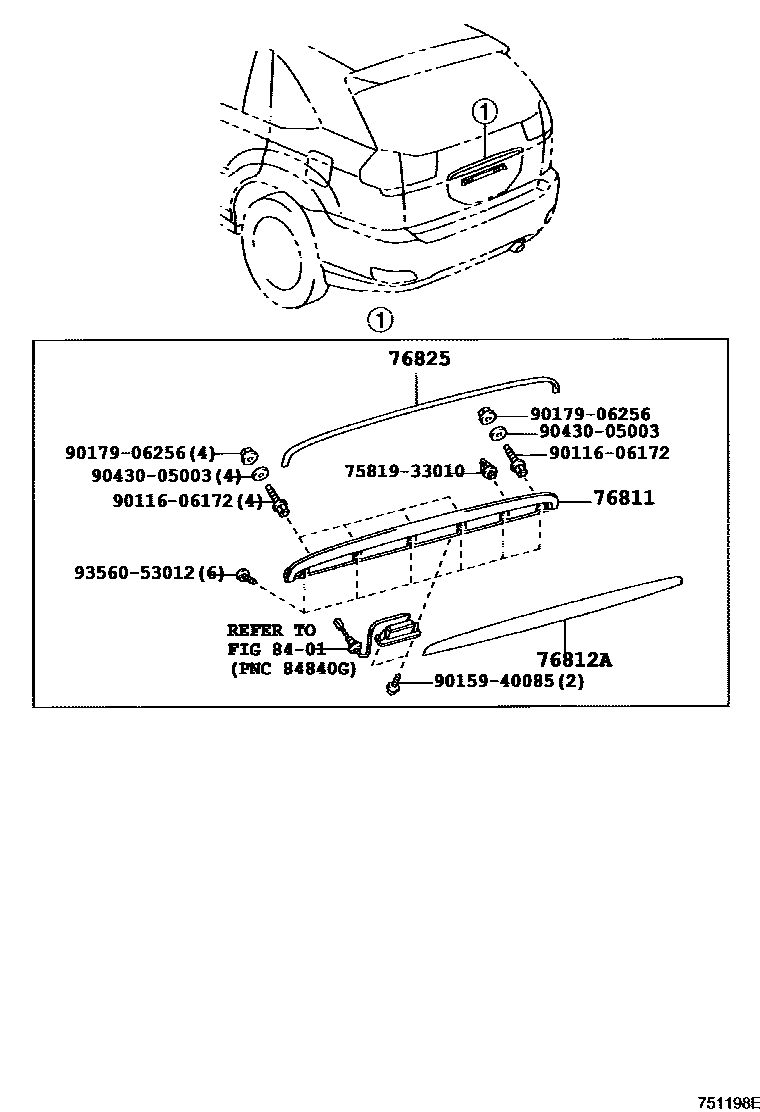

Parts diagram

76811GARNISH, BACK DOOR, OUTSIDE

main76811-48050-A0i200302-200812

WHITE PEARL CS.,062

main76811-48050-B0i200302-200801

SILVER ME.,1C0

main76811-48050-B1i200302-200812

DK.GRAY MC.,1E0

main76811-48050-B3i200801-200812

SILVER ME.,1F7

main76811-48050-B4i200801-200812

DK.GRAY MC.,1G0

main76811-48050-C0i200302-200812

BLACK,202

main76811-48050-C1i200801-200812

BLACK,212

main76811-48050-D2i200801-200812

RED MC.CS.,3R1

main76811-48050-E0i200302-200801

BEIGE ME.,4R4

main76811-48050-E1i200701-200812

COPPER BROWN MC.,4S6

main76811-48050-E2i200801-200812

BEIGE ME.,4T1

main76811-48050-E4i200801-200812

SABLE M.M.,4T5

main76811-48050-G0i200302-200812

LT.OLIVE M.M.,6T1

main76811-48050-G1i200302-200701

DK.GREEN MC.,6T3

main76811-48050-G2i200701-200801

MD.GREEN M.M.,6U3

main76811-48050-J0i200302-200812

LT.BLUE ME.,8R6

main76811-48050-J1i200302-200812

DK.BLUE M.M.,8R7

main76811-48050-J2i200302-200801

LT.BLUE M.M.,8R8

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-48010i200302-200812

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-48010i200302-200812

8401

7581933010CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010

9011606172

main90116-06172

9015940085

main90159-40085

9017906256

main90179-06256

9043005003

main90430-05003

9356053012

main93560-53012

10 parts on this diagram · 1 diagram in section
