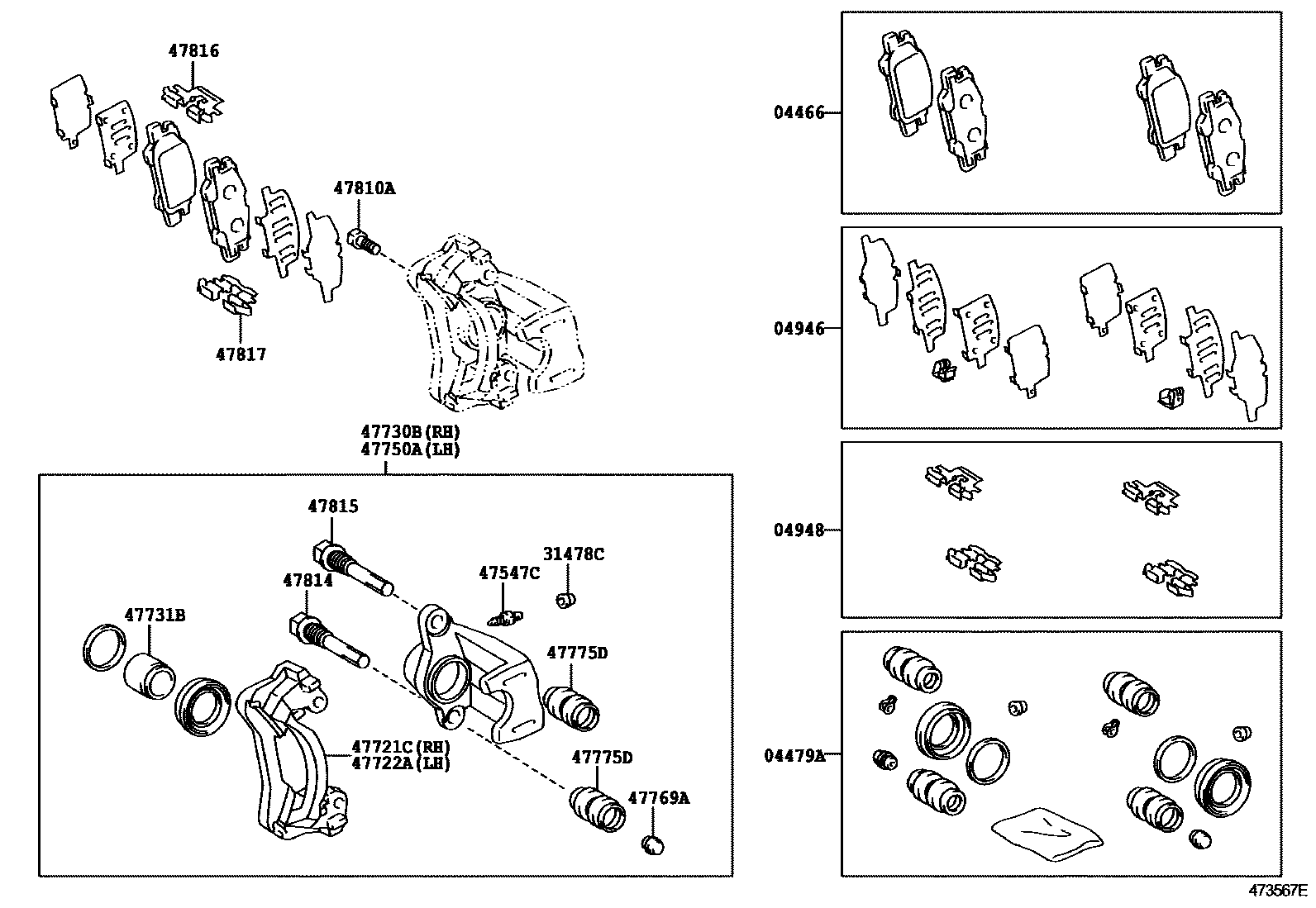

Toyota LEXUS RX330/350(JPP) — REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-48030iMCU3#..JPP200302-200312

MARK AK PA544

sub04466-48060

main04466-48060iMCU3#..JPP200312-200812

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-48050iMCU3#..JPP200302-200812

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48040iMCU3#..JPP200302-200312

sub04946-48060

main04946-48060iMCU3#..JPP200312-200812

04948FITTING KIT, DISC BRAKE, REAR

main04948-48020iMCU3#..JPP200302-200812

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMCU3#..JPP200302-200812

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iMCU3#..JPP200302-200812

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-48050iMCU3#..JPP200302-200812

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-48050iMCU3#..JPP200302-200812

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-48050iMCU3#..JPP200302-200812

47731BPISTON, REAR DISC BRAKE

main47731-48050iMCU3#..JPP200302-200812

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-48050iMCU3#..JPP200302-200812

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-33020iMCU3#..JPP200302-200812

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-41030iMCU3#..JPP200302-200812

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iMCU3#..JPP200302-200812

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-48050iMCU3#..JPP200302-200812

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-48050iMCU3#..JPP200302-200812

47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-48050iMCU3#..JPP200302-200812

47817PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE)

main47817-48050iMCU3#..JPP200302-200812

18 parts on this diagram · 1 diagram in section
