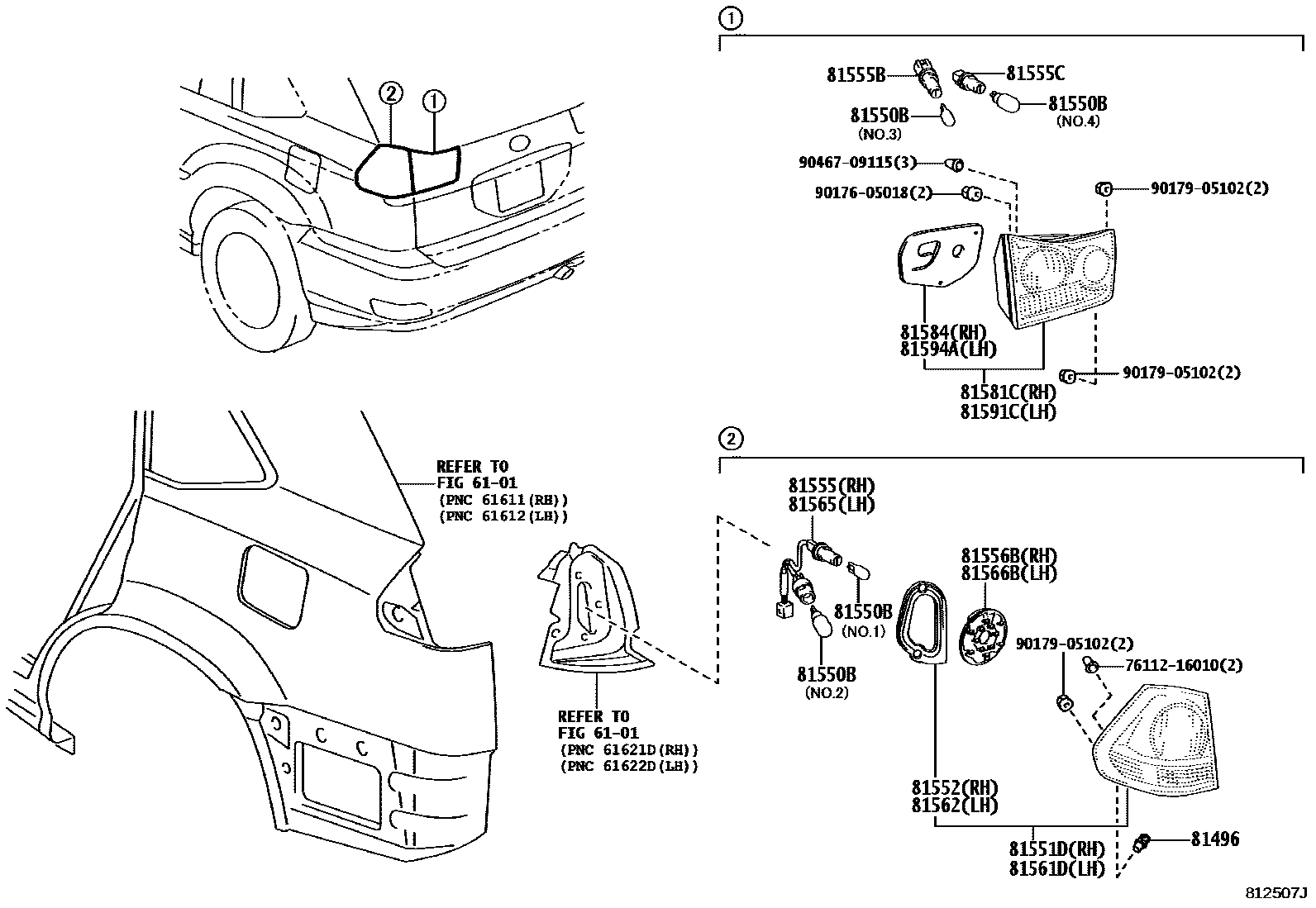

Toyota LEXUS RX330/350(JPP) — REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
81550BBULB(FOR REAR COMBINATION LAMP)
12V 16W,NO.4
12V 21W,AMBER,NO.2
12V 5W,NO.1,3
81552GASKET, REAR COMBINATION LAMP LENS, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555BSOCKET PLUG, NO.1
81555CSOCKET PLUG, NO.2
81556BLED, REAR COMBINATION LAMP, RH
FOR STOP
81562GASKET, REAR COMBINATION LAMP LENS, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81566BLED, REAR COMBINATION LAMP, LH
FOR STOP
81584PACKING, REAR LAMP RH
sub81584-48051
81594AGASKET, REAR LAMP LH
sub81594-48051
7611216010
main76112-16010
9017605018
main90176-05018
9017905102
main90179-05102
9046709115
main90467-09115
21 parts on this diagram · 1 diagram in section
