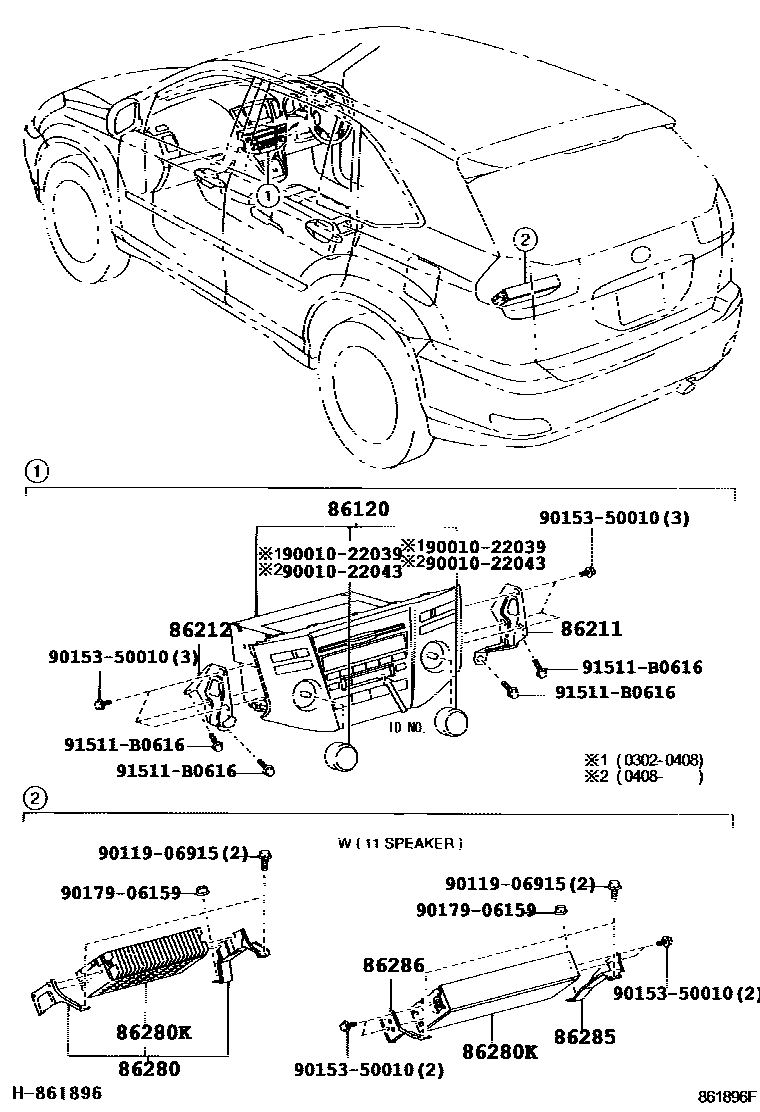

Toyota LEXUS RX330/350(JPP) — RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
PIONEER,ID=P6828,TYPE A:REFER ILLUST.
PIONEER,ID=P6826,AUDIO-AM/FM/CST/CDCHANGER 8SP,TYPE B:REFER ILLUST.
PIONEER,ID=P6827,AUDIO-MARK LEVINSON 11SP,TYPE C:REFER ILLUST.
PIONEER,ID=P7819,AUDIO-AM/FM/CST/CDCHANGER 8SP,TYPE G:REFER ILLUST.
PIONEER,ID=P7818,AUDIO-MARK LEVINSON 11SP,TYPE H:REFER ILLUST.
PIONEER,ID=P6848,AUDIO-MARK LEVINSON 11SP,TYPE K:REFER ILLUST.
PIONEER,ID=P6849,TYPE I:REFER ILLUST.
PIONEER,ID=P6847,AUDIO-AM/FM/CST/CDCHANGER 8SP,TYPE J:REFER ILLUST.
PIONEER,ID=P7841,AUDIO-AM/FM/CST/CDCHANGER 8SP,TYPE G:REFER ILLUST.
PIONEER,ID=P7840,AUDIO-MARK LEVINSON 11SP,TYPE H:REFER ILLUST.
PIONEER,ID=P1806
PIONEER,ID=P1805,AUDIO-MARK LEVINSON RBDS 11SPEAKER
PIONEER,ID=P6863,AUDIO-AM/FM/CST/CDCHANGER 8SP&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
PIONEER,ID=P1502,AUDIO-DVDCH/CST RBDS MARK LEVINSON 11SP&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
PIONEER,ID=P2811,KOREA SPEC&AUDIO-AMFM CDCH ML 11SP LHD
PIONEER,ID=P2508,KOREA SPEC&AUDIO-DVDCH/CST RBDS MARK LEVINSON 11SP&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86280AMPLIFIER ASSY, STEREO COMPONENT
86280KAMPLIFIER ASSY, STEREO COMPONENT
9001022039
main90010-22039
9001022043
main90010-22043
9011906915
main90119-06915
9015350010
main90153-50010
9017906159
main90179-06159
91511B0616
main91511-B0616
13 parts on this diagram · 5 diagrams in section
