Toyota LEXUS RX330/350(JPP) — RADIATOR & WATER OUTLET

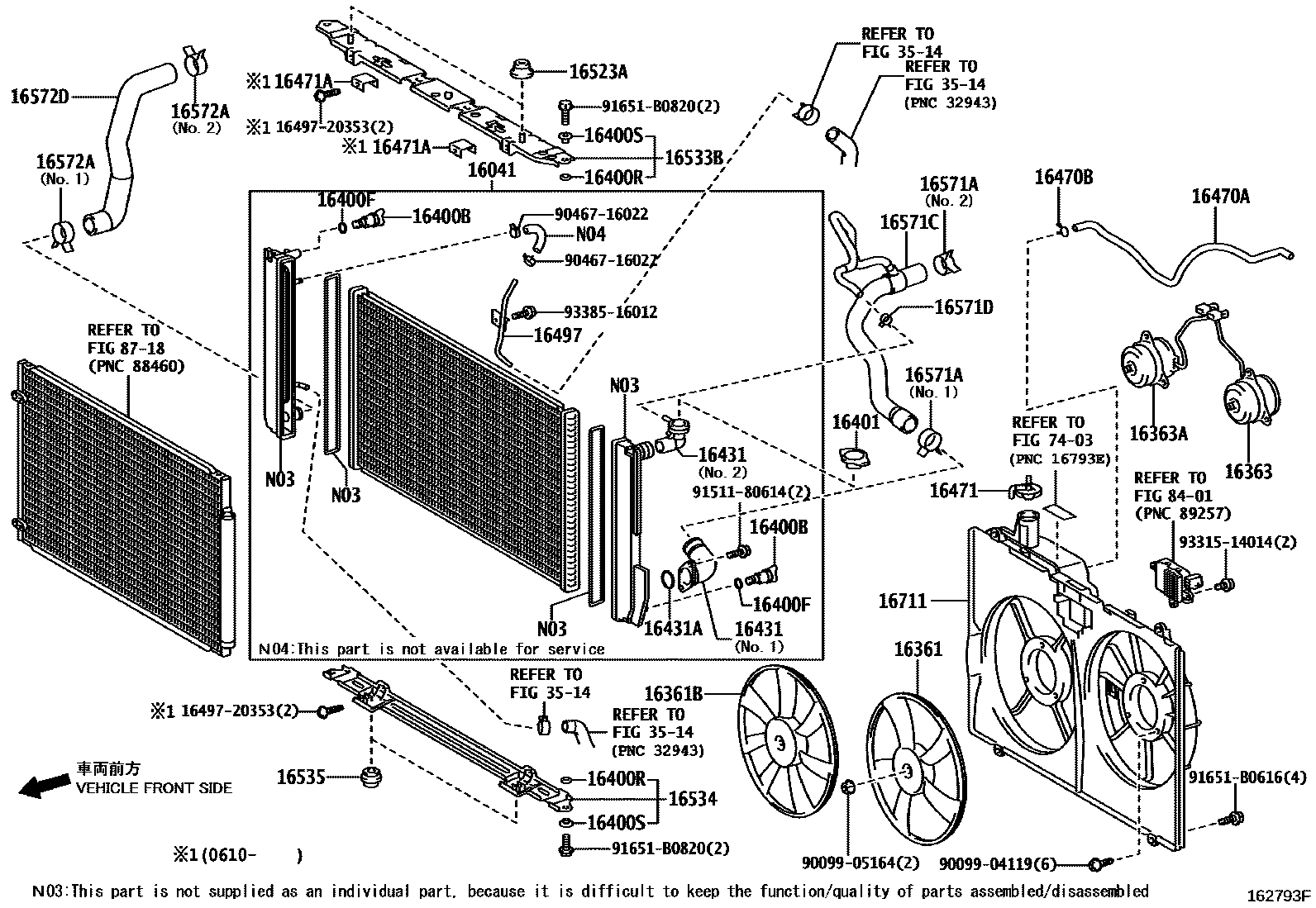

Parts diagram
16041RADIATOR ASSY, NO.2
main16041-20290i200302-200408
sub16041-20291
main16041-20311i200408-200410
sub16041-20312
main16041-20312i200411-200505
main16041-20313i200505-200601
sub16041-20314
main16041-31480i200601-200812
sub16041-31481
16361FAN
main16361-20180i200302-200601
main16361-31210i200601-200812
16361BFAN, NO.2
main16361-20190i200302-200505
main16361-20240i200505-200601
main16361-31220i200601-200812
16363MOTOR, COOLING FAN
main16363-20270i200302-200812
16363AMOTOR, COOLING FAN, NO.2
main16363-20280i200302-200601
main16363-31160i200601-200812
16400BPLUG, RADIATOR DRAIN COCK
main16417-20290i200302-200505
NO.1
main16417-20300i200302-200505
NO.2
main16417-21280i200601-200812
main16417-28530i200505-200601
NO.1
main23322-54010i200505-200601
NO.2
16400FPACKING(FOR RADIATOR DRAIN COCK)
main16418-20290i200302-200601
NO.1
main16492-21050i200601-200812
main16492-21050i200505-200601
NO.2
main96711-19007i200302-200505
NO.2
16400RBUSHING(FOR RADIATOR)
main16444-75180i200601-200812
16400SCOLLAR(FOR RADIATOR)
main16445-75180i200601-200812
16401CAP SUB-ASSY, RADIATOR
main16401-20310i200411-200601
sub16401-20353
main16401-31480i200601-200812
main16401-72090i200302-200410
sub16401-20353
16431INLET, RADIATOR WATER
main16431-31480i200601-200812
NO.1
main16431-31490i200601-200812
NO.2
16431ARING, O(FOR RADIATOR WATER INLET)
main16492-31480i200601-200812
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
main16377-20140i200302-200505
main16377-20142i200505-200812
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
main90467-11085i200302-200812
16471CAP SUB-ASSY, RESERVE TANK
main16471-20020i200302-200812
16471ASUPPORT SUB-ASSY
main16406-20300i200505-200812
16497INLET SUB-ASSY
main16495-20302i200505-200601
main16495-31480i200601-200812
16523ACUSHION, RADIATOR SUPPORT
main16523-20010i200302-200601
main16523-20020i200601-200812
16533BSUPPORT, RADIATOR, NO.1
main16505-31010i200601-200812
16534SUPPORT, RADIATOR, NO.2
main16506-31010i200601-200812
16535SUPPORT, RADIATOR, LOWER
main16535-20030i200302-200812
16571HOSE, RADIATOR, INLET
main16571-20080i200302-200505
main16571-20081i200505-200601
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
main90466-35001i200302
main90466-35001i200601-200812
NO.2
main90466-41006i200601-200812
NO.1
16571CHOSE, RADIATOR, NO.1
main16571-31210i200601-200812
16571DCLIP, RADIATOR HOSE, NO.1
main90467-15022i200601-200812
16572HOSE, RADIATOR, OUTLET
main16572-20100i200302
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
main90466-35001i200302-200812
NO.2
main90466-41006i200302-200812
NO.1
16572DHOSE, RADIATOR, NO.2
main16572-31230i200601-200812
16711SHROUD, FAN
main16711-20160i200302-200505
main16711-20161i200505-200601
main16711-31310i200601-200812
3514
7403
8401
8718
1649720353INLET SUB-ASSY
main16497-20353
9009904119
main90099-04119
9009905164
main90099-05164
9046716022
main90467-16022
9151180614
main91511-80614
91651B0616
main91651-B0616
91651B0820
main91651-B0820
9331514014
main93315-14014
9338516012
main93385-16012

42 parts on this diagram · 5 diagrams in section
