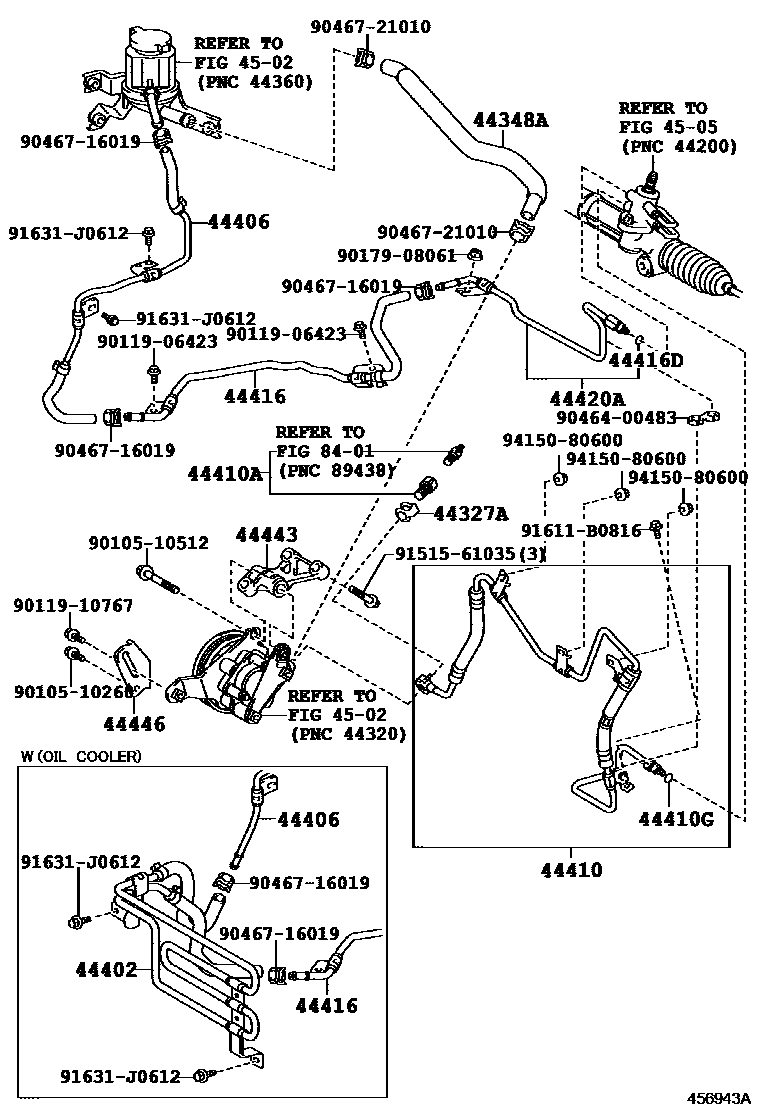

Toyota LEXUS RX330/350(JPP) — POWER STEERING TUBE

0001 1 0002 1 0003 1W(OIL COOLER) 0004 1W/O OIL COOLER

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iMCU3#..JPP200302-200812

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-48080iMCU3#..JPP200302-200601

main44348-48090iGSU3#..JPP200601-200812

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-48041

main44402-48050

44406TUBE SUB-ASSY, RETURN

main44406-48091iMCU3#..JPP200302-200601

main44406-48140iGSU3#..JPP200601-200812

44410TUBE ASSY, PRESSURE FEED

main44410-48120iMCU3#..JPP200302-200309

sub44410-48121

sub17126-20040

main44410-48121iMCU3#..JPP200309-200601

main44410-48180iGSU3#..JPP200601-200812

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iMCU3#..JPP200302-200601

main96341-41603iGSU3#..JPP200601-200812

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009iMCU3#..JPP200302-200812

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-48071iMCU3#..JPP200302-200601

main44416-48110iGSU3#..JPP200601-200608

sub44416-48111

main44416-48111iGSU3#..JPP200609-200812

44416DRING, O(FOR RETURN TUBE)

main90301-07009iMCU3#..JPP200302-200812

44420ATUBE ASSY, RETURN

main44420-48060iMCU3#..JPP200302-200601

main44420-48090iGSU3#..JPP200601-200812

44443BRACKET, PUMP

main44443-33041iMCU3#..JPP200302-200601

44446STRUT, ADJUSTING

main44446-28030iMCU3#..JPP200302-200601

4502

4505

8401

9010510260

main90105-10260

9010510512

main90105-10512

9011906423

main90119-06423

9011910767

main90119-10767

9017908061

main90179-08061

9046400483

main90464-00483

9046716019

main90467-16019

9046721010

main90467-21010

9151561035

main91515-61035

91611B0816

main91611-B0816

91631J0612

main91631-J0612

9415080600

main94150-80600

27 parts on this diagram · 4 diagrams in section
