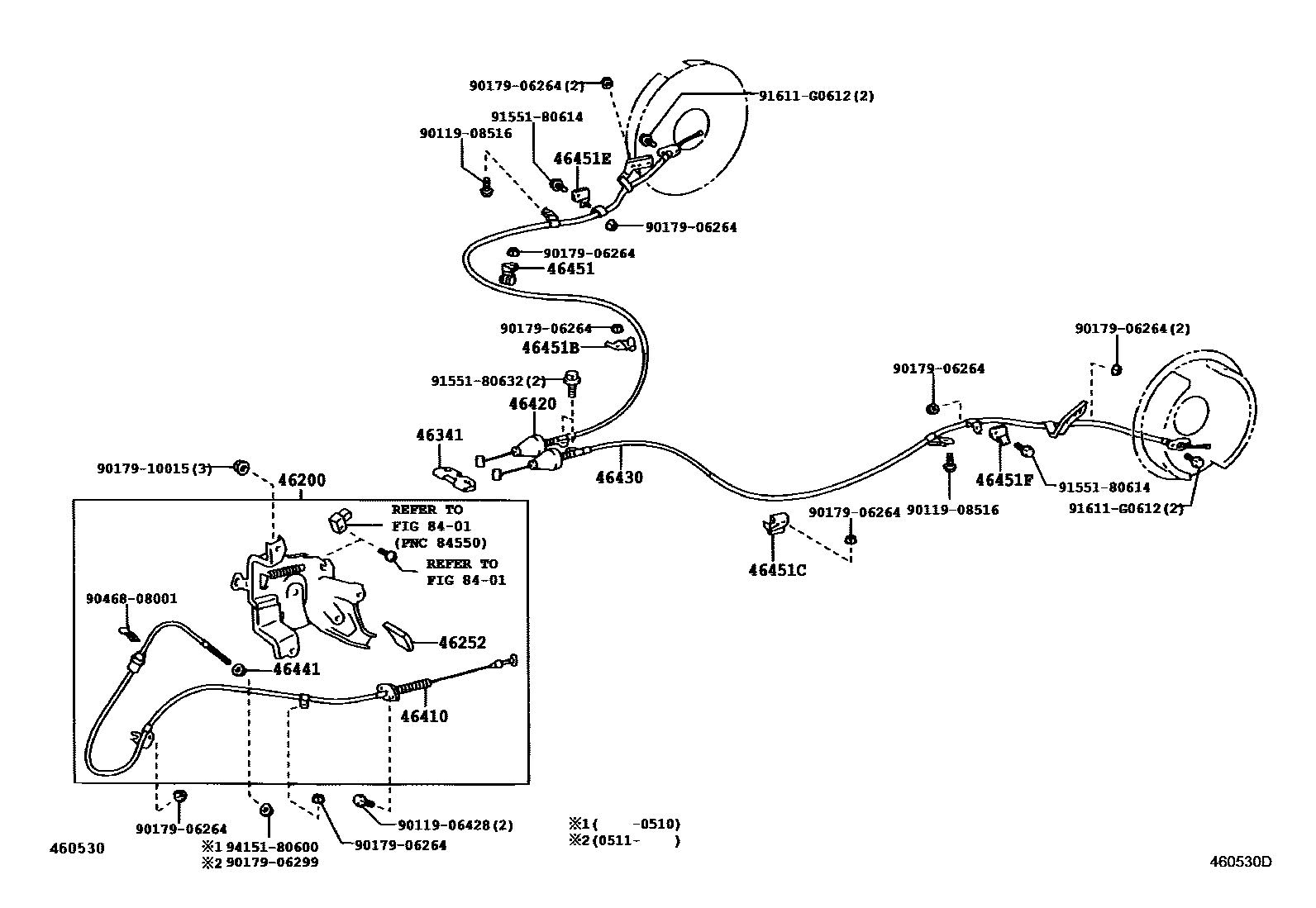

Toyota LEXUS RX330/350(JPP) — PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-48050iMCU3#..JPP200302-200812

46252PAD, PARKING PEDAL

main46252-68010iMCU3#..JPP200302-200812

46341EQUALIZER, PARKING BRAKE

main46341-48010iMCU3#..JPP200302-200812

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-48050iMCU3#..JPP200302-200812

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-48090iMCU3#..JPP200302-200710

sub46420-48170

main46420-48170iGSU3#..JPP200711-200812

sub46420-48171

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-48090iMCU3#..JPP200302-200710

sub46430-48170

main46430-48170iGSU3#..JPP200711-200812

sub46430-48171

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iMCU3#..JPP200302-200812

46451BRACKET, CABLE SUPPORT

main46451-48050iMCU3#..JPP200302-200812

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-48060iMCU3#..JPP200302-200812

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-48070iMCU3#..JPP200302-200812

46451EBRACKET, CABLE GUIDE SUPPORT, NO.1

main46451-48080iMCU3#..JPP200302-200812

46451FBRACKET, CABLE SUPPORT

main46451-48090iMCU3#..JPP200302-200812

8401

9011906428

main90119-06428

9011908516

main90119-08516

9017906264

main90179-06264

9017906299

main90179-06299

9017910015

main90179-10015

9046808001

main90468-08001

9155180614

main91551-80614

9155180632

main91551-80632

91611G0612

main91611-G0612

9415180600

main94151-80600

23 parts on this diagram · 2 diagrams in section
