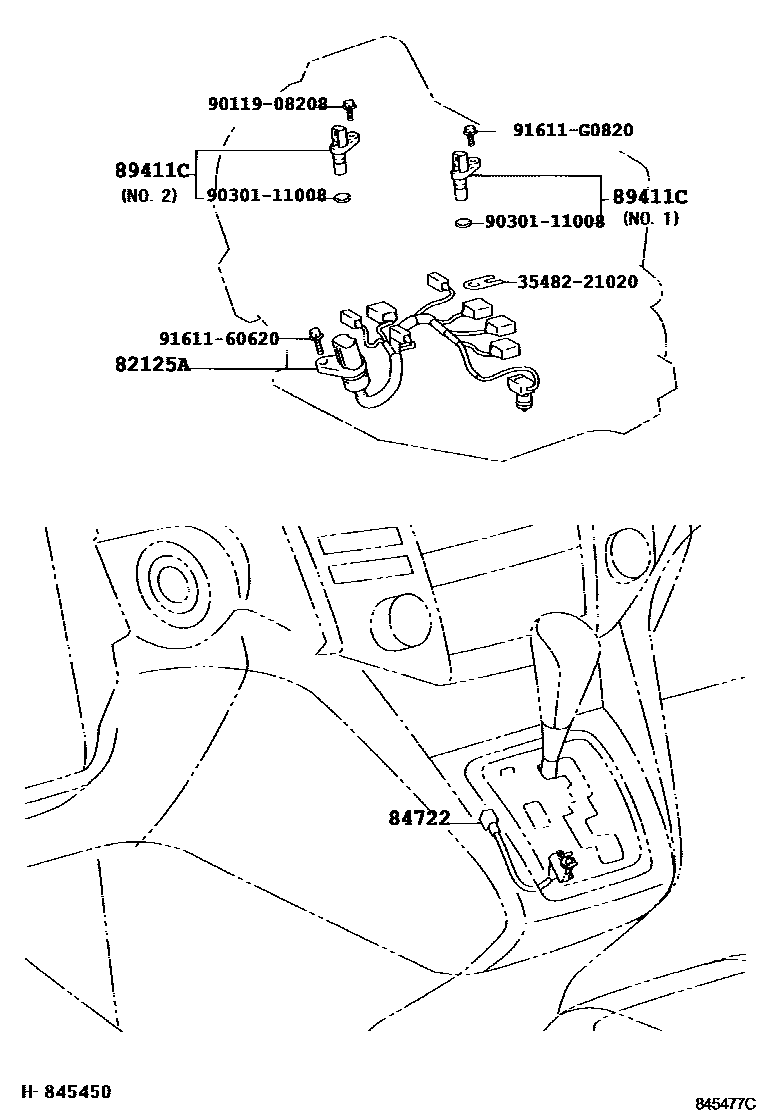

Toyota LEXUS RX330/350(JPP) — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-33060iMCU3#..JPP200302-200704

sub82125-48010

main82125-48010iGSU3#..JPP200705-200812

84722SWITCH, TRANSMISSION CONTROL

main84722-48061

89411CSENSOR, SPEED

main89411-33010iMCU3#..JPP200302-200309

NO.1,TOYOTA

sub89413-24010

main89413-24010iMCU3#..JPP200302-200601

NO.1,AISIN

main89413-24010iGSU3#..JPP200601-200812

NO.1

main89413-48010iGSU3#..JPP200302-200812

NO.2

3548221020VALVE, GOVERNOR

main35482-21020

9011908208

main90119-08208

9030111008

main90301-11008

9161160620

main91611-60620

91611G0820

main91611-G0820

8 parts on this diagram · 1 diagram in section
