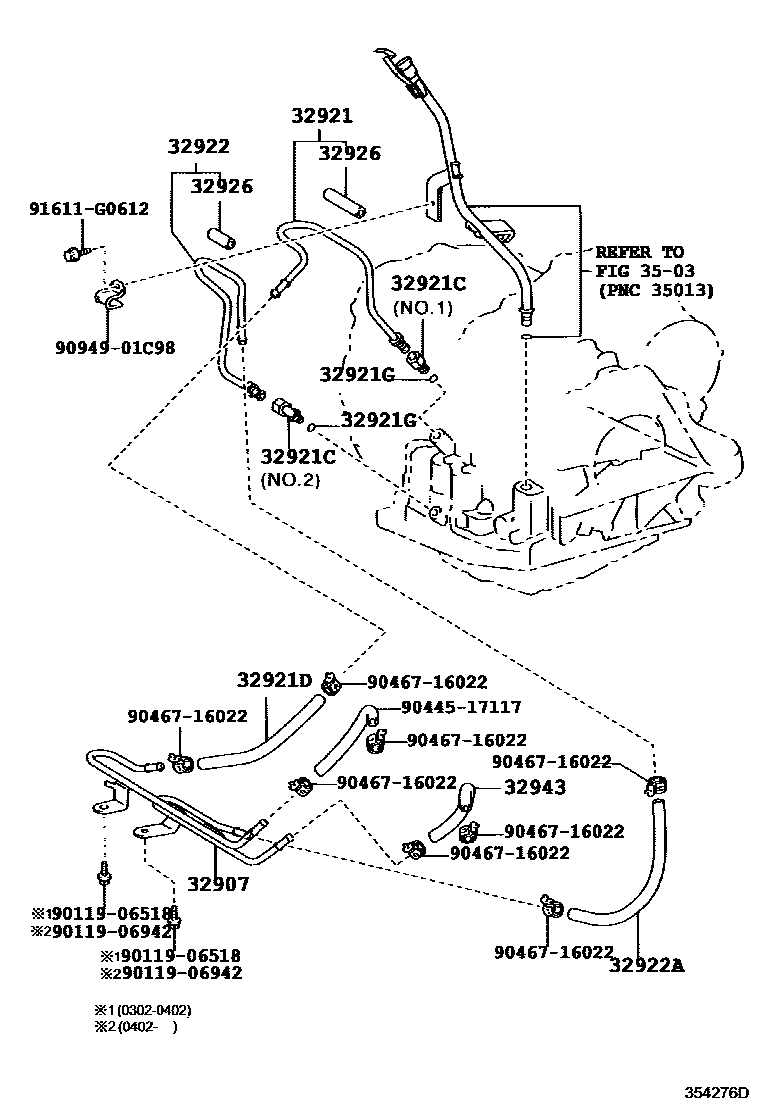

Toyota LEXUS RX330/350(JPP) — OIL COOLER & TUBE (ATM)

0001 1U151E,U151F 0002 1U151E,U151F,AIR COOLING OIL C0003 1U151E,U151F 0004 1U151E,U151F,AIR COOLING OIL C

32907TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2

main32907-48030iMCU3#..JPP200302-200402

sub32907-48031

sub90119-06942

main32907-48031iMCU3#..JPP200402-200601

main32907-48040iGSU3#..JPP200601-200812

32921TUBE, OIL COOLER INLET, NO.1

main32921-48070iMCU3#..JPP200302-200601

main32921-48140iGSU3#..JPP200601-200812

sub32921-48150

32921CUNION(FOR OIL COOLER TUBE)

main90404-16031iMCU3#..JPP200302-200812

NO.1

main90407-16010iMCU3#..JPP200302-200812

NO.2

32921DHOSE(FOR OIL COOLER INLET)

main32943-48080iGSU3#..JPP200601-200703

sub32943-48081

main32943-48081iGSU3#..JPP200704-200812

sub32943-48082

main90445-17172iMCU3#..JPP200302-200601

sub90445-17106

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iMCU3#..JPP200302-200812

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-48080iMCU3#..JPP200302-200601

main32922-48120iGSU3#..JPP200601-200812

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17088iMCU3#..JPP200302-200812

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-26010iGSU3#..JPP200302-200812

L=60,ID=10

main32926-30020iMCU3#..JPP200302-200601

L=35,ID=10

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32930-48010iGSU3#..JPP200601-200812

TOWING PACKAGE-3500LBS,NO.1

main32943-48060iMCU3#..JPP200302-200601

TOWING PACKGE-W(3500LBS),NO.1

3503

9011906518

main90119-06518

9011906942

main90119-06942

9044517117

main90445-17117

9046716022

main90467-16022

9094901C98

main90949-01C98

91611G0612

main91611-G0612

16 parts on this diagram · 4 diagrams in section
