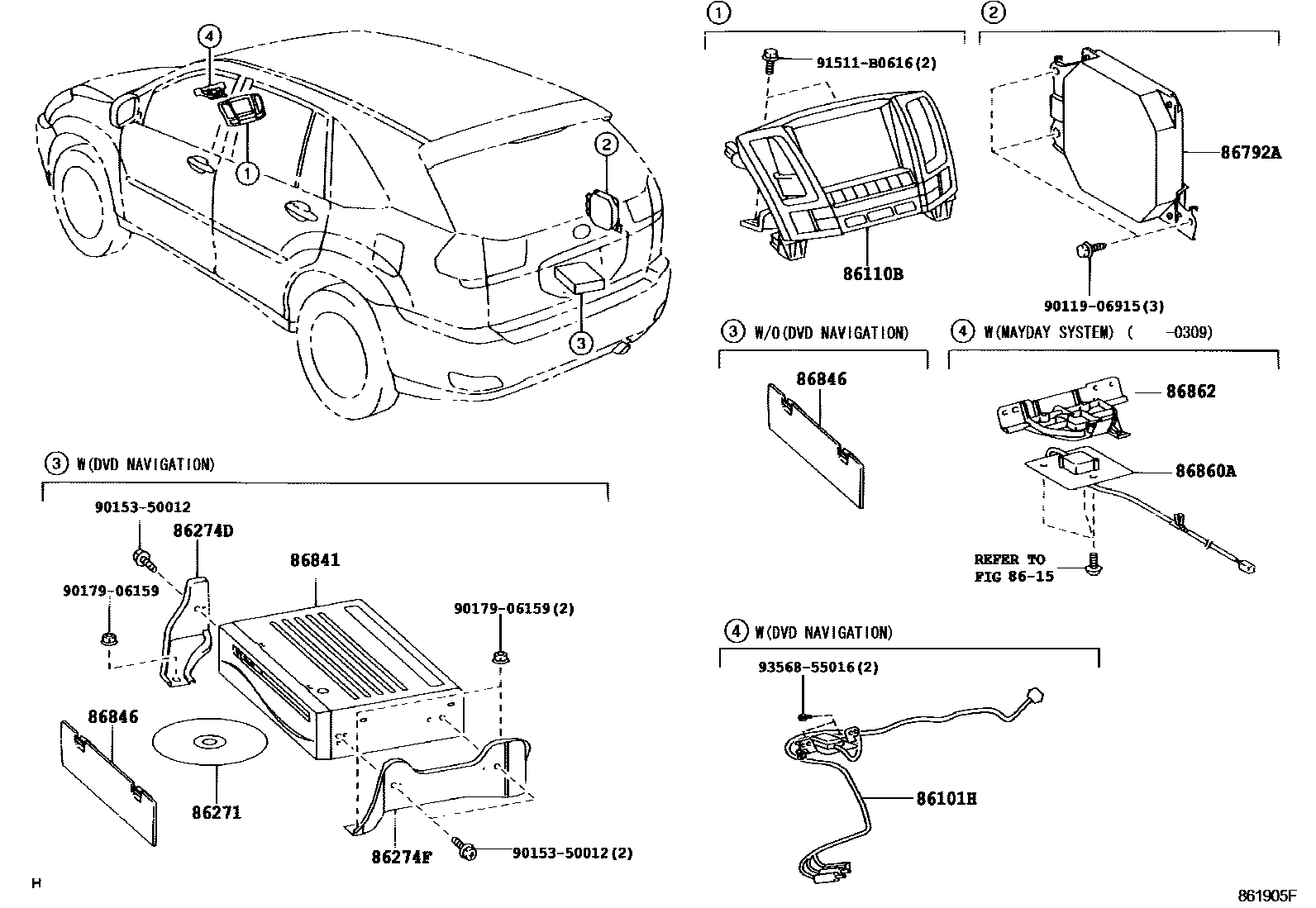

Toyota LEXUS RX330/350(JPP) — NAVIGATION & FRONT MONITOR DISPLAY
86101HCORD SUB-ASSY, ANTENNA
86110BMULTI-DISPLAY ASSY
8615
86271DISC, DISC PLAYER
main86807-0W010
main86807-0W011
main86271-53020
main86271-53021
main86271-53022
main86271-53023
main86271-33031
main86271-33032
main86271-33043
main86271-33044
main86271-33045
86274DBRACKET, DISC PLAYER
86274FBRACKET, DISC PLAYER, NO.2
86792ACONTROLLER, TELEVISION CAMERA
86841COMPUTER, NAVIGATION
main86841-48020
main86841-48030
main86841-33060
main86841-50090
main86841-48100
main86841-48110
86846PLATE, NAVIGATION COMPUTER
86860AANTENNA, NAVIGATION
86862BRACKET, NAVIGATION ANTENNA
main86862-48030
9011906915
main90119-06915
9015350012
main90153-50012
9017906159
main90179-06159
91511B0616
main91511-B0616
9356855016
main93568-55016
16 parts on this diagram · 3 diagrams in section
