Toyota LEXUS RX330/350(JPP) — MAT & CARPET

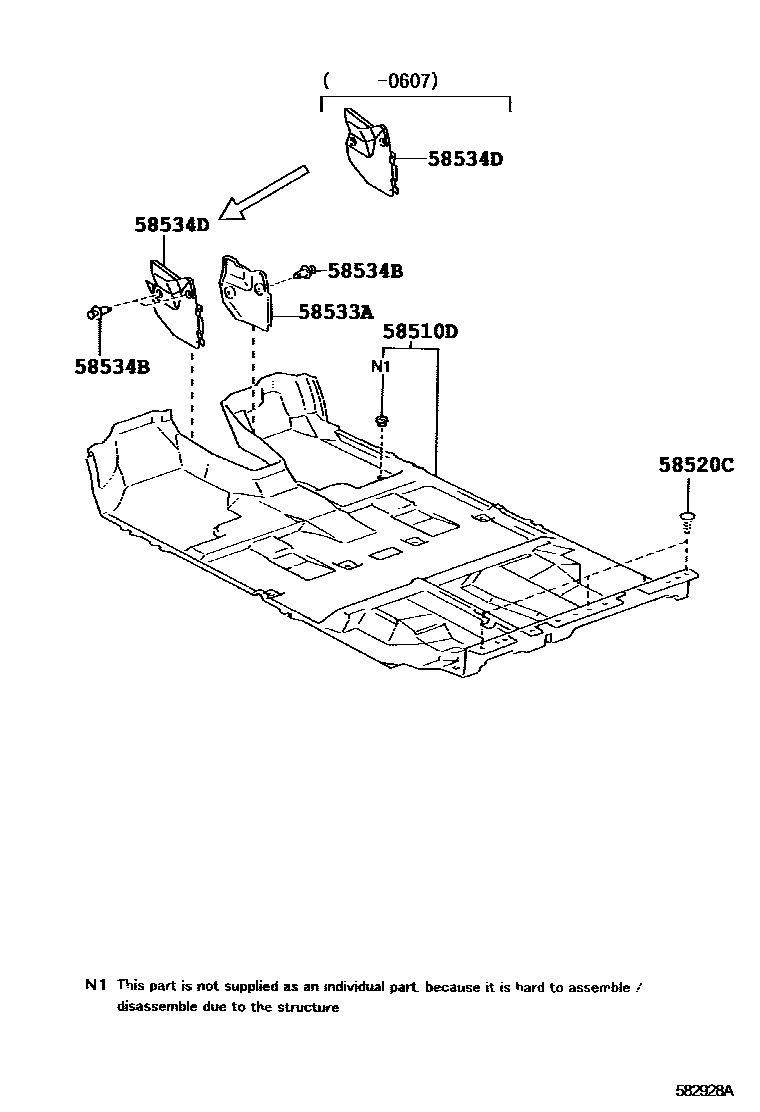

Parts diagram
58510DCARPET ASSY, FLOOR, FRONT
main58510-48090-A0i200302-200601
IVORY,TRIM0#
sub58510-48091
main58510-48090-B0i200302-200601
LT.GRAY,TRIM1#
sub58510-48091
main58510-48090-C0i200302-200601
BLACK,TRIM2#
sub58510-48091
main58510-48091-A0i200601-200812
IVORY,TRIM0#
main58510-48091-B0i200601-200812
LT.GRAY,TRIM1#
main58510-48091-C0i200601-200812
BLACK,TRIM2#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-07049-C0i200302-200601
BLACK,TRIM0#,1#,2#
sub90467-07049
main90467-07049-C0i200601-200812
BLACK
sub90467-07049
58533ACOVER, FLOOR CARPET, CENTER RH
main58533-48030-A0i200302-200303
IVORY,TRIM0#
main58533-48030-B1i200302-200303
LT.GRAY,TRIM1#
main58533-48030-C0i200302-200303
BLACK,TRIM2#
main58533-48060-A0i200303-200812
IVORY,TRIM0#
main58533-48060-B0i200303-200812
LT.GRAY,TRIM1#
main58533-48060-C0i200303-200812
BLACK,TRIM2#
58534BCLIP(FOR FLOOR CARPET CENTER COVER)
main90467-06020i200601-200606
main90467-06020-C0i200606-200812
BLACK
sub90467-06020
main90467-07150i200302-200505
58534DCOVER, FLOOR CARPET, CENTER LH
main58534-48050-A0i200302-200607
IVORY,TRIM0#
sub58534-48051
sub90467-06020
main58534-48050-B0i200302-200607
LT.GRAY,TRIM1#
sub58534-48051
sub90467-06020
main58534-48050-C0i200302-200607
BLACK,TRIM2#
sub58534-48051
sub90467-06020
main58534-48051-A0i200607-200812
IVORY,TRIM0#
sub58534-48051
main58534-48051-B0i200607-200812
LT.GRAY,TRIM1#
sub58534-48051
main58534-48051-C0i200607-200812
BLACK,TRIM2#
sub58534-48051

5 parts on this diagram · 1 diagram in section
