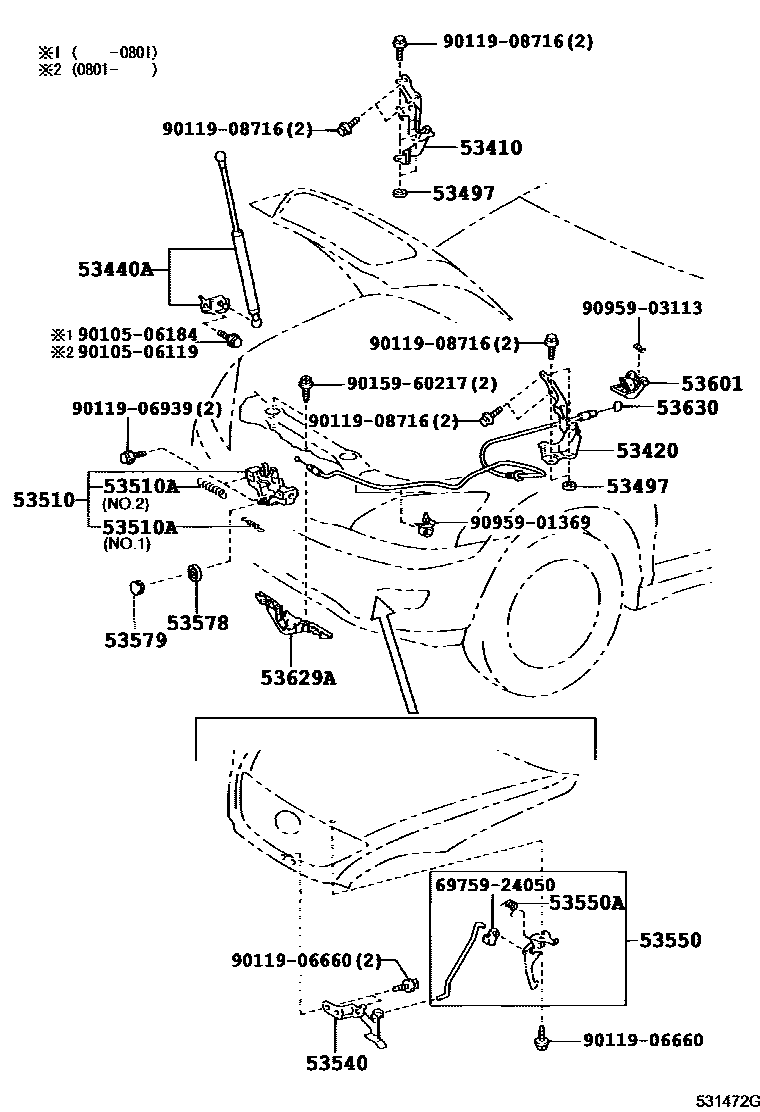

Toyota LEXUS RX330/350(JPP) — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53497PAD, HOOD HINGE, NO.1
T=1.0
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=20.5,NO.1
WD=1.8,CW=18,NO.2
53540LEVER ASSY, AUXILIARY CATCH RELEASE
53550HOOK ASSY, HOOD AUXILIARY CATCH
53550ASPRING, TORSION(FOR HOOD LOCK HOOK)
53578NUT, HOOD LOCK
53579CAP, HOOD LOCK NUT
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53629ACOVER, HOOD LOCK CONTROL CABLE
53630CABLE ASSY, HOOD LOCK CONTROL
6975924050SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-24050
9010506119
main90105-06119
9010506184
main90105-06184
9011906660
main90119-06660
9011906939
main90119-06939
9011908716
main90119-08716
9015960217
main90159-60217
9095901369
main90959-01369
9095903113
main90959-03113
23 parts on this diagram · 1 diagram in section
