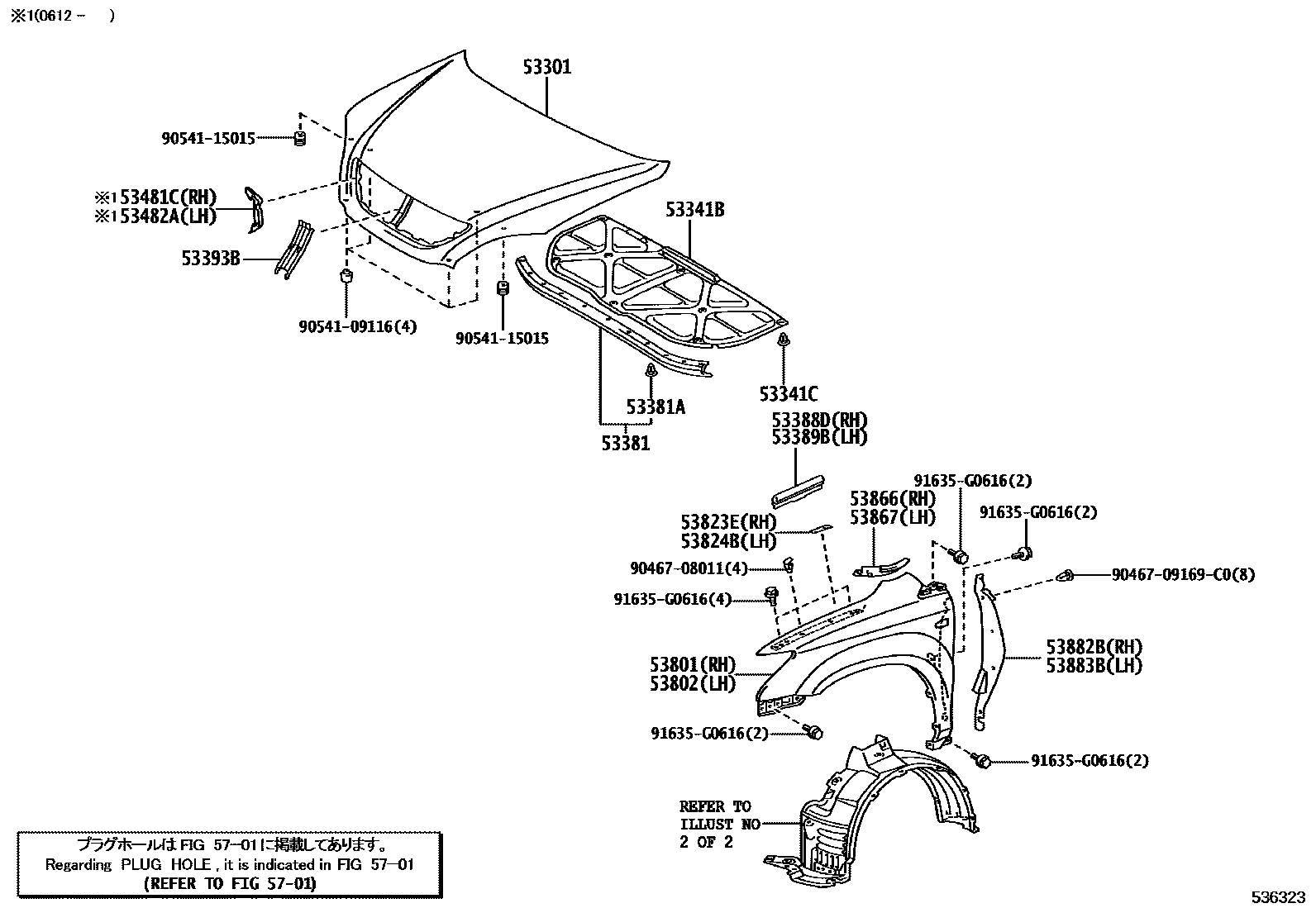

Toyota LEXUS RX330/350(JPP) — HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1FENDER LINER

53301HOOD SUB-ASSY

main53301-48060iMCU3#..JPP200302-200812

53341BINSULATOR, HOOD

main53341-48030iMCU3#..JPP200302-200601

sub53341-48050

main53341-48050iGSU3#..JPP200601-200812

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iMCU3#..JPP200302-200812

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-48030iMCU3#..JPP200302-200312

sub53381-48031

main53381-48031iMCU3#..JPP200312-200812

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iMCU3#..JPP200302-200812

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-48010iMCU3#..JPP200302-200812

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-48010iMCU3#..JPP200302-200812

53393BPROTECTOR, HOOD, FRONT

main53393-48030iMCU3#..JPP200302-200812

53481CBRACKET, HOOD SUPPORT, RH, NO.1

main53481-48020iGSU3#..JPP200701-200812

53482ABRACKET, HOOD SUPPORT, LH, NO.1

main53482-48010iGSU3#..JPP200701-200812

53801FENDER SUB-ASSY, FRONT RH

main53801-48050iMCU3#..JPP200302-200601

main53801-48050iGSU3#..JPP200601-200812

KOREA SPEC

main53801-48050iGSU3#..JPP200601-200812

CANADA SPEC

53802FENDER SUB-ASSY, FRONT LH

main53802-48080iMCU3#..JPP200302-200601

main53802-48080iGSU3#..JPP200601-200812

KOREA SPEC

main53802-48080iGSU3#..JPP200601-200812

CANADA SPEC

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-48010iGSU3#..JPP200612-200812

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-48010iGSU3#..JPP200612-200812

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-48020iMCU3#..JPP200302-200812

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-48030iMCU3#..JPP200302-200812

53882BSEAL, FRONT FENDER, RH

main53882-48020iMCU3#..JPP200302-200812

53883BSEAL, FRONT FENDER, LH

main53883-48020iMCU3#..JPP200302-200812

5701

9046708011

main90467-08011

9046709169C0

main90467-09169C0

9054109116

main90541-09116

9054115015

main90541-15015

91635G0616

main91635-G0616

24 parts on this diagram · 4 diagrams in section
