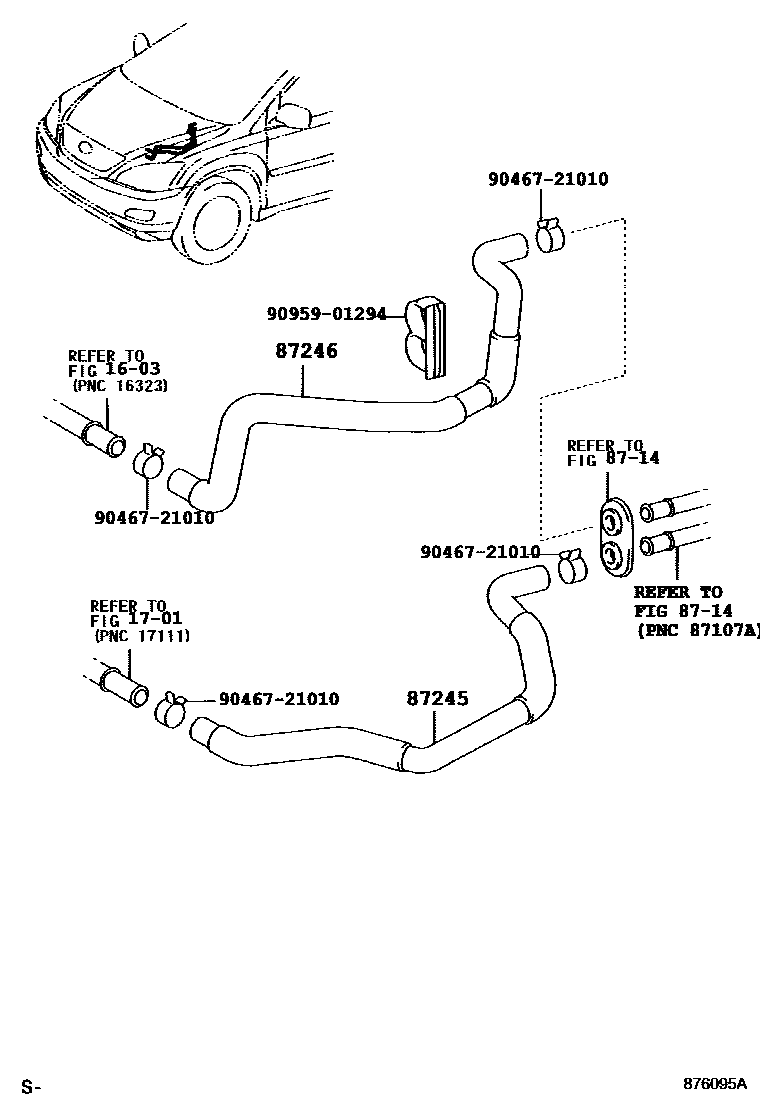

Toyota LEXUS RX330/350(JPP) — HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603

1701

8714

87245HOSE, HEATER WATER, INLET

main87245-48200iMCU3#..JPP200302-200305

sub87245-48201

main87245-48201iMCU3#..JPP200305-200601

main87245-48A40iGSU3#..JPP200601-200812

87246HOSE, HEATER WATER, OUTLET

main87245-48210iMCU3#..JPP200302-200305

sub87245-48211

main87245-48211iMCU3#..JPP200305-200601

main87245-48A50iGSU3#..JPP200601-200812

9046721010

main90467-21010

9095901294

main90959-01294

7 parts on this diagram · 2 diagrams in section
