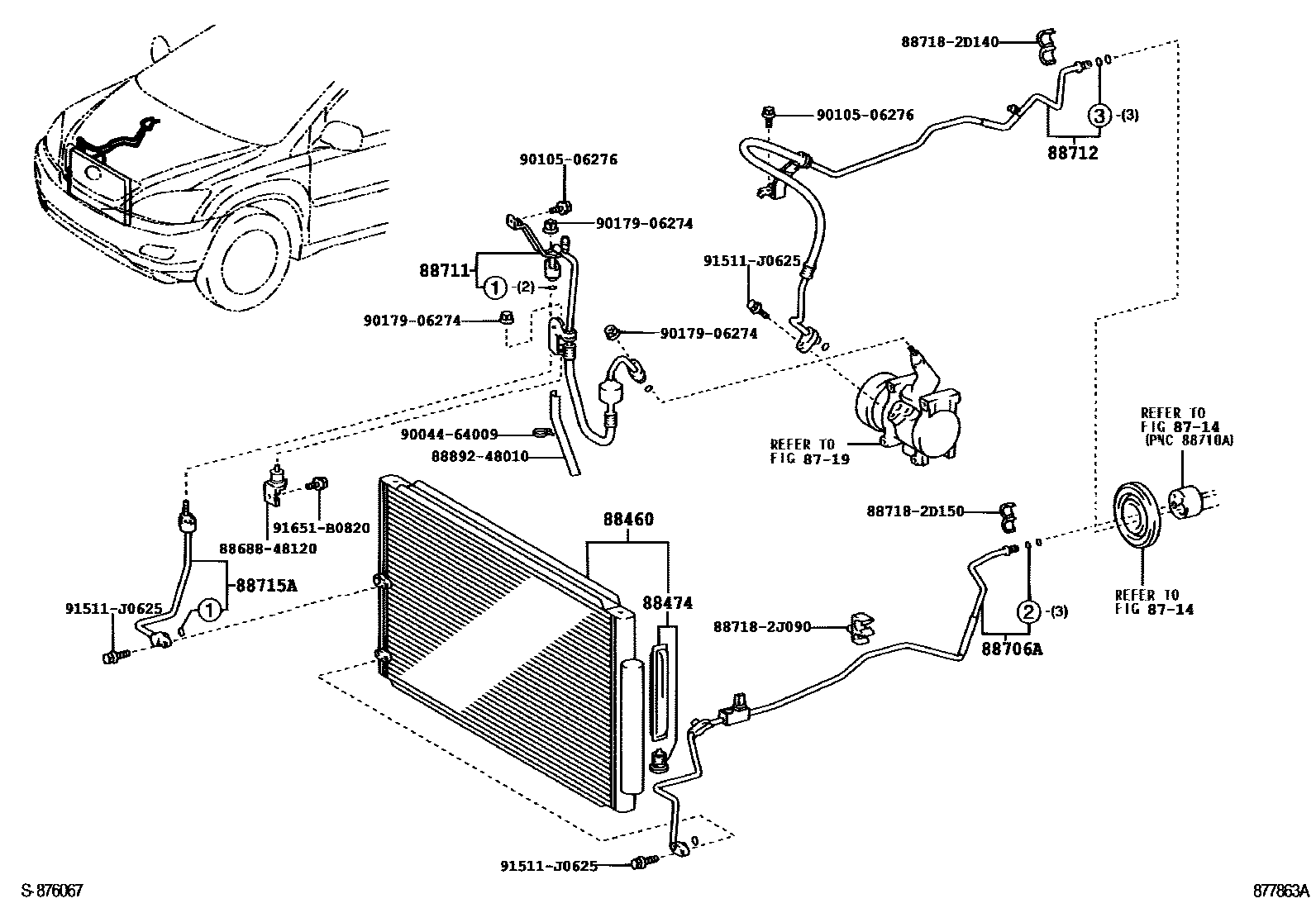

Toyota LEXUS RX330/350(JPP) — HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1O-RING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-48040iMCU3#..JPP200302-200601

sub88460-48041

main88460-48080iGSU3#..JPP200601-200609

sub88460-48081

main88460-48081iGSU3#..JPP200610-200812

88474DRYER, COOLER

main88474-17010iMCU3#..JPP200302-200812

88706ATUBE SUB-ASSY, LIQUID, A

main88710-48150iMCU3#..JPP200302-200305

sub88710-48151

main88710-48151iMCU3#..JPP200305-200601

main88710-48260iGSU3#..JPP200601-200812

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-48080iMCU3#..JPP200302-200310

sub88703-48081

main88703-48081iMCU3#..JPP200310-200401

main88703-48082iMCU3#..JPP200401-200601

main88703-48120iGSU3#..JPP200601-200812

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-48040iMCU3#..JPP200302-200601

main88704-48090iGSU3#..JPP200601-200706

sub88704-48091

main88704-48091iGSU3#..JPP200707-200812

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88705-48040iMCU3#..JPP200302-200601

main88705-48090iGSU3#..JPP200601-200812

8868848120BRACKET, COOLER DIAPHRAGM

main88688-48120

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

887182J090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J090

8889248010BRACKET, COOLER EVAPORATOR MOUNTING

main88892-48010

9004464009

main90044-64009

9010506276

main90105-06276

9017906274

main90179-06274

91511J0625

main91511-J0625

91651B0820

main91651-B0820

18 parts on this diagram · 3 diagrams in section
