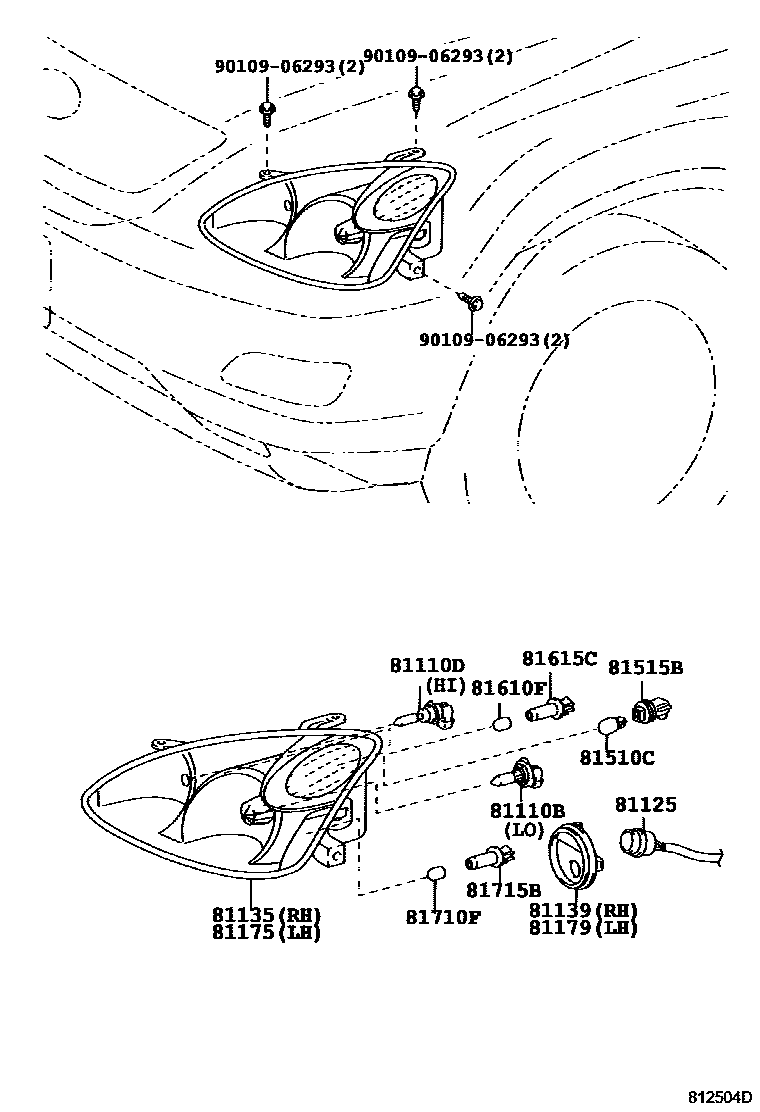

Toyota LEXUS RX330/350(JPP) — HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1DISCHARGE HEADLAMP 0003 1DISCHARGE HEADLAMP & W(AFS) 0004 1DISCHARGE HEADLAMP 0005 1DISCHARGE HEADLAMP & W(AFS) 0006 1

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13075iMCU3#..JPP200302-200812

12V 55W,HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13046iMCU3#..JPP200302-200812

12V65W(SAE),60W(ECE)

81125CORD, HEADLAMP

main81125-48200iMCU3#..JPP200302-200812

81135UNIT ASSY, HEADLAMP, RH

main81130-48200iMCU3#..JPP200302-200812

81139COVER, HEADLAMP SOCKET

main81139-48180iMCU3#..JPP200302-200812

81175UNIT ASSY, HEADLAMP, LH

main81170-48200iMCU3#..JPP200302-200812

81179COVER, HEADLAMP SOCKET

main81179-48180iMCU3#..JPP200302-200812

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011iMCU3#..JPP200302-200812

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iMCU3#..JPP200302-200812

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iMCU3#..JPP200302-200812

12V 5W

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-60046iMCU3#..JPP200302-200808

main90075-60077iGSU3#..JPP200808-200812

81710FBULB, FRONT SIDE MAKER LAMP

main99132-12050iMCU3#..JPP200302-200812

81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP

main90075-60056iMCU3#..JPP200302-200812

9010906293

main90109-06293

14 parts on this diagram · 6 diagrams in section
