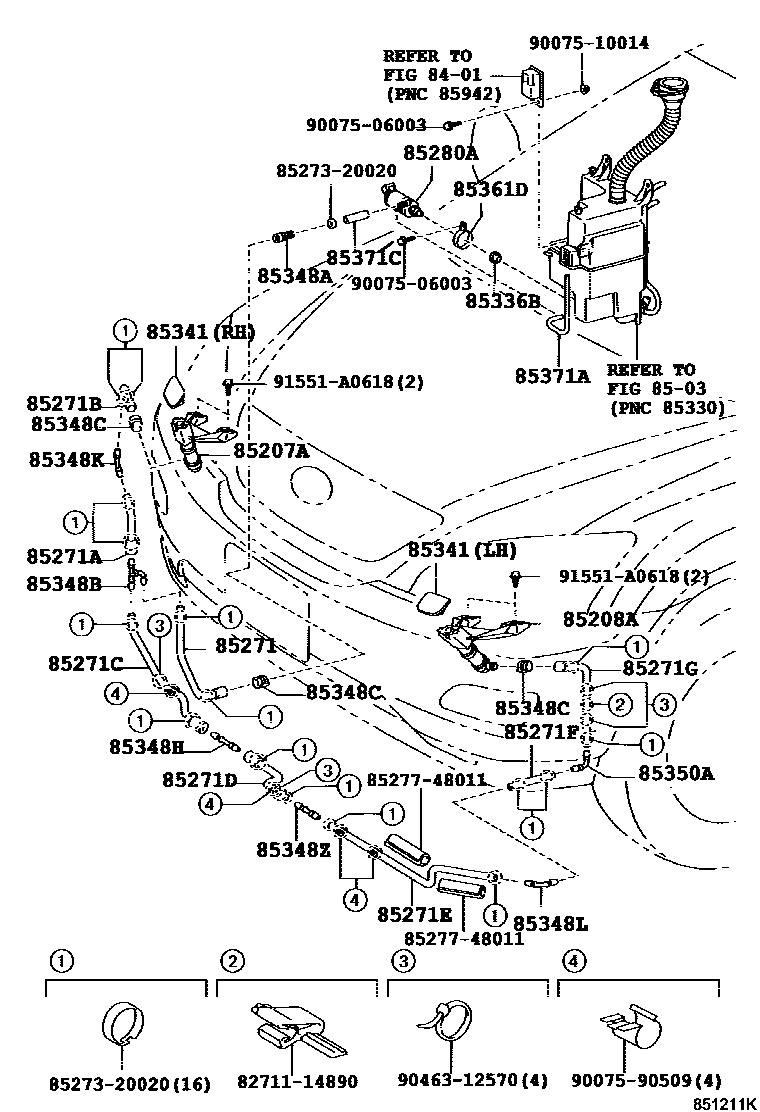

Toyota LEXUS RX330/350(JPP) — HEADLAMP CLEANER

8401

8503

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

85271HOSE, HEADLAMP CLEANER, NO.1

main85275-48010

main85275-42020

main85271-20020

main90075-15025

main90075-15026

main90075-15027

main90075-15029

main85376-14301

85271AHOSE, HEADLAMP CLEANER, NO.2

85271BHOSE, HEADLAMP CLEANER, NO.3

85271CHOSE, HEADLAMP CLEANER, NO.4

85271DHOSE, HEADLAMP CLEANER, NO.5

85271EHOSE, HEADLAMP CLEANER, NO.6

85271FHOSE, HEADLAMP CLEANER, NO.7

main85376-14301iMCU3#..JPP200308-200601

L=75

85271GHOSE, HEAD LAMP

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

85336BPACKING, HEADLAMP CLEANER WASHER

85341NOZZLE, HEADLAMP CLEANER WASHER

main85382-48010

main85381-48040

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

85348HJOINT, HEADLAMP CLEANER HOSE, NO.4

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5

85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3

85361DBRACKET, HEADLAMP CLEANER, NO.2

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

85371CHOSE, HEADLAMP CLEANER, NO.1

8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14890

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

8527748011HOSE, HEADLAMP CLEANER, C

main85277-48011

9007506003

main90075-06003

9007510014

main90075-10014

9007590509

main90075-90509

9046312570

main90463-12570

91551A0618

main91551-A0618

34 parts on this diagram · 1 diagram in section
